Product Description

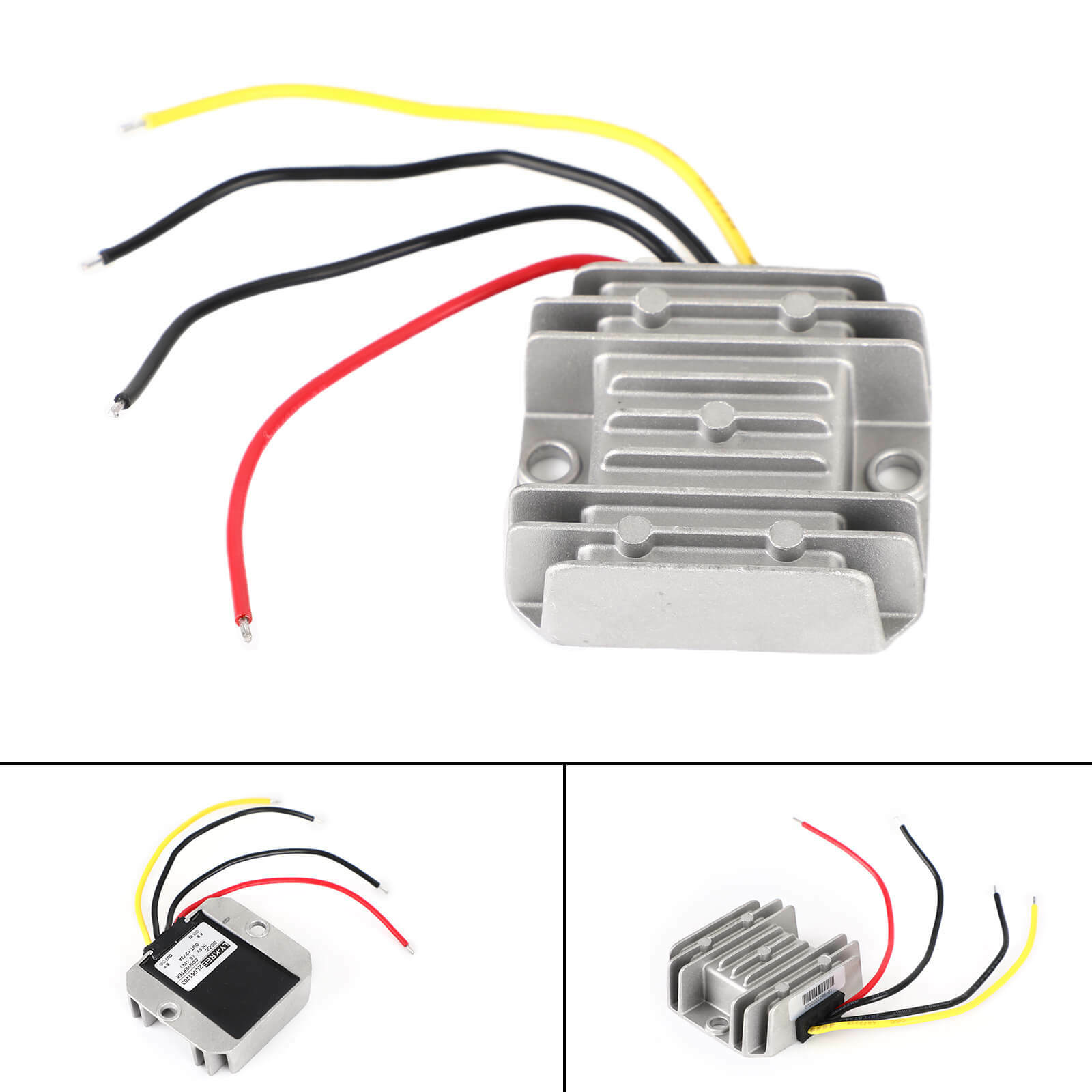

Waterproof Durable DC 6v to 12v Step up Converter Boost Voltage Regulator Module
Feature:
1:IP67 waterproof and shockproof design, suitable for different outdoor harsh environment.
2:High quality aluminum shell, durable for long time use.
3:With over-current, over-voltage, over-temperature and short circuit protection, reliable multi-protection design to enhance your using safety.
4:Ultra-thin and compact size, easy to install and convenient to carry around.
5:Widely used in car stereos, radios, walkie-talkies to monitor, LED display, car for children, LCD TV, electric fans, solar power, photovoltaic panels, electrical motors and industrial equipment.
Specifics:
Condition: 100% Brand New
Input voltage: DC 6V
Input voltage Range: 5V - 11V
Output voltage: 12V
Output Current: 3A
Output power: 36W
Continuous output current: 3A
Conversion efficiency: >85%
Working temperature: -40 to +85 �/span>

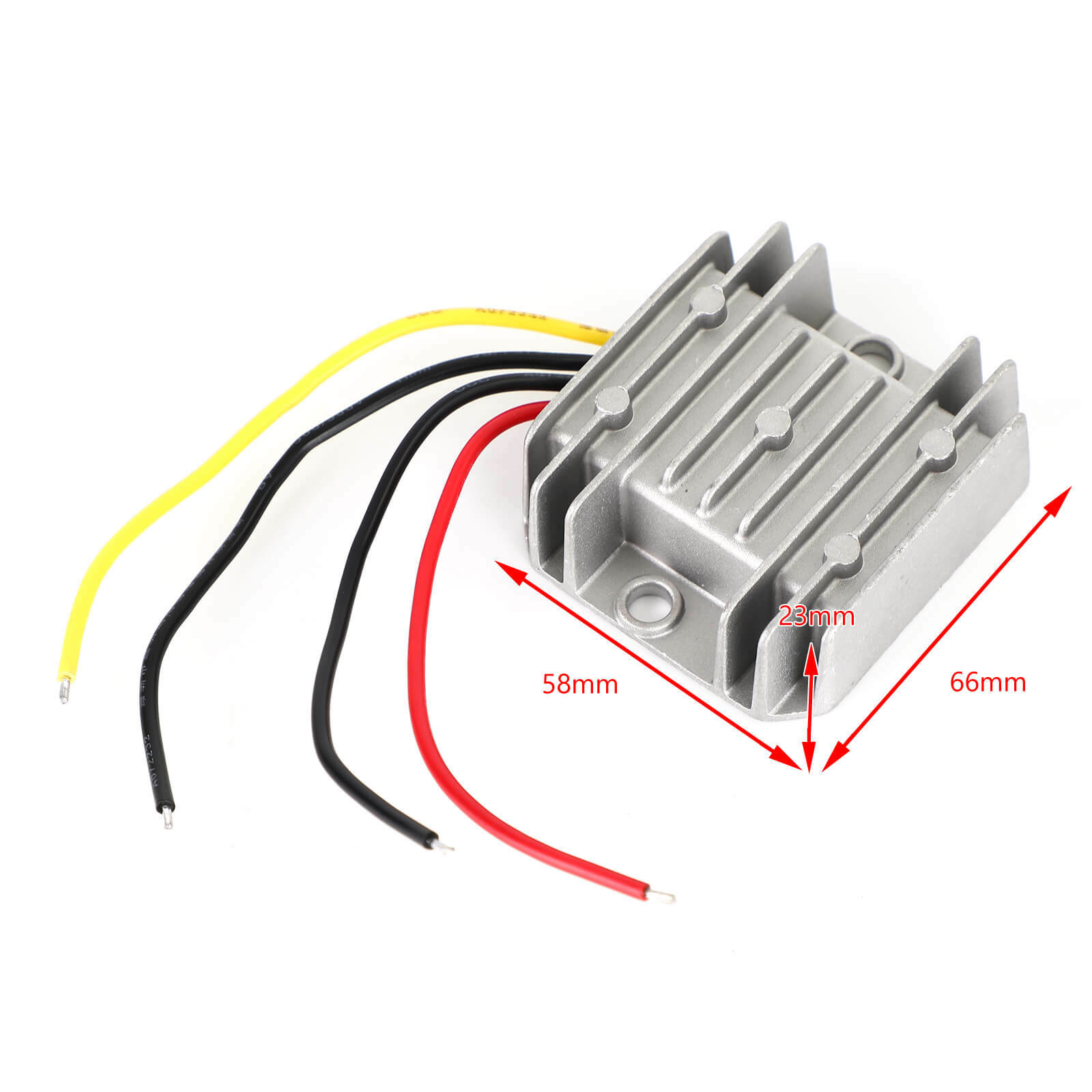

Size: 66 x 58 x 23 mm/2.60inches*2.28inches*0.91inches
Weight:approx.100g
Wiring instruction:
Input side: red wire +, black wire -
Output side: yellow wire +, black wire -
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
5.Please allow 1-3mm difference due to manual measurement.
Package Included:
1x DC/DC Converter Regulator
