Product Description

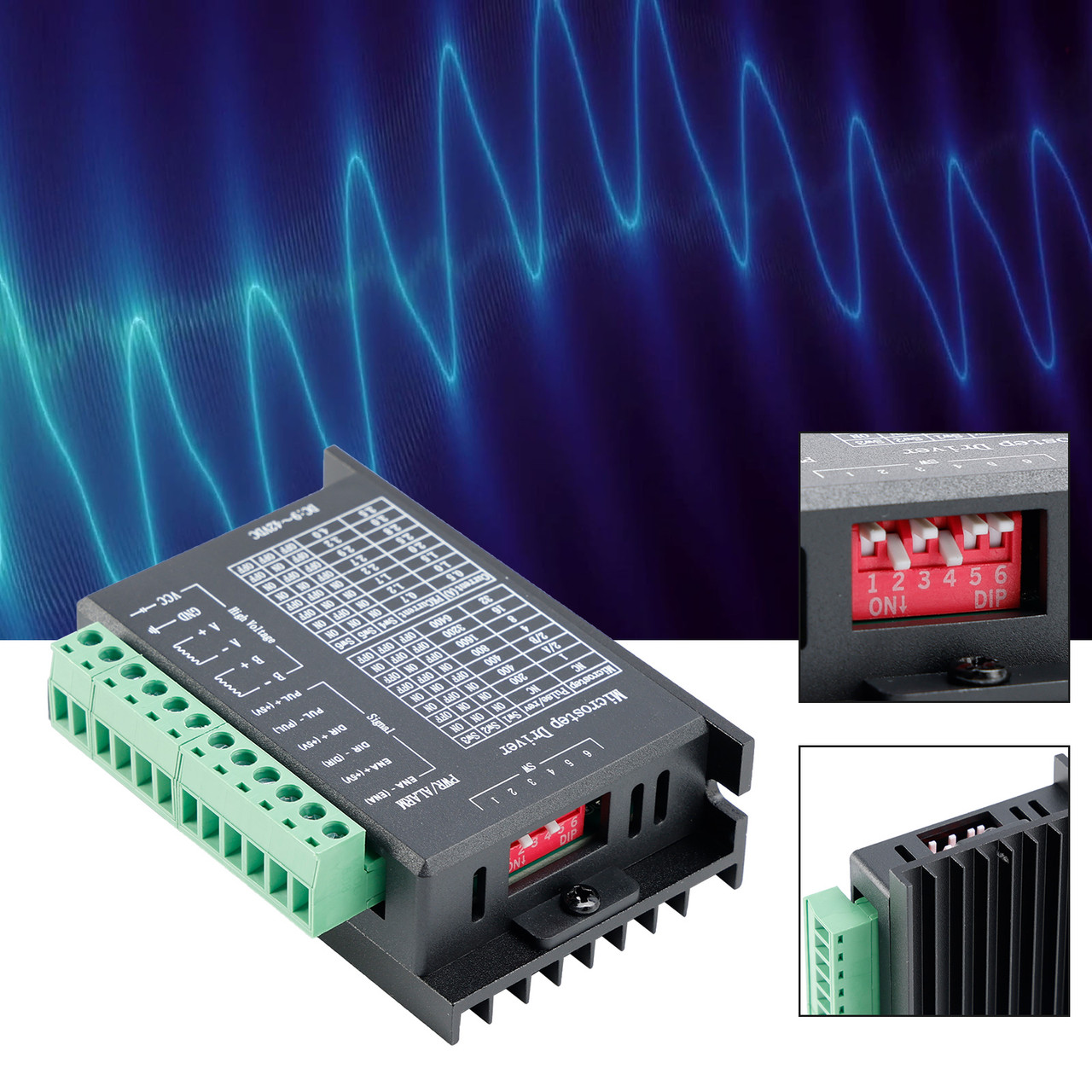

TB6600 Digital Stepper Motor Driver Board 4A 9~40V DC For Nema17 Nema 23 Nema 34
Feature:
1: This drive is an upgraded version TB6600, the highest segments to 32, fit for high subdivision applications.
2: Applicable stepper motor: For 42(Nema17),57(Nema23),86(Nema34)mm Stepper motors.
3: H-bridge bipolar constant phase flow driven,eight output current optional, the maximum output current: 4.0A.
4: 6 subdivision modes available,up to 32 segmentse,the input signal high-speed optical isolation.
5: Common anode single pulse interface standard,offline hold function.
6: Can drive 4, 6 and 8 Lead two-phase, four-phase stepper motor.
7: Provides energy saving semi-automatic current lock function.
8: Semi-enclosed enclosure for harsher environments,Built-in temperature protection and overcurrent protection.
Specifics:
Condition: 100% Brand New
Signal input: single ended, pulse / direction
Subdivision optional: 1/2/4/8/16/32 subdivision
Output current: 0.5A-4.0A
Input voltage: 9-42VDC (recommends 12-30V)
The current is automatically halved at rest

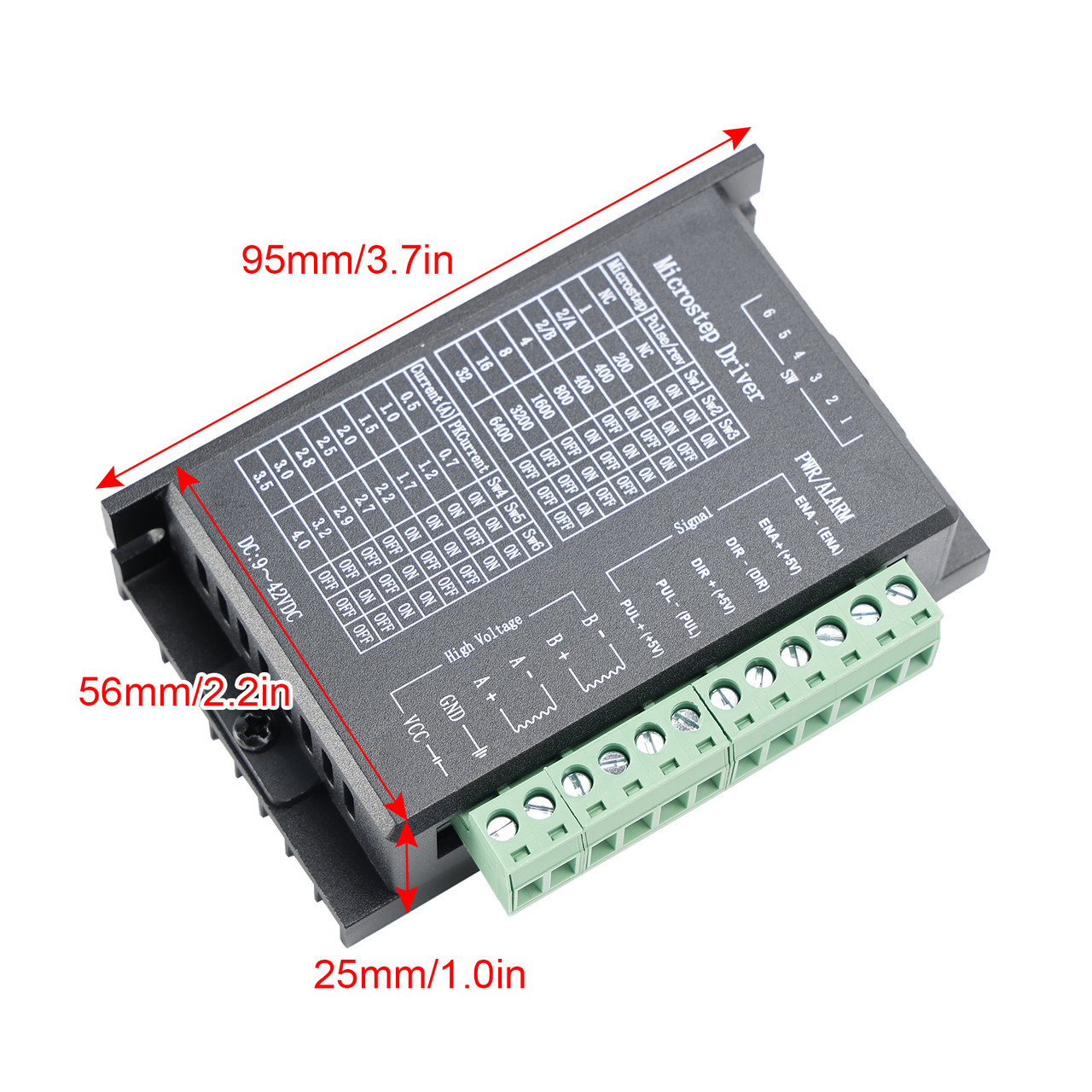

Dimensions: 95*56*25mm/3.7*2.2*1.0 inch
Note:
1. Please allow 1-3mm difference due to manual measurement.
2. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package Included:
1 X Stepper Motor Driver
