77mm Cylinder Piston Gasket Top End Rebuild Kit For Kawasaki KX250F KX 250 F 2004-2008Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

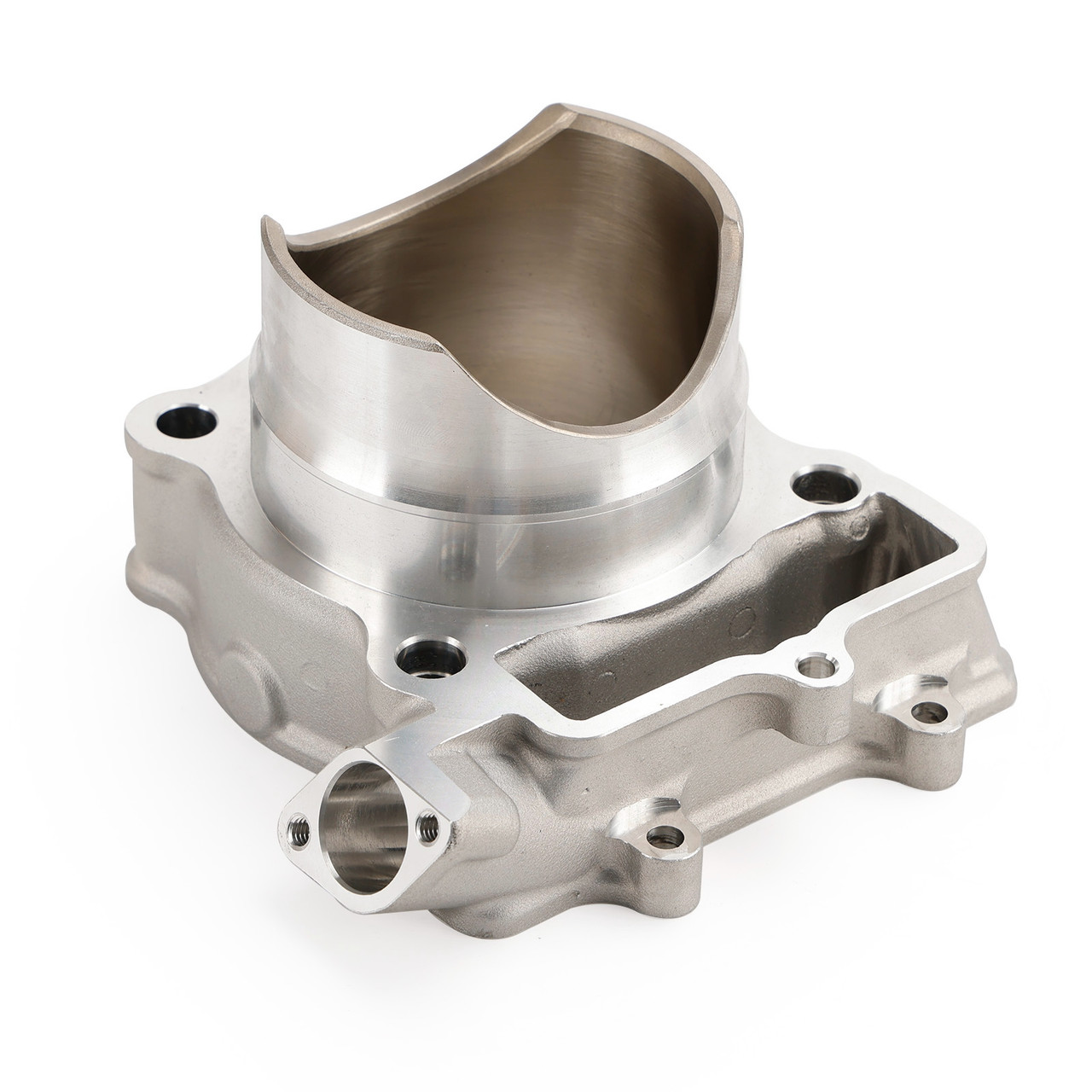

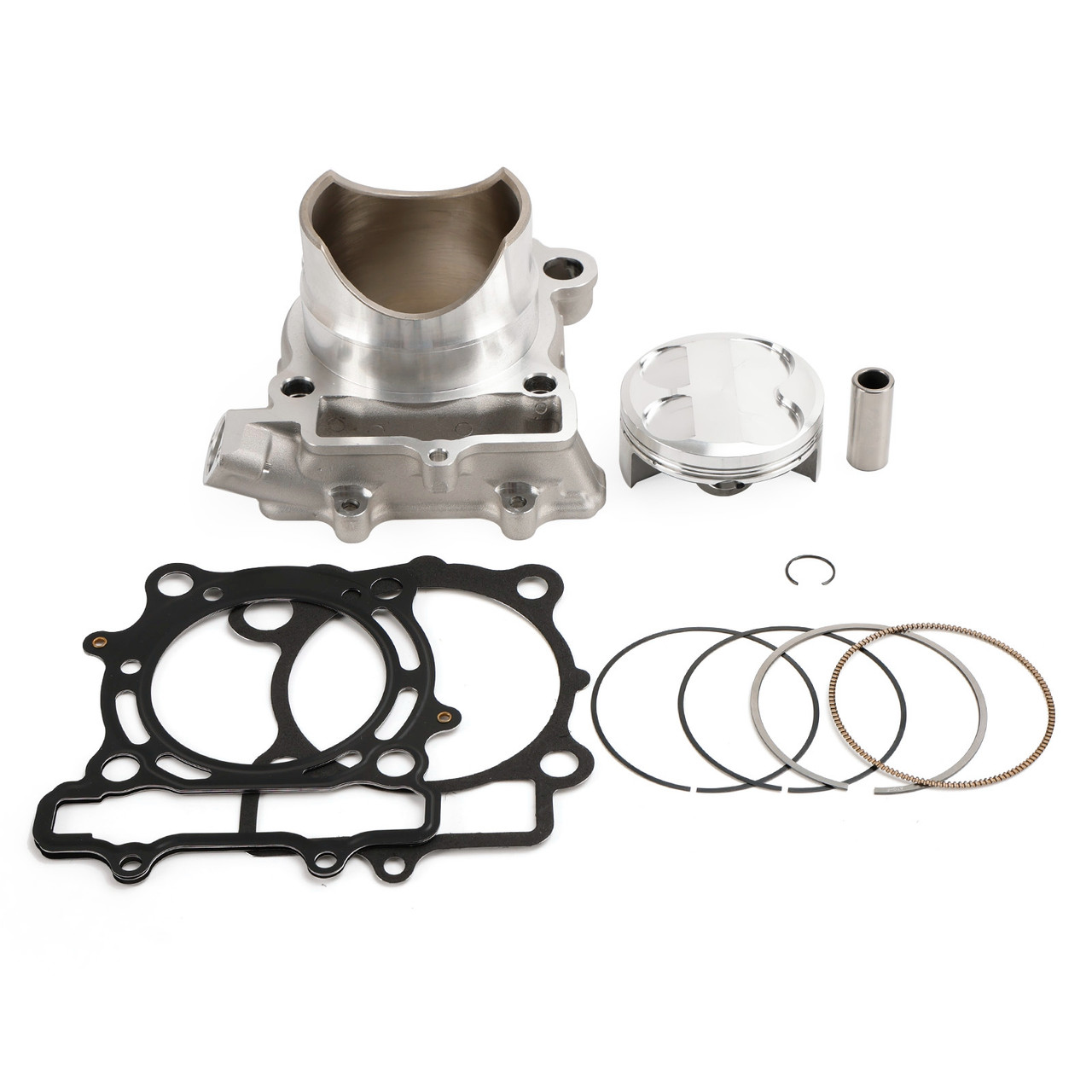

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 77mm x 53.6mm stroke, 16mm steel piston pin.
Compression Ratio: 13.5:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 249cc
Bore Type: Standard Bore
Bore diameter: STD 77mm
Stroke: 53.6mm
Pin diameter: 16mm
Replacement Part Number:
Cylinder: 11005-0005, 11005-0037, 11005-0069, K1100-50005, K1100-50037
Cylinder Base Gasket: 11061-0025, K1106-10025
Cylinder Head Gasket: 11004-0090, K1100-40090
Piston (Std): 13001-0052, K1300-10052, 13001-0088
Pin, Piston: 13002-0018, K1300-20018
Piston Ring Set (Std): 13008-0028, K1300-80028
Circlips, piston: 92033-1161, K9203-31161
Fits Models:
Fit for Kawasaki KX250F (KX250-N1) 2004
Fit for Kawasaki KX250F (KX250-N2) 2005
Fit for Kawasaki KX250F (KX250T6F) 2006
Fit for Kawasaki KX250F (KX250T7F) 2007
Fit for Kawasaki KX250F (KX250T8F) 2008
Fit for Suzuki RM-Z250 K4 2004
Fit for Suzuki RM-Z250 K5 2005
Fit for Suzuki RM-Z250 K6 2006
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
