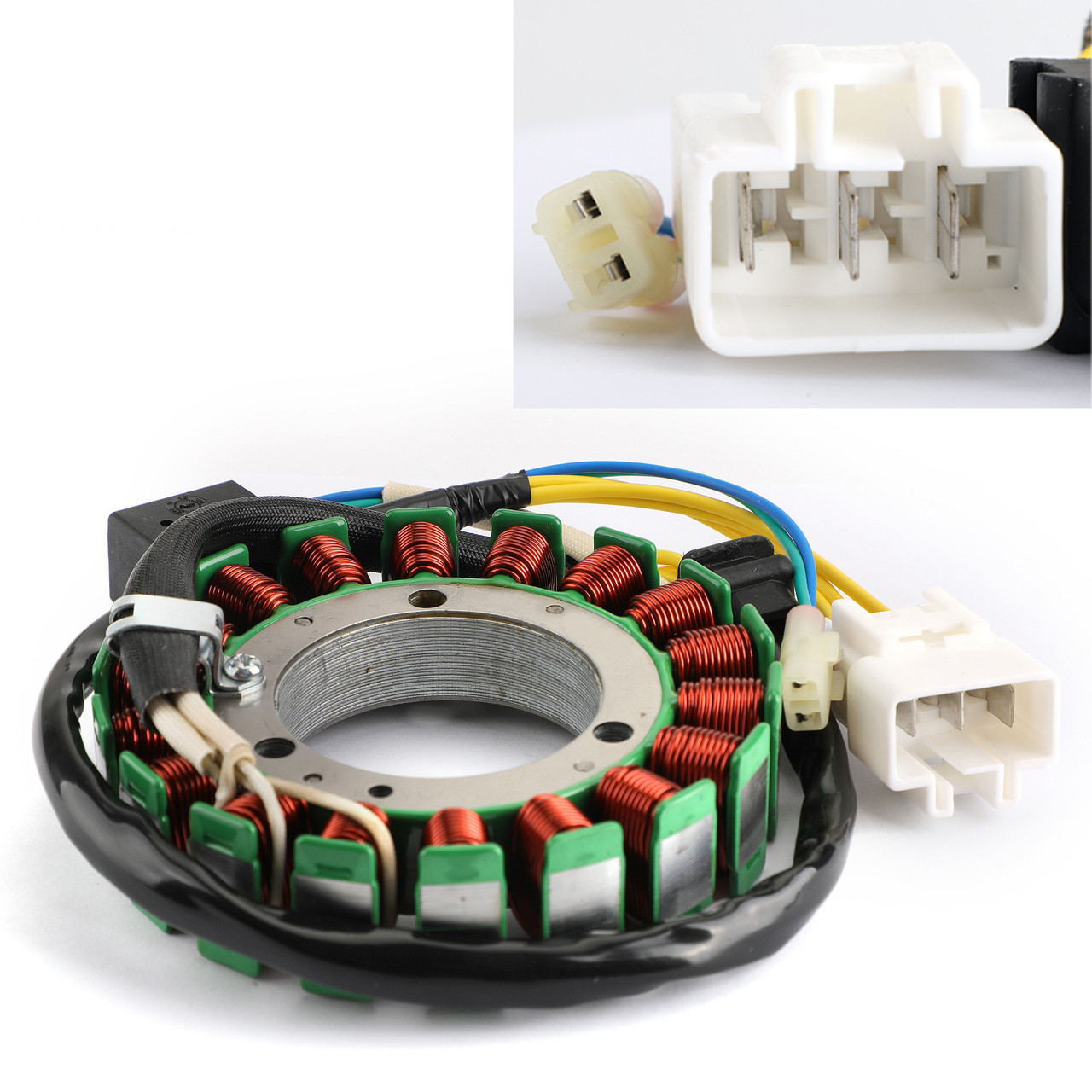

__84223.1663746225.jpg?c=2 "Stator Magneto Coil 18 Poles 12V Coil For CFMOTO CF500 500CC X5 ATV QUAD CF188")
__84223.1663746225.jpg?c=2 "Stator Magneto Coil 18 Poles 12V Coil For CFMOTO CF500 500CC X5 ATV QUAD CF188")
Product Description
FREE fast shipping for USA. International delivery may take longer.
Magneto Generator Engine Stator Coil For CFMoto CF-Moto CF188 A B C 2010-2019 196S B C CF500 X5 500 2011-2015
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:0180-032000
Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 114mm / 4.51"
Thickness : 12mm / 0.50"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+1)
FITMENT:
For CFMoto CF500 2007-2009/2011-2016
For CFMoto X5 500 2011-2015
For CFMoto UFORCE 500 2014-2015
For CFMoto 196S-B£¨U6£©2011-2013
For CFMoto 196S-B£¨X6£©2011-2017
For CFMoto 196S-C 2010-2013
For CFMoto CF188 2010-2019
For CFMoto CF188-A 2010-2015
For CFMoto CF188-B 2010-2013
For CFMoto CF188-C 2011-2015
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
