Product Description
FREE fast shipping for USA. International delivery may take longer.

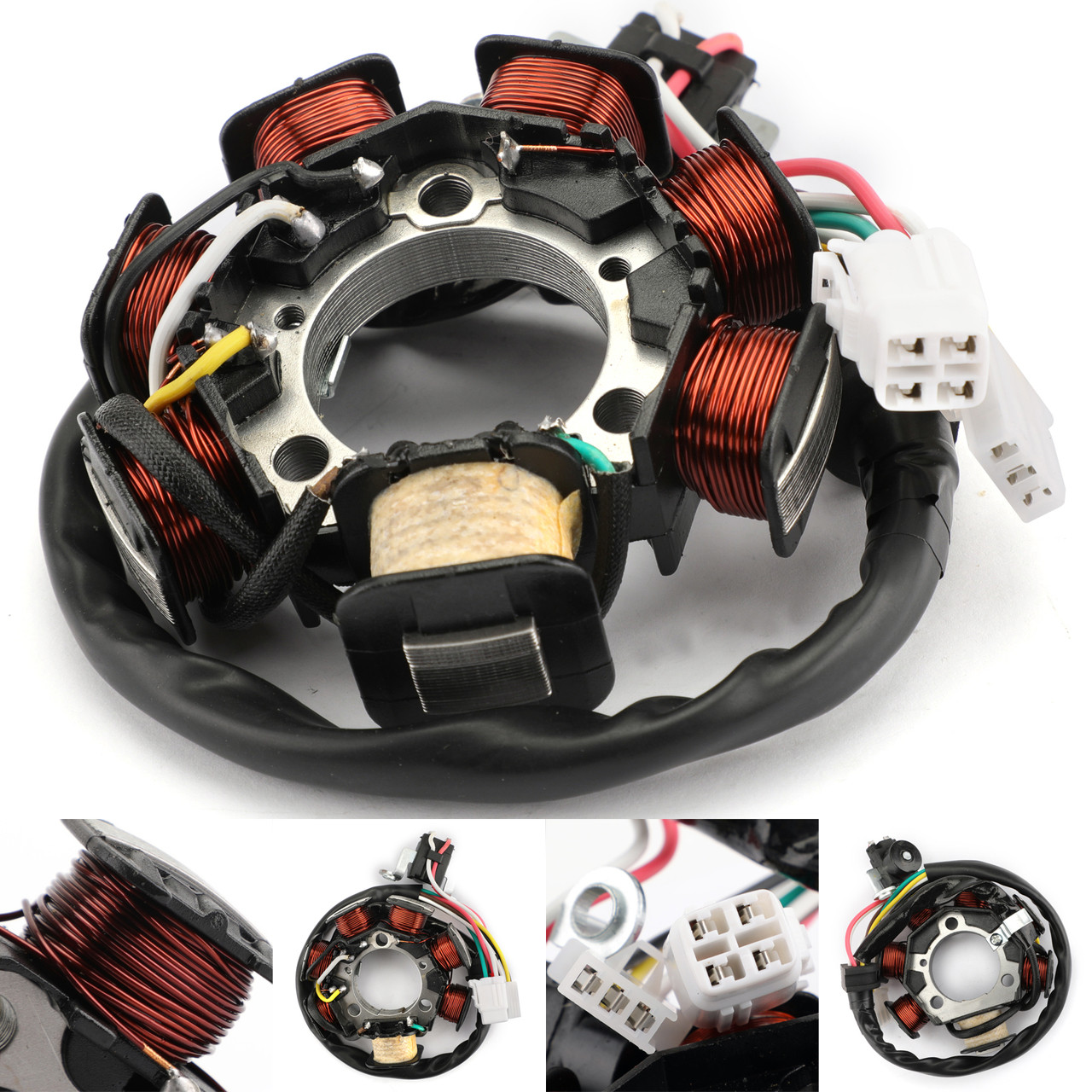

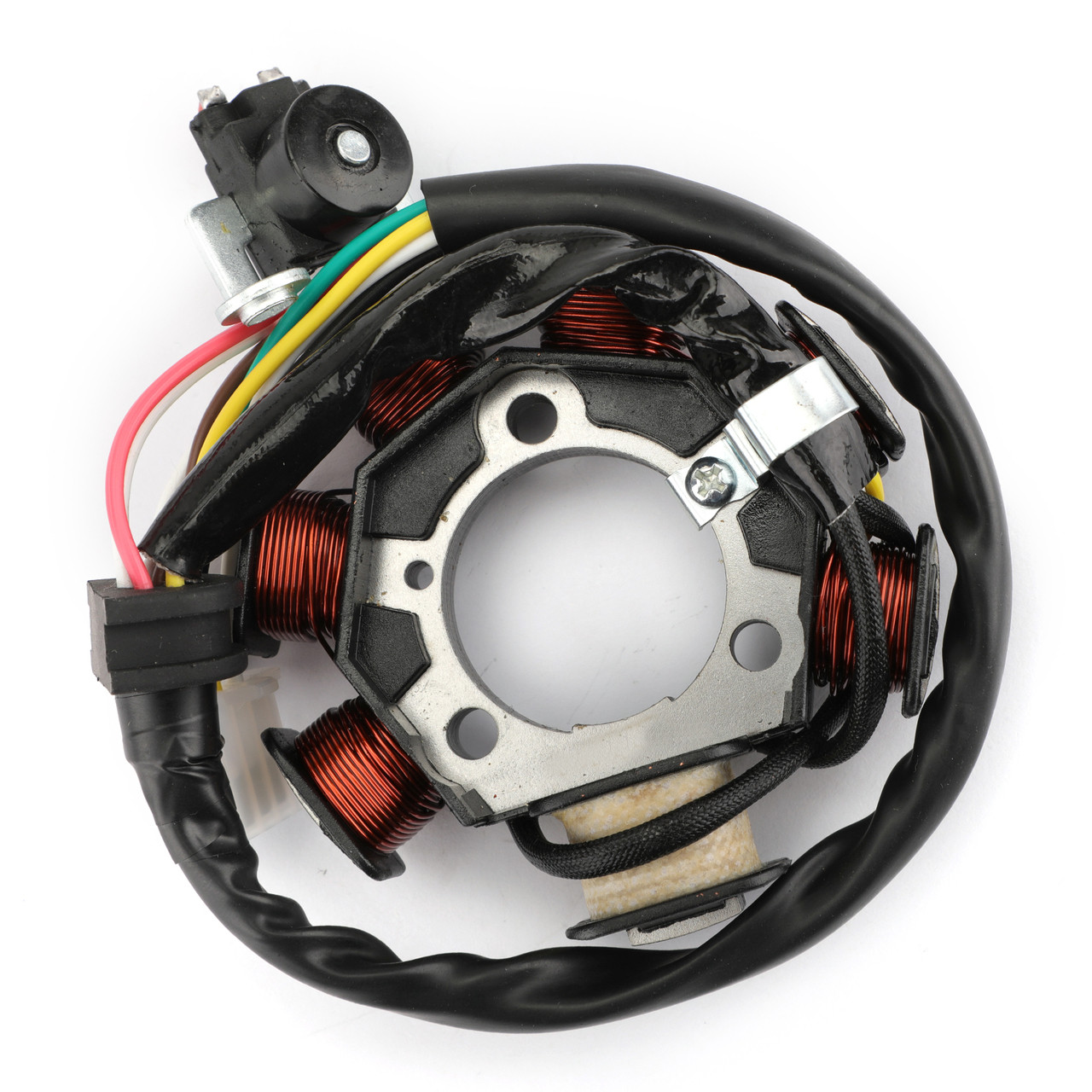

Magneto Generator Engine Stator Coil For Yamaha TTR90 TT-R90 2000-2007 5HN-85510-00-00 5HN-85510-01-00 5HN-85510-10-00
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:
5HN-85510-00-00
5HN-85510-01-00
5HN-85510-10-00
Dimensions :
Interior diameter : 36mm / 1.42"
Exterior diameter : 91mm / 3.58"
Thickness : 24mm / 0.97"
Other specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 2
Number of fixation holes: 3(+1)
FITMENT:
For Yamaha TTR90 TT-R90 2000-2007
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
