Product Description
FREE fast shipping for USA. International delivery may take longer.

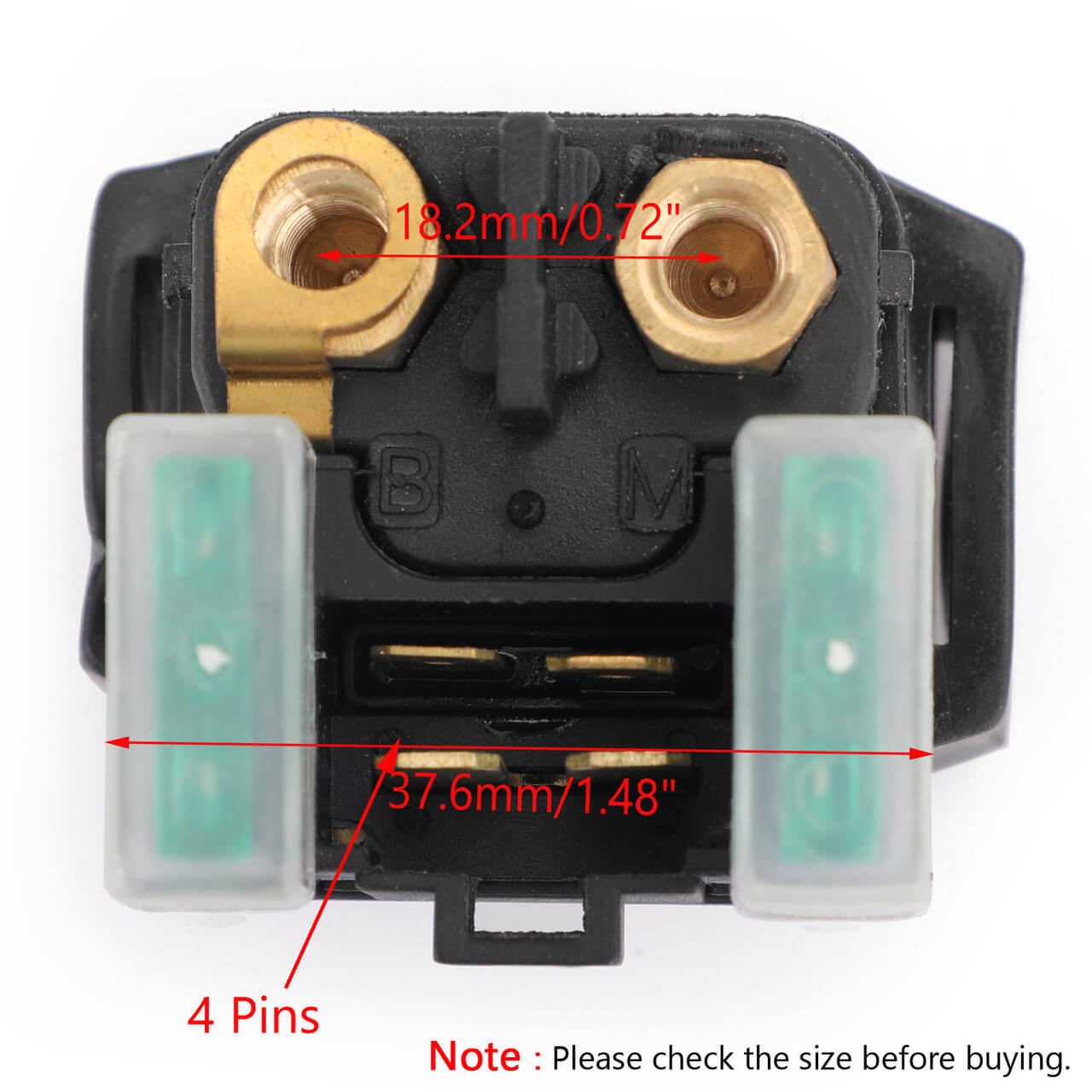

NEW Starter Relay Solenoid Switch For YAMAHA RHINO KODIAK 450 RAPTOR 660 01 02 03 04 05 ATV
FEATURES:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
OEM Replacement Part Number: 5HH-81940-00-00,5HH-81940-01-00,5HH-81940-02-00,
5TJ-81940-10-00,5TJ-81940-11-00,5TJ-81940-12-00
FITMENT:
For Yamaha RAPTOR 660 For YFM660 2001 2002 2003 2004 2005
For Yamaha GRIZZLY 350 For YFM350 2007 2008 2009 ATV moto
For Yamaha GRIZZLY 660 For YFM660 2002-2008 ATV
For Yamaha SXV700 SX VIPER 700 2002 2003 2004 2005 2006 NEW
For Yamaha 1300 FJR1300 FJR13 2003 2004 2005 Motorcycle NEW
For Yamaha FZ400 FZ-1 FZ-6 FZS600
PACKAGE INCLUDED:
1x Starter Relay Solenoid
Installation Instruction NOT Included
TESTING PROCEDURE:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
Shipping:
1. Free shipping
2. Parcel will be delivered 3-8 working day
3. Parcel will delivered via Fedex or USPS
Warranty:
Guarantee Period: 1 Years
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day.
