Product Description
FREE fast shipping for USA. International delivery may take longer.

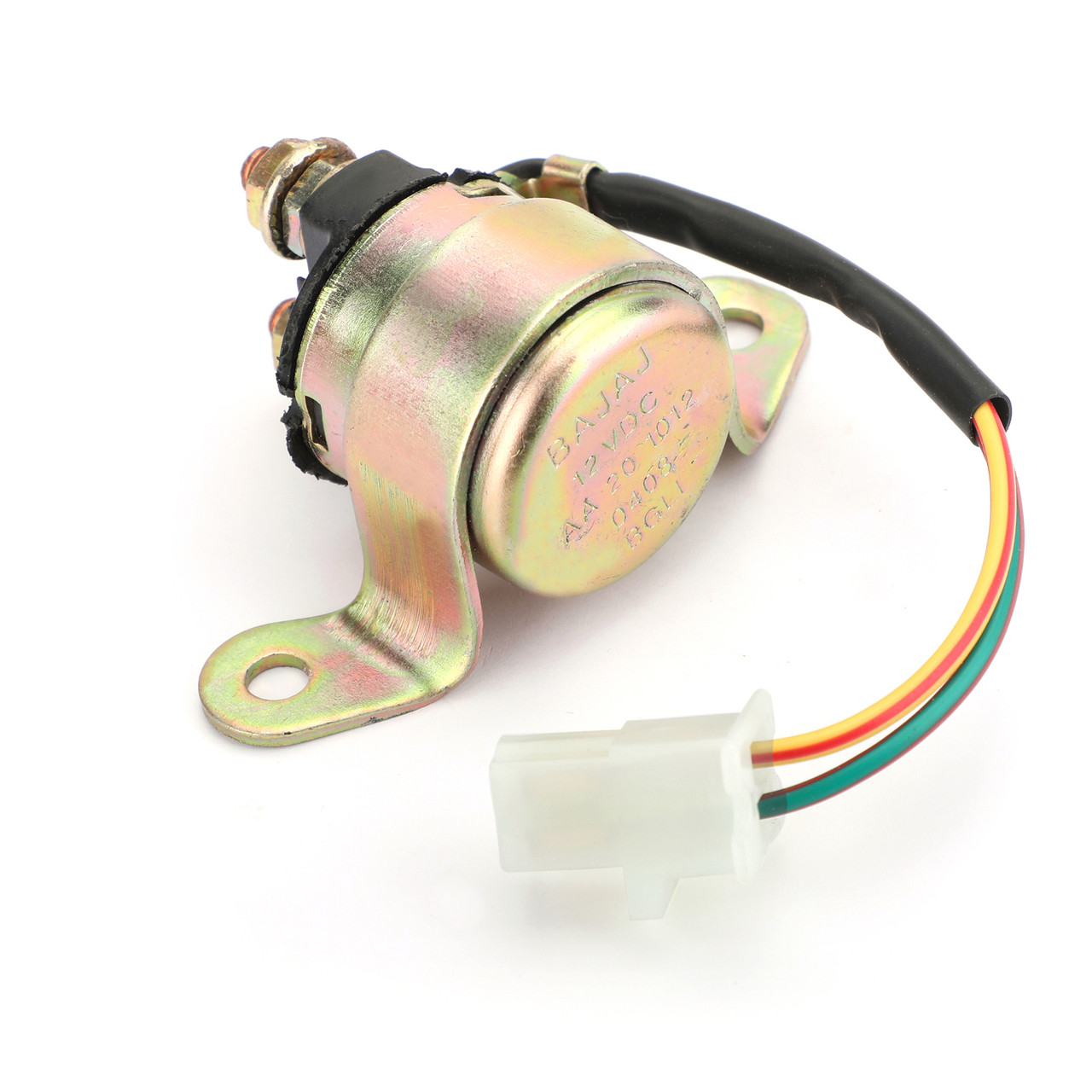

NEW Starter Relay Solenoid Switch For SUZUKI VS800GLV VS 800 GLV INTRUDER 1992-1997
FEATURES:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.
SPECIFICATIONS:

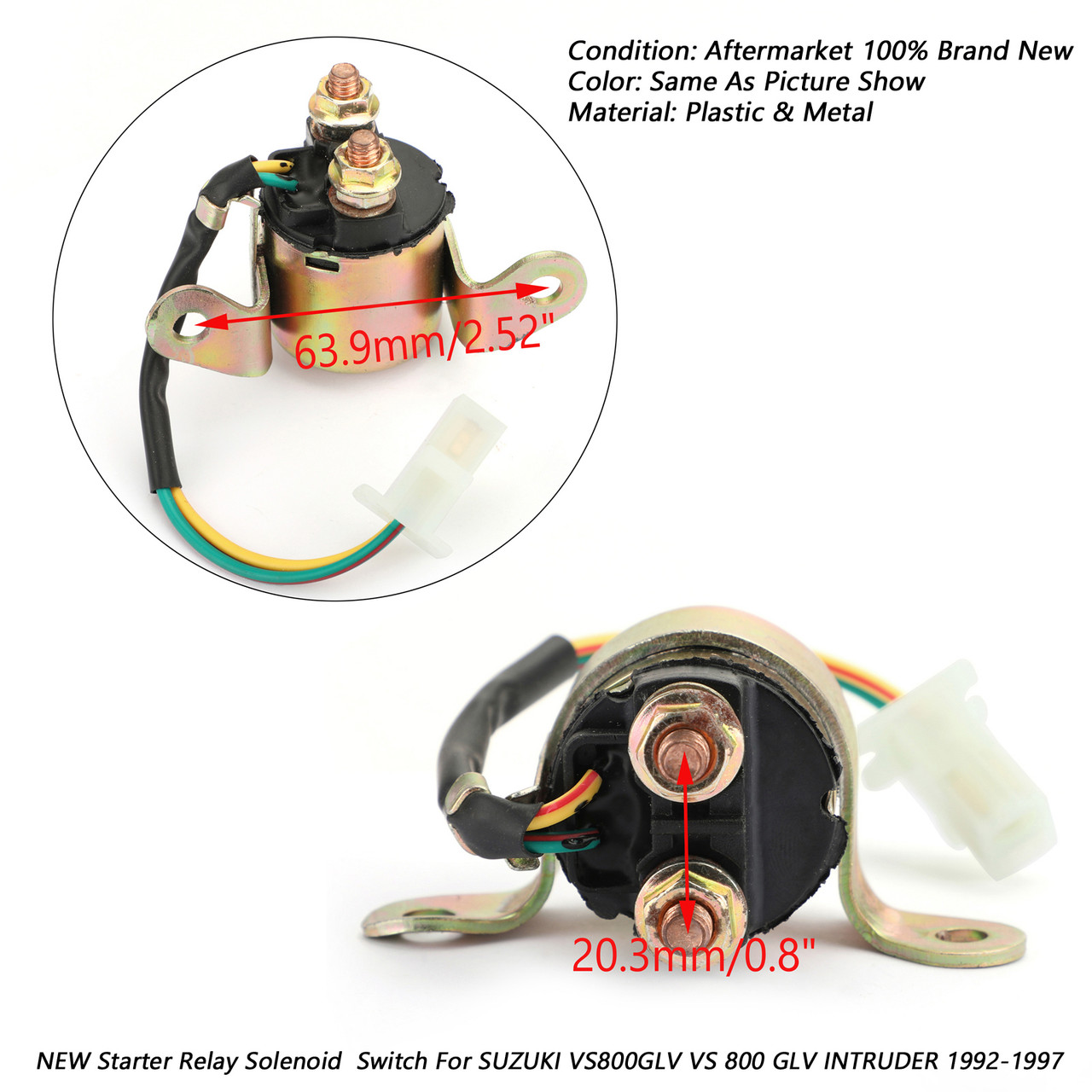

Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
FITMENT:
For BAJAJ
For GN125
For SUZUKI BOULEVARD S50
For SUZUKI VX800 1990 - 1994
For SUZUKI GSX550
PACKAGE INCLUDED:
1x Starter Relay Solenoid
Installation Instruction NOT Included
TESTING PROCEDURE:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
