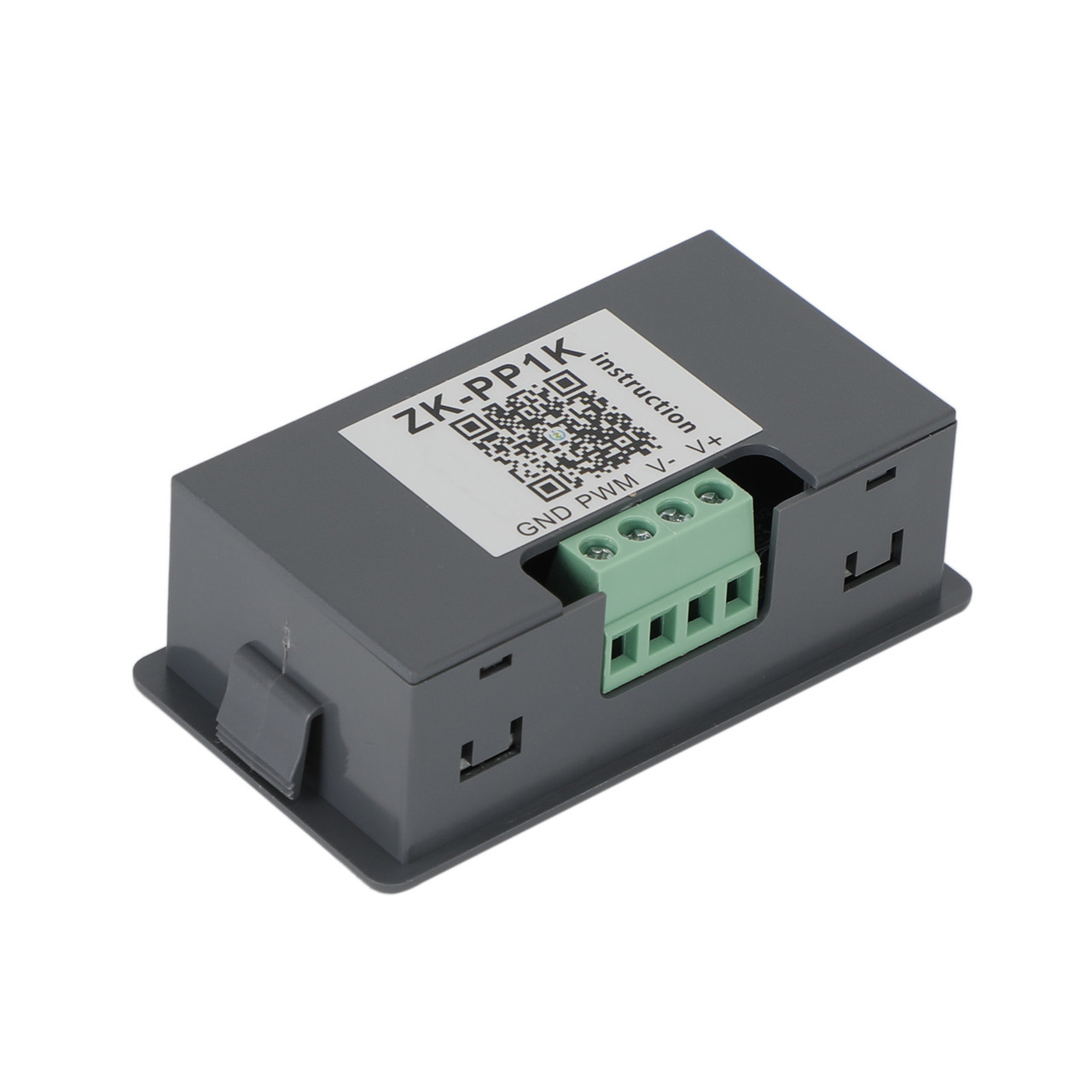

PWM Signal Generator Module Adjustable Pulse Frequency Duty Cycle Square WaveDescription:
PWM signal generator, square wave rectangular wave signal generator
Used to generate a square wave rectangular wave signal, which is supplied to a DC motor or a stepper motor driver, stepper motor, servo motor, electric gripper, robot arm
Combine the driver to realize dimming, speed regulation, control solenoid valve, etc. However, it is not possible to directly drive loads such as electric lights, motors, and solenoid valves
Features:
Two modes can be selected:
PWM mode - frequency (continuous), duty cycle. Note that the number of pulses cannot be set in this mode, and the pulse is always emitted;
PULSE mode - positive pulse width time, negative pulse width time, delayed start time, and adjustable number of pulses.
With start-stop button, external switch can also be used to control output signal ON/OFF.
Wide voltage input 3.3-30V, with anti-reverse protection, 5.08mm terminal wiring
Specifics:
Condition: 100% Brand New
Working voltage: 3.3~30V, with anti-reverse protection
Frequency range: 1Hz~150KHz, accuracy about 1.5%
Duty cycle range: 0-100%, 1% stepping
Number of pulses: 1-9999, or infinite (display '----' stands for infinity)
Delay output time: 0.000s-9999s, the minimum can be set 1ms
Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms
Signal loading capacity: less than 30mA
Output signal amplitude: amplitude is equal to the supply voltage
Product size: 79*43*30mm/3.1*1.7*1.2in
