Product Description

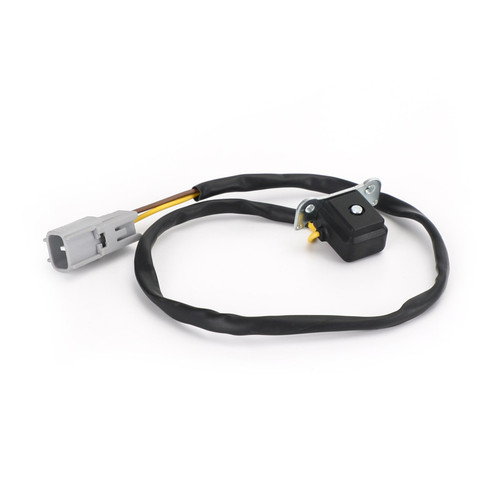

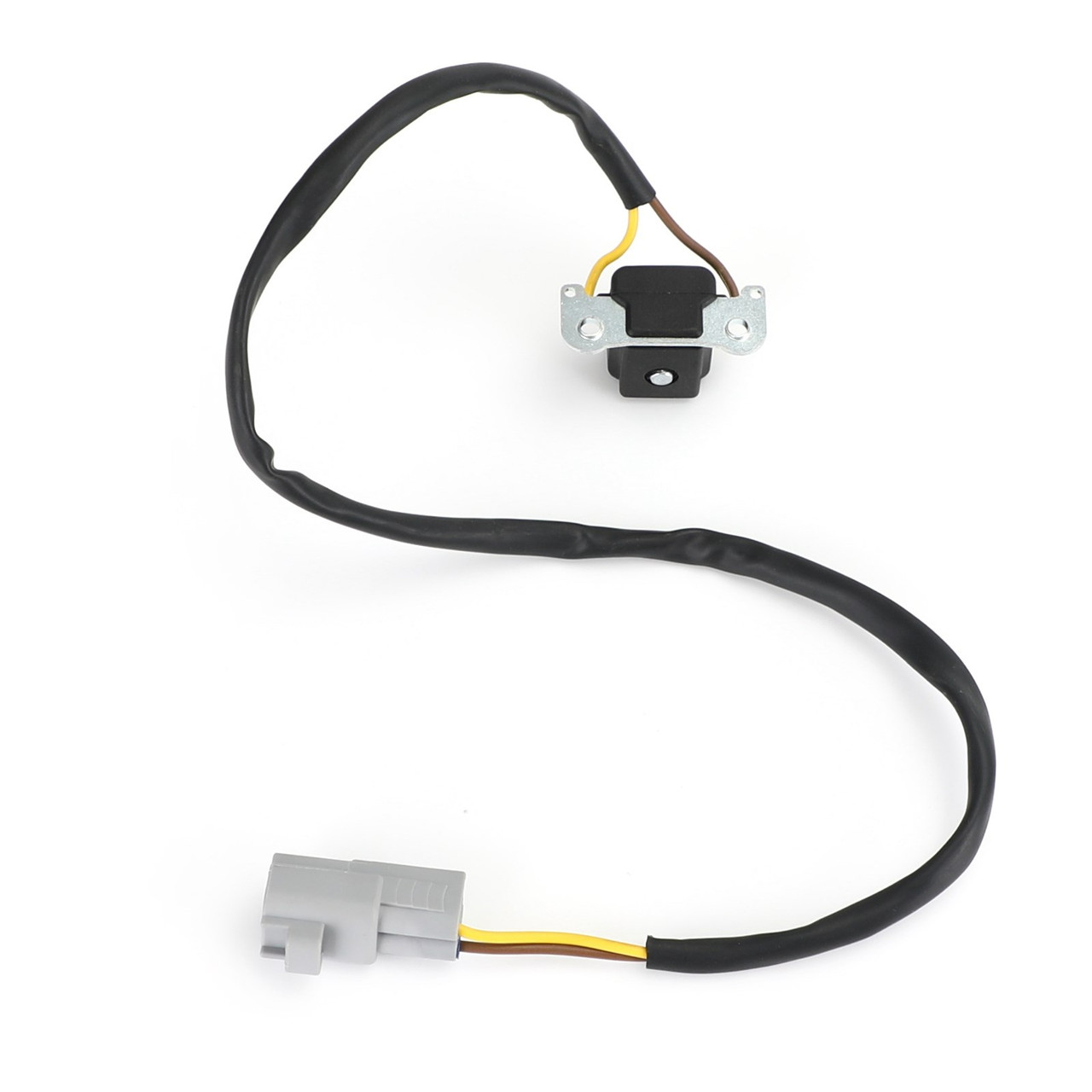

Pick-up Pulsar / Pulse Sensor Fit For Kawasaki KAF620 Mule 3000 3010 3020 4000 4010 2001-2018
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil
Dimensions:
Height: 18mm
Length: 26.5mm
Width: 21.5mm
Bracket center to center: 29mm
Other Specifications:
Number of wires: 2
Number of plugs: 1
Replacement Part Number:
59026-2065
59026-0559
Fitments:
Fit for Kawasaki KAF620 Mule 3000 2001-2008
Fit for Kawasaki KAF620 Mule 4000 2009-2018
Fit for Kawasaki KAF620 Mule 3020 Turf 2001-2003
Fit for Kawasaki KAF620 Mule 3010 4X4 2001-2008
Fit for Kawasaki KAF620 Mule 4010 4X4 2009-2018
Fit for Kawasaki KAF620 Mule 4010 4X4 SE 2016-2018
Fit for Kawasaki KAF620 Mule 3010 Trans 4X4 2005-2008
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 2009-2010
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 SE 2016-2018
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 Camo 2014-2017
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 Realtree APG HD 2009-2013
Fit for Kawasaki KAF620 Mule 3010 4X4 Advanrage Classic 2003
Fit for Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD 2005-2008
Fit for Kawasaki KAF620 Mule 4010 4X4 Hardwoods Green HD 2009
Fit for Kawasaki KAF620 Mule 3010 4X4 Hardwoods Green HD 2004-2008
Package Included:
1x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Shipping
1. Free shipping
2. Parcel will be delivered 2-6 working day
3. Parcel will via USPS or UPS from USA warehouse
Warranty:
Guarantee Period: 1 Years
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
