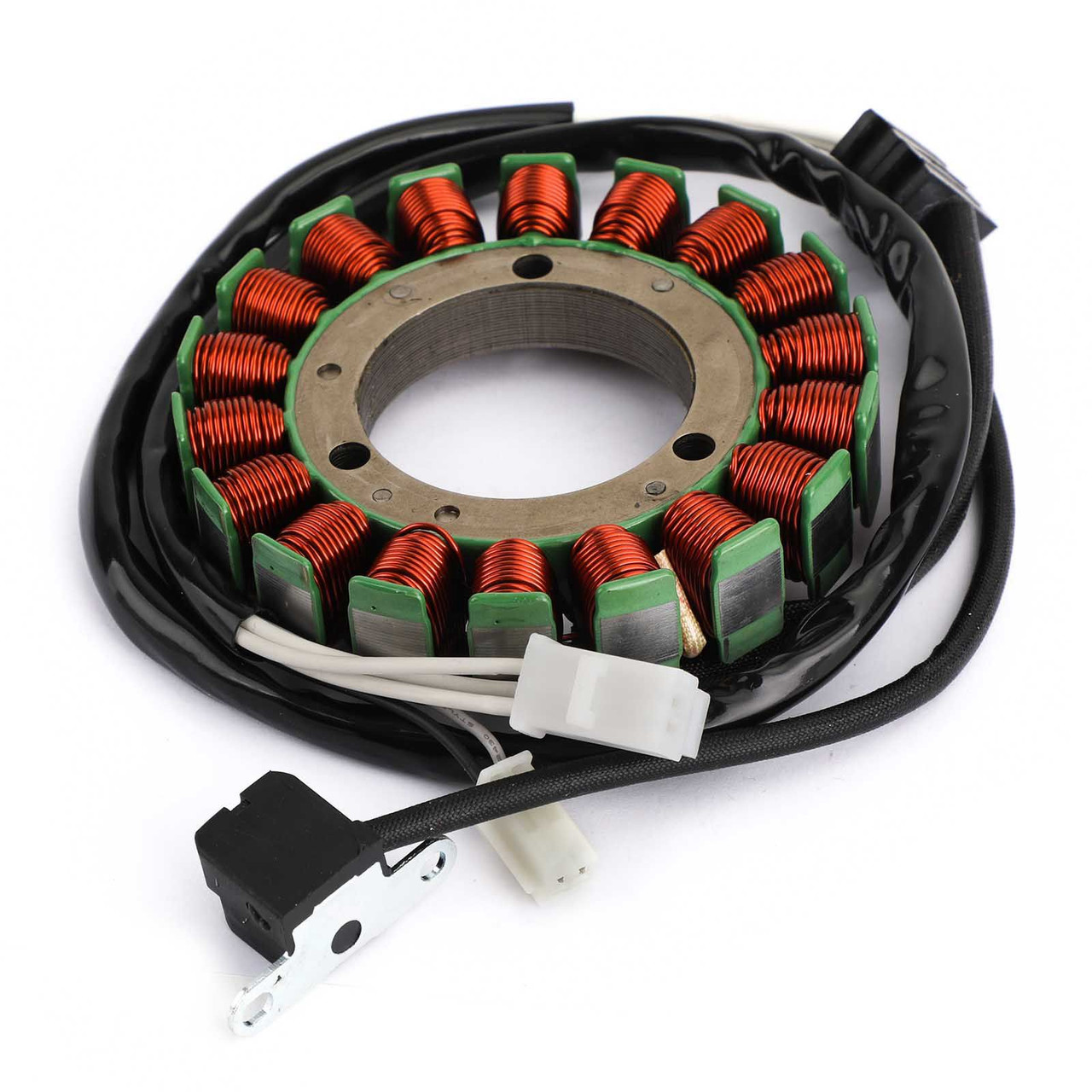

"Magneto Generator Engine Stator Rotor Coil Fit For Yamaha XVS650 V-Star / Drag Star Custom 2004-2017
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 54mm / 2.12 inches
Exterior diameter : 114.8mm / 4.52 inches
Pole's Thickness : 24.2mm / 0.95 inches
Pole's Width : 14mm / 0.55 inches
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+1)
Number of poles: 18
PART NUMBER(S):
5SC-81410-01-00
5SC-81410-02-00
5SC-81410-03-00
Fitments:
Fit for Yamaha XVS650 V-Star Custom 2004-2011/2013-2017
Fit for Yamaha XVS650A V-Star Classic 2004-2011/2013-2016
Fit for Yamaha XVS650AT V-Star Silverado 2005-2011
Fit for Yamaha XVS650AT Drag Star Silverado 2005-2011/2013
Fit for Yamaha XVS650 V-Star Midnight Custom 2005-2010
Fit for Yamaha XVS650A Drag Star Classic 2004-2006
Fit for Yamaha XVS650 V-Star Custom with Flames 2005
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part."
