Product Description
FREE fast shipping for USA. International delivery may take longer.

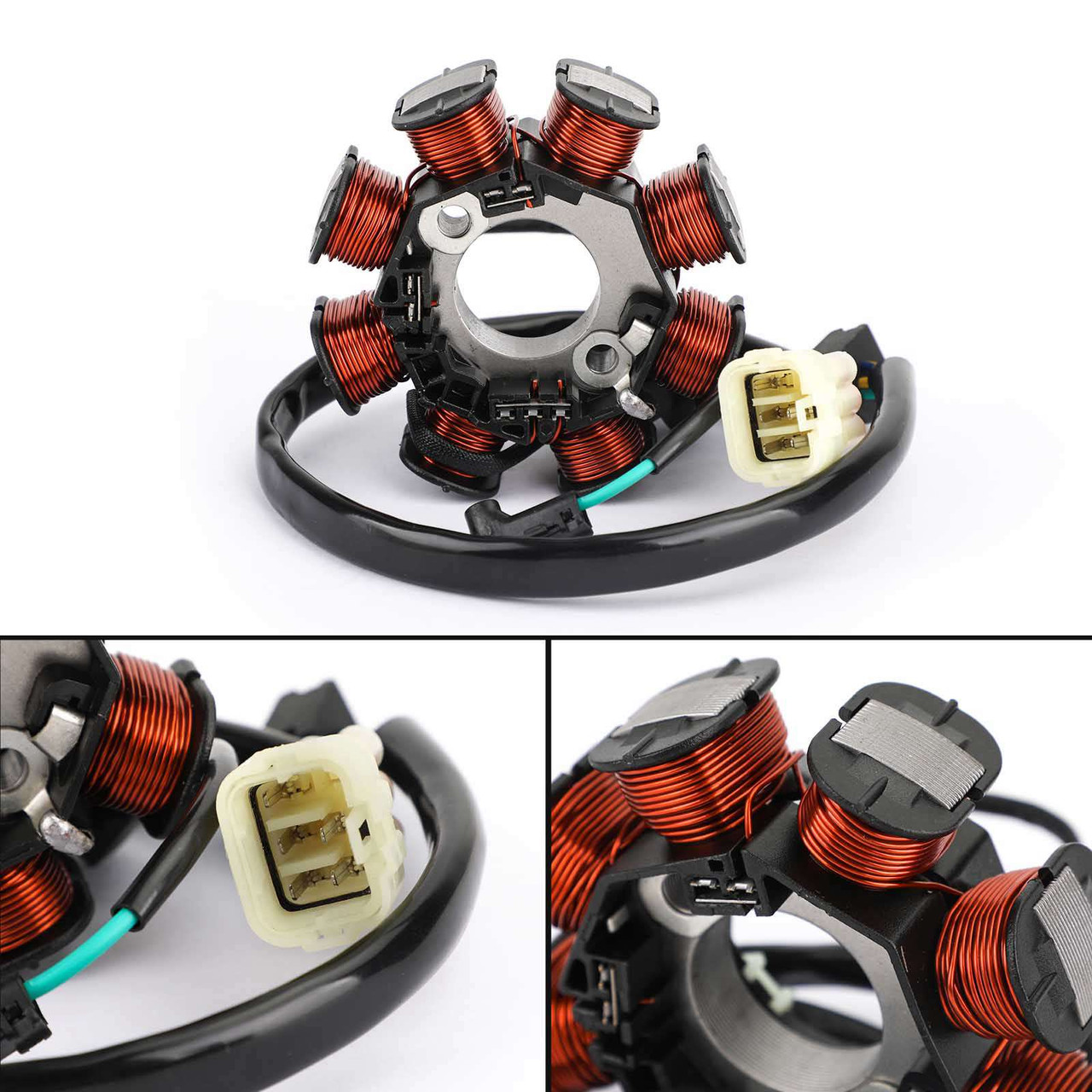

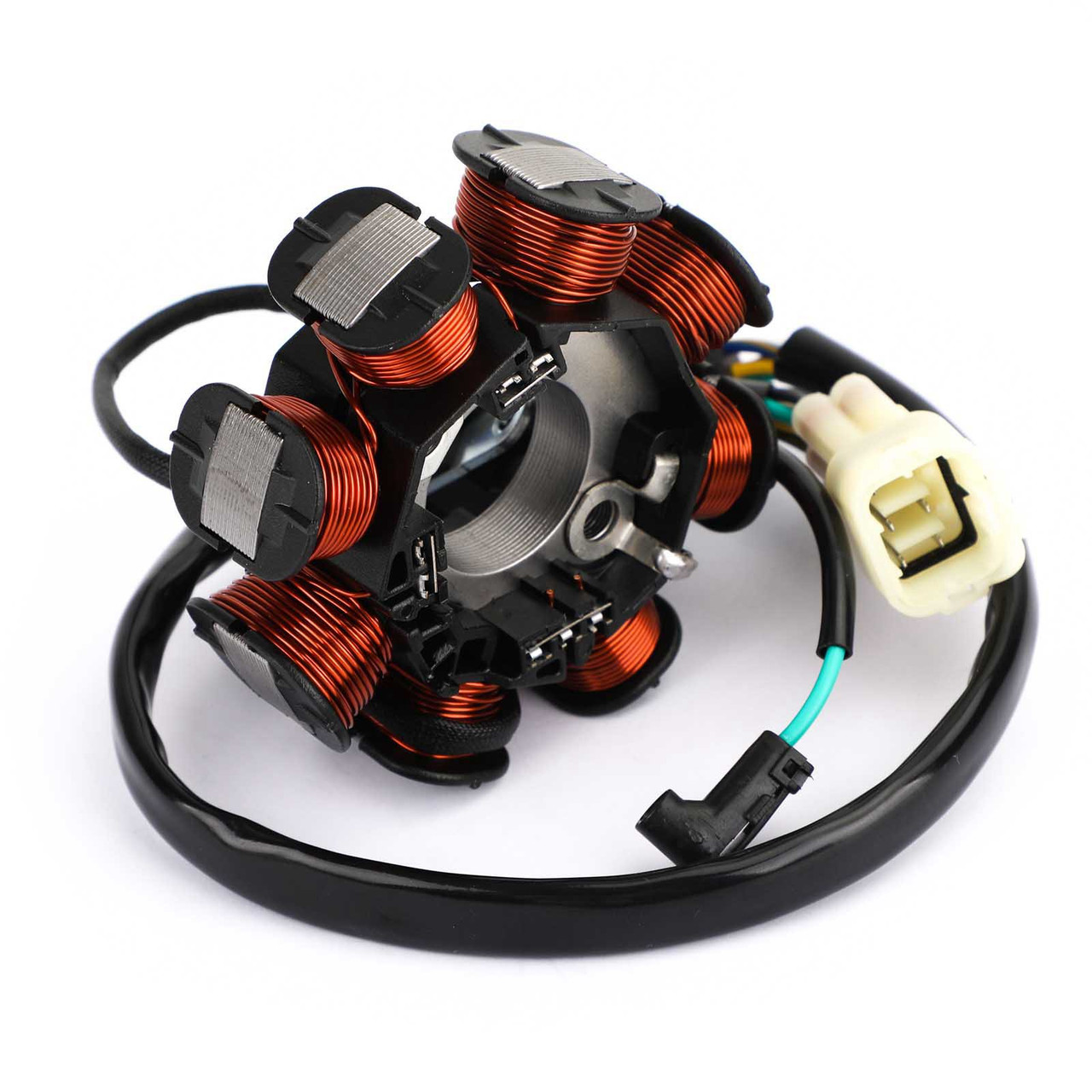

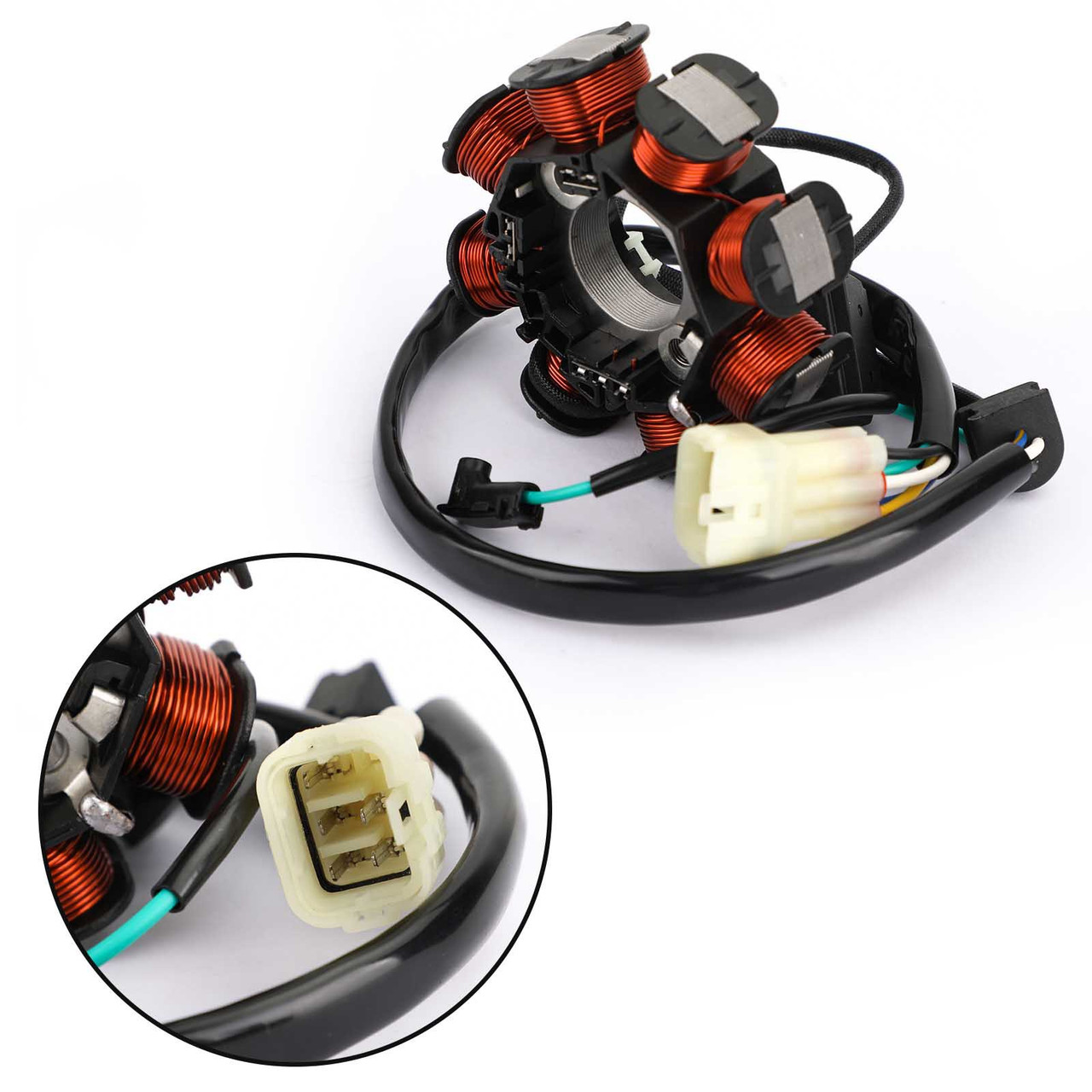

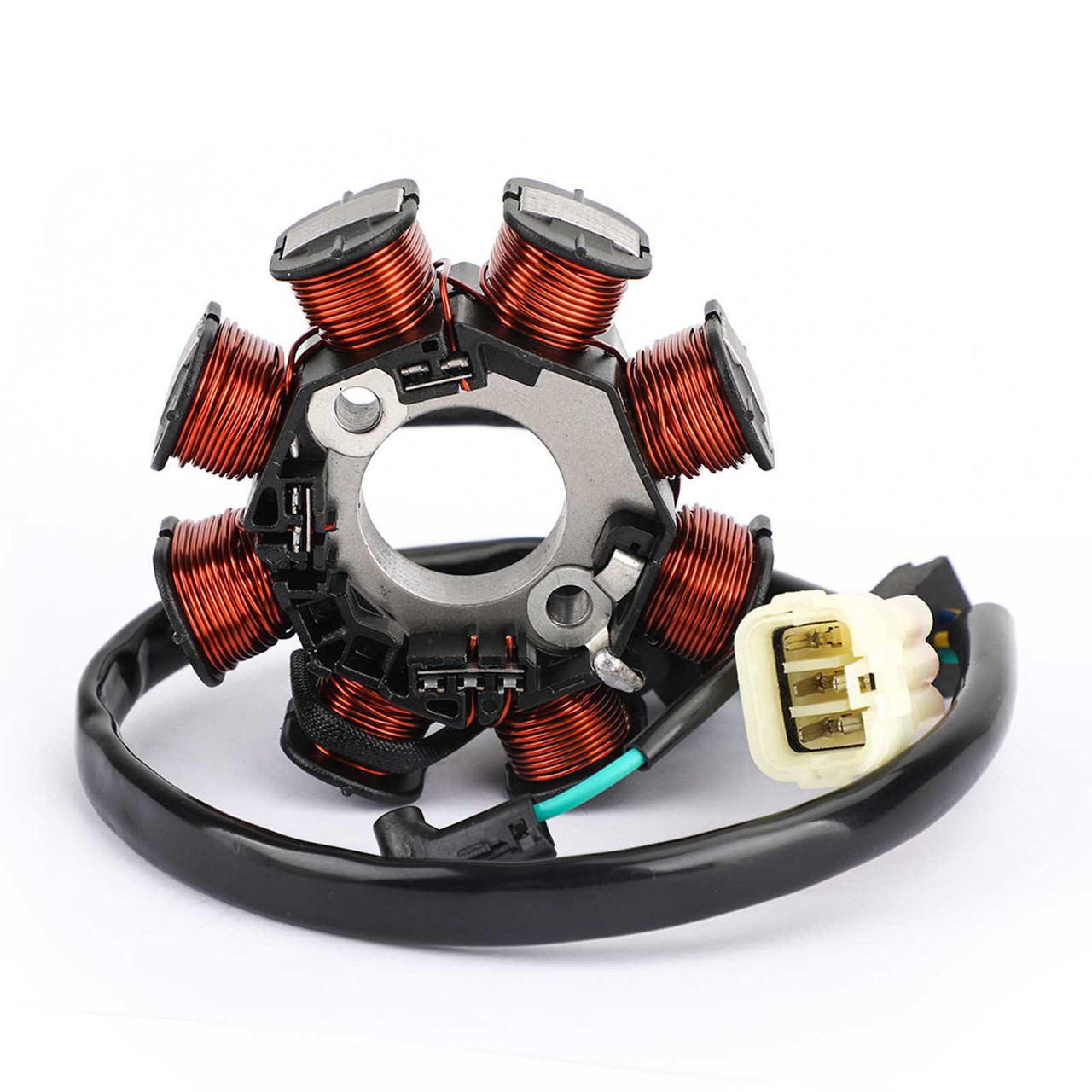

Magneto Generator Engine Stator Rotor Coil Fit For Kawasaki KLX150 KLX150L KLX150BF 2014-2018 KLX150 D-Tracker 2016
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

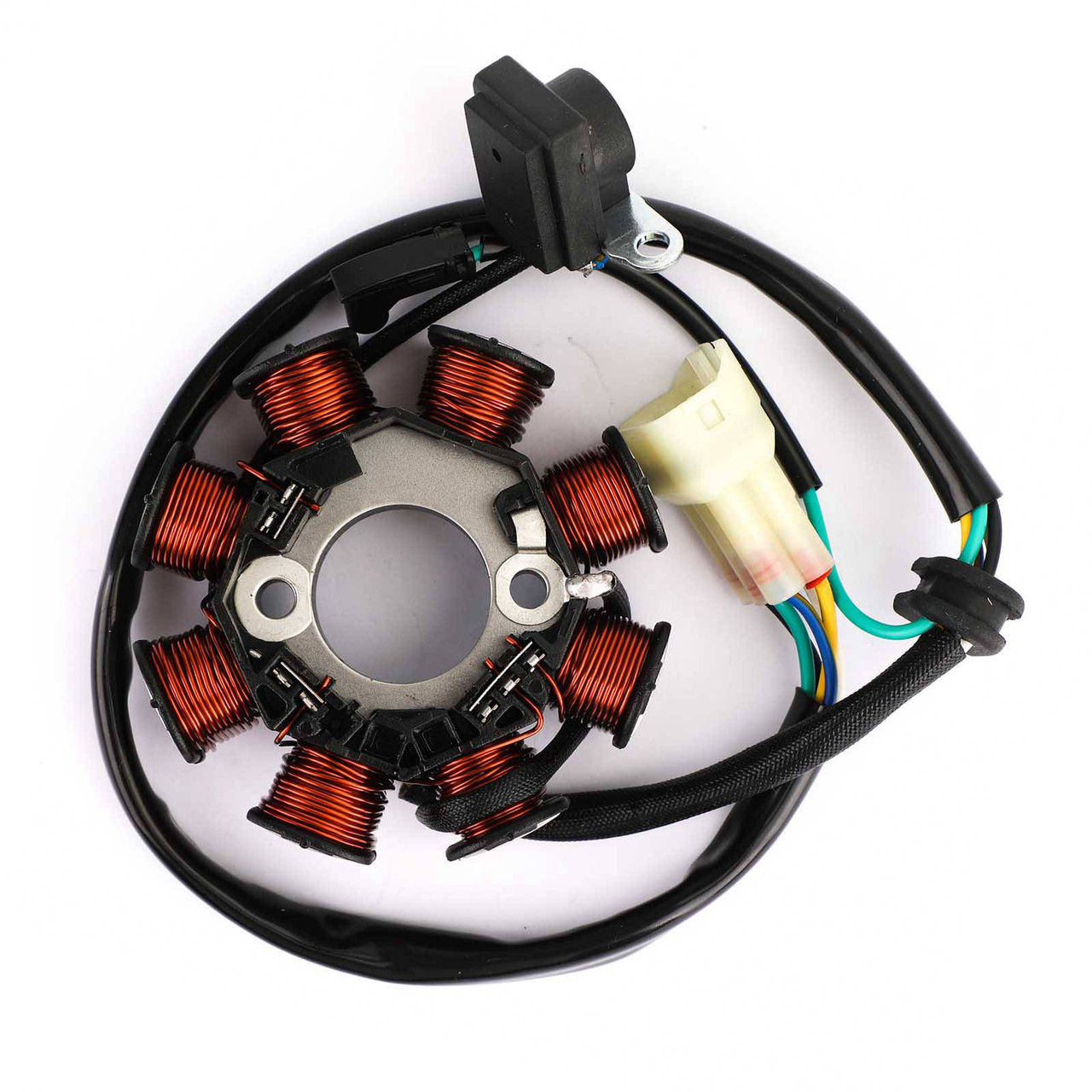

Pick up pulsar coil included.

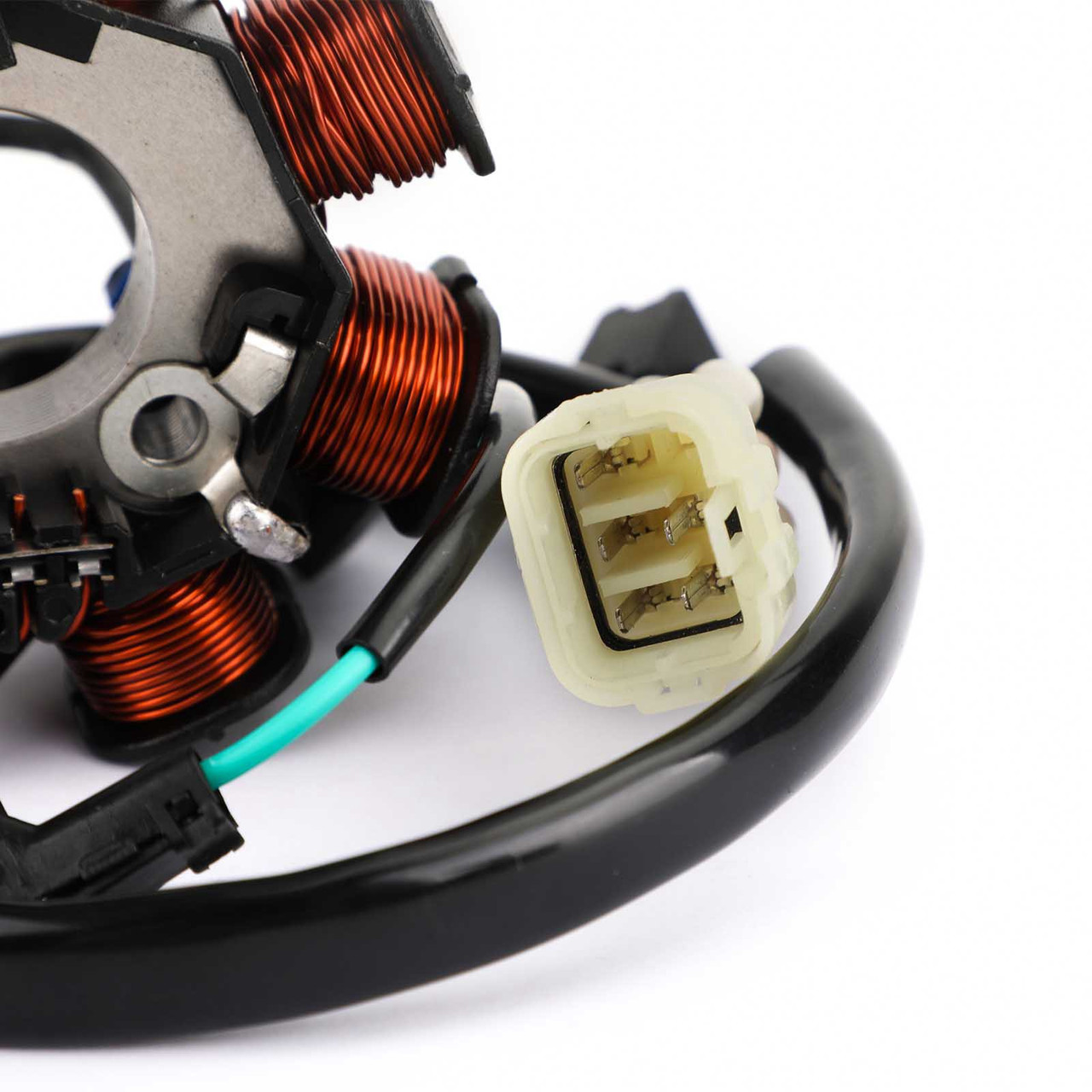

Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

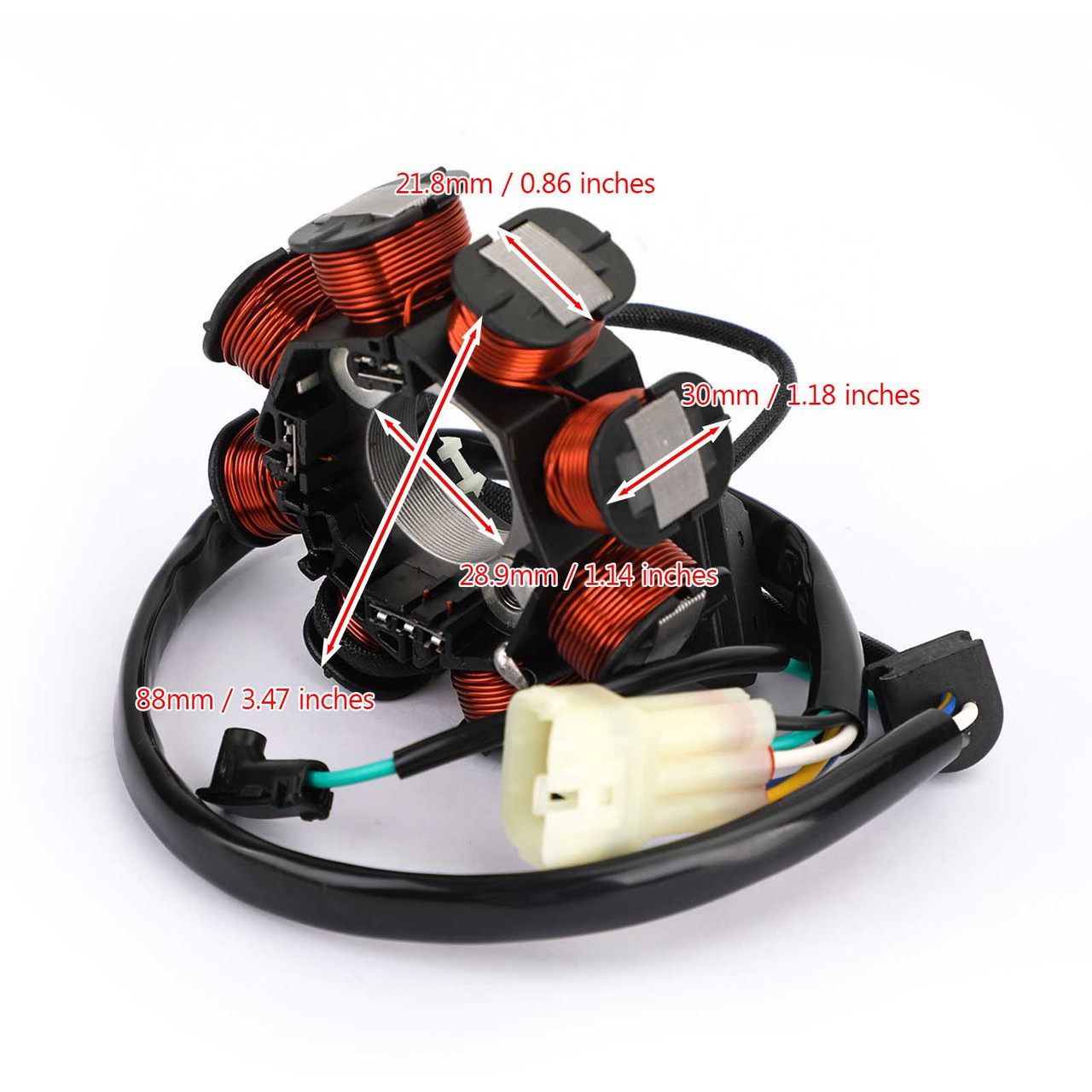

Dimensions :
Interior diameter : 28.9mm / 1.14 inches
Exterior diameter : 88mm / 3.47 inches
Pole's Thickness : 30mm / 1.18 inches
Pole's Width : 21.8mm / 0.86 inches
Other Specifications :
Number of wires: 5
Number of pins: 6
Number of plugs: 1(+1)
Number of fixation holes: 2
Number of poles: 8
PART NUMBER(S):
21003-0117
21003-0135
Fitments:
Fit for Kawasaki KLX150 KLX150L 2014
Fit for Kawasaki KLX150 KLX150L KLX150JFF 2015
Fit for Kawasaki KLX150 KLX150L KLX150JGF 2016
Fit for Kawasaki KLX150 KLX150BF KLX150FHF 2017
Fit for Kawasaki KLX150 KLX150BF KLX150FHFA 2017
Fit for Kawasaki KLX150 KLX150BF KLX150FHFB 2017
Fit for Kawasaki KLX150 KLX150L KLX150JHF 2017
Fit for Kawasaki KLX150 KLX150L KLX150JJF 2018
Fit for Kawasaki KLX150 KLX150HGF D-Tracker 2016
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
