Product Description
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

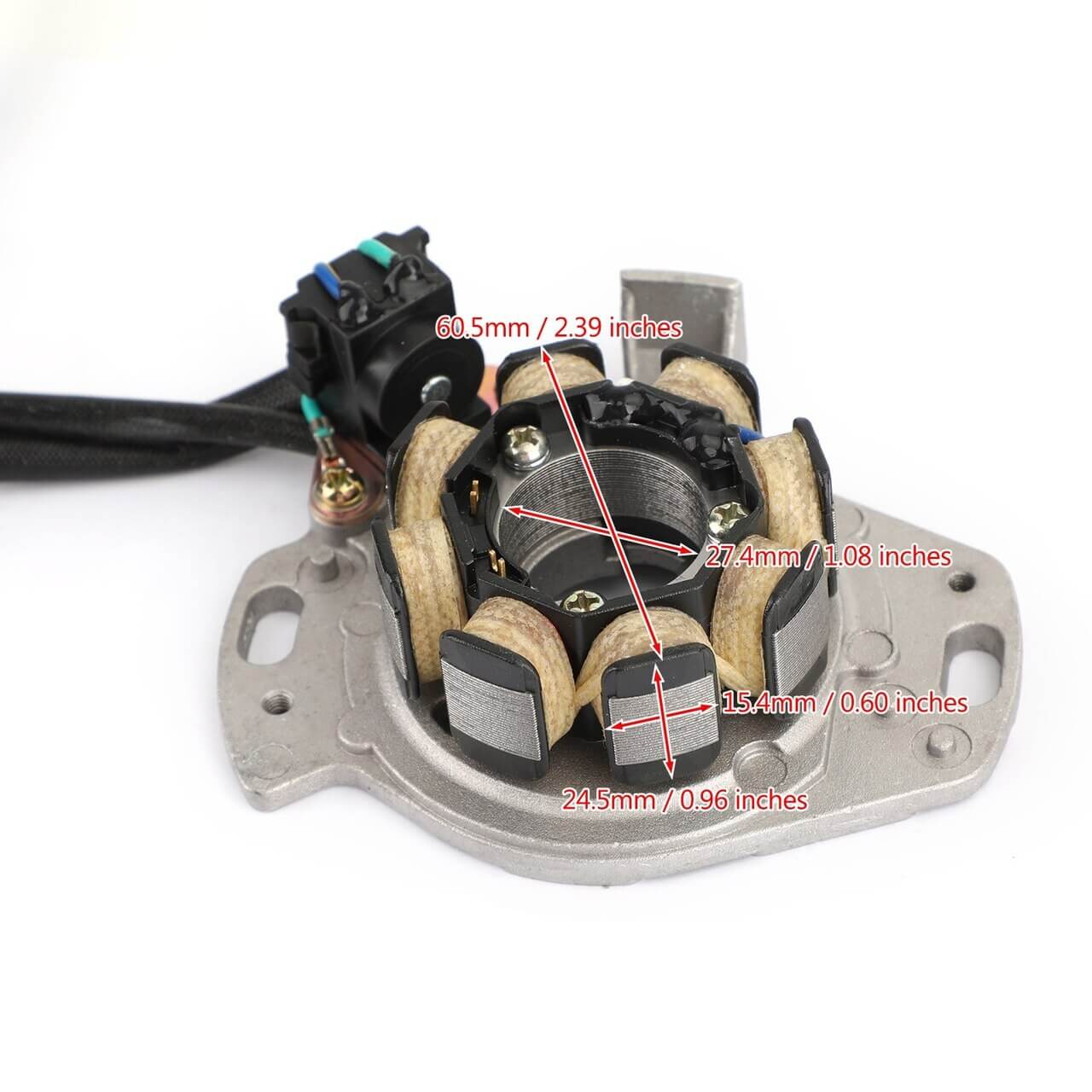

Dimensions:
Interior diameter : 27.4mm / 1.08 inches
Exterior diameter : 60.5mm / 2.39 inches
Pole's Thickness : 24.5mm / 0.96 inches
Pole's Width : 15.4mm / 0.60 inches
Other Specifications:
Number of wires: 8
Number of pins: 12
Number of plugs: 1(+4)
Number of fixation holes: 2
Number of poles: 8
PART NUMBER(S):
31100-KZ4-J31
31100-KZ3-J21
Fitments:
Fit for Honda CR125R 2001
Fit for Honda CR250 CR250R 2000-2001
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
1. Before installing your new stator, check the AC output of the stator.
2. Replace any burned or corroded connectors on stator and regulator/rectifier.
3. Check and repair any melted wiring.
4. Use hi-temp dielectric grease on all connectors
5. Our stator may use a different wire color code than your original.
6. All of the wires are installed in the correct order; please do not change any of the wiring configurations.
7. This stator is designed as a direct plug-in replacement and should be used as such.
8. When bolting stator in, always use locking compound.
9. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
10. All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping
1. Free shipping
2. Parcel will be delivered 2-6 working day
3. Parcel will via USPS or UPS from USA warehouse
Warranty:
Guarantee Period: 1 Years
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
