Product Description
Magneto Coil Stator + Voltage Regulator + Gasket AssyFeatures:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket
Replacement Part Number:
Stator Assy: 31401-33E00
Rectifier, regulator: 32800-33E00 / 32800-44D11

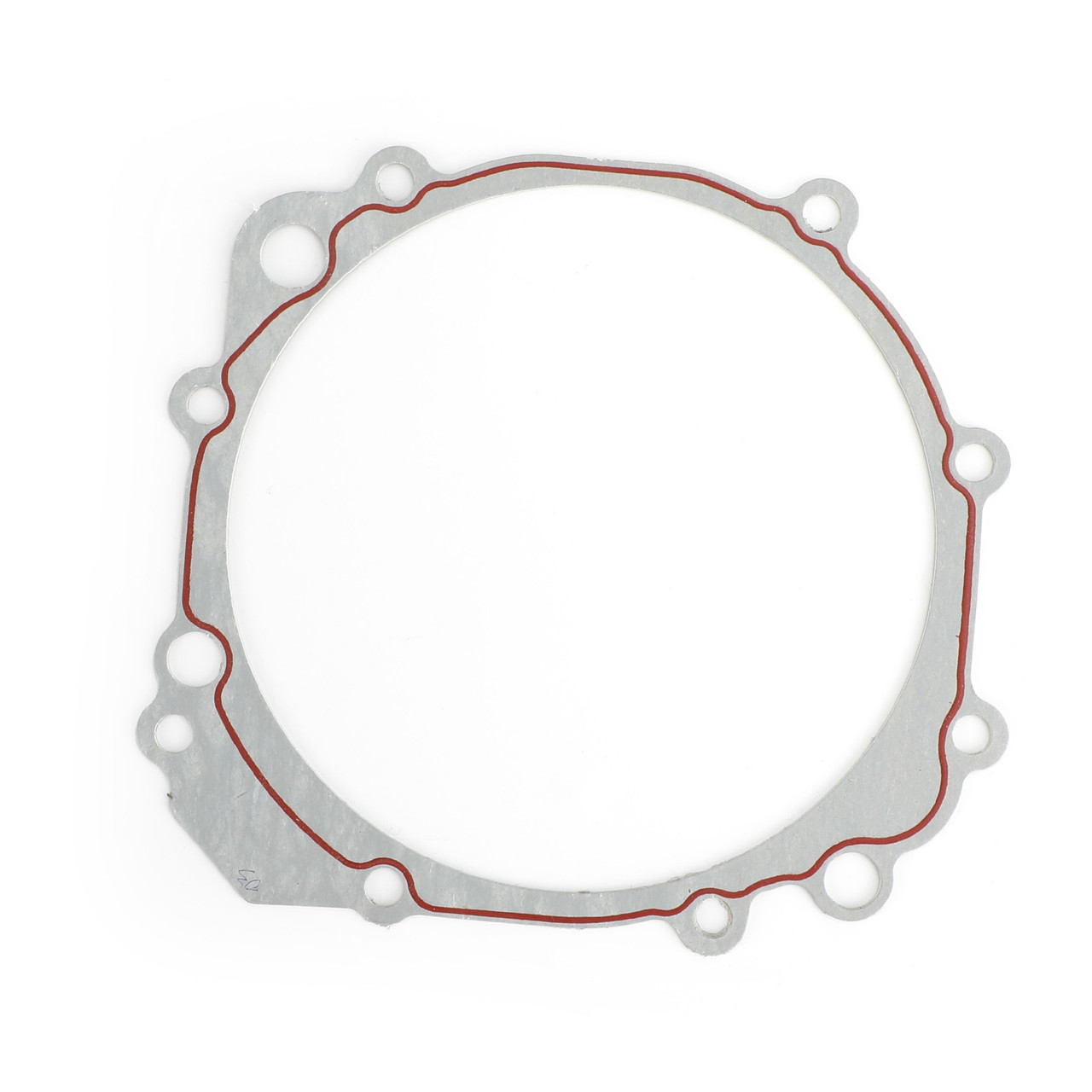

Gasket, generator cover: 11483-33E01
Fitment:
Fit for Suzuki GSXR600 GSX-R600 1997-2000
Fit for Suzuki GSX-R600 GSX-R600V 1997
Fit for Suzuki GSX-R600 GSX-R600W 1998
Fit for Suzuki GSX-R600 GSX-R600X 1999
Fit for Suzuki GSX-R600 GSX-R600Y 2000
Fit for Suzuki GSXR750 GSX-R750 1996-1999
Fit for Suzuki GSX-R750 GSX-R750T 1996
Fit for Suzuki GSX-R750 GSX-R750V 1997
Fit for Suzuki GSX-R750 GSX-R750W 1998
Fit for Suzuki GSX-R750 GSX-R750X 1999
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1 x Stator Coil
1 x Voltage Rectifier
1 x Generator Gasket
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
