Generator Stator Coil Alternator Fit for Polaris Sportsman Ranger 700 800 X2 XP Crew RZR 800Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

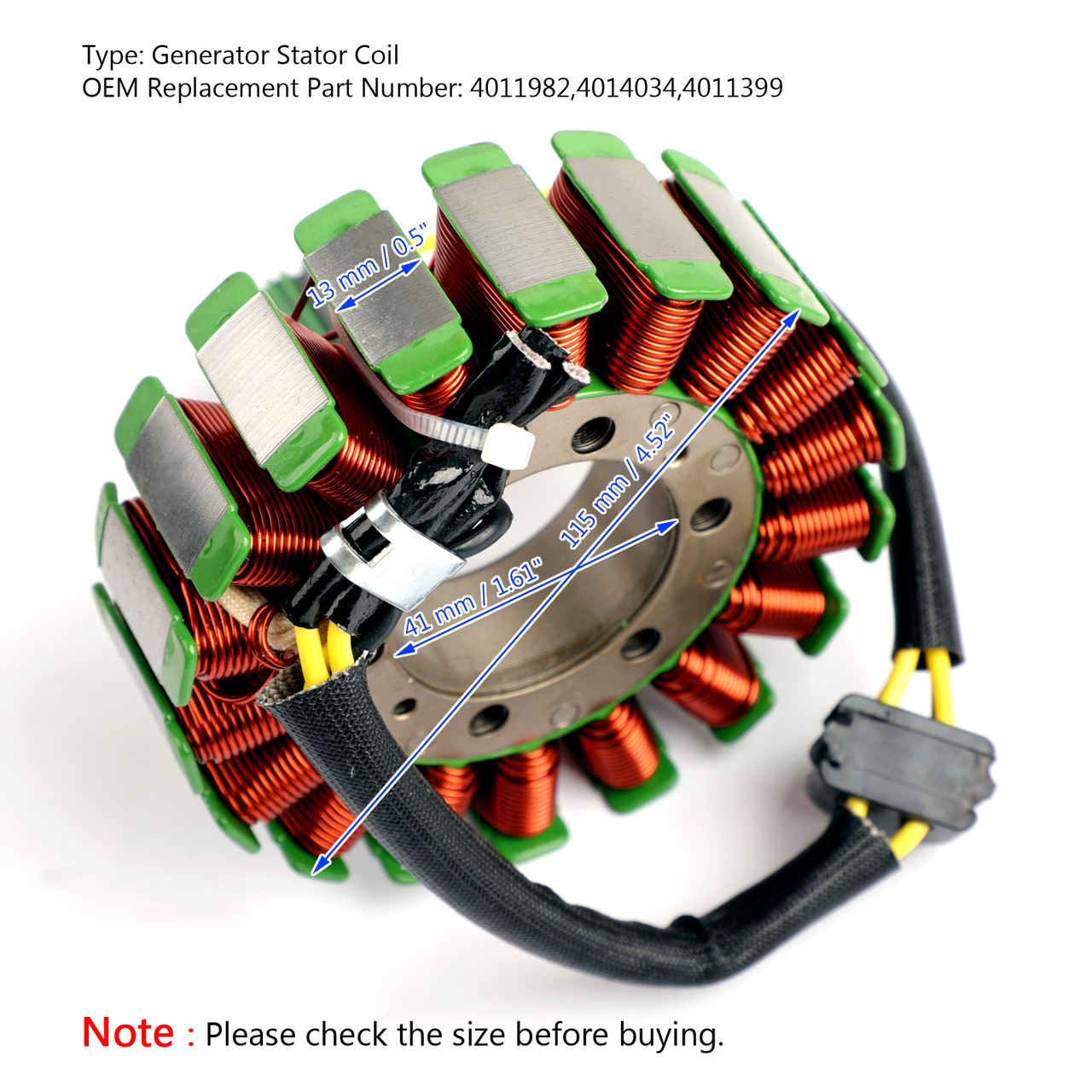

Dimensions :
Interior diameter : 41 mm / 1.61in
Exterior diameter : 115 mm / 4.52in
Thickness : 13 mm / 0.5in
Other Specifications :

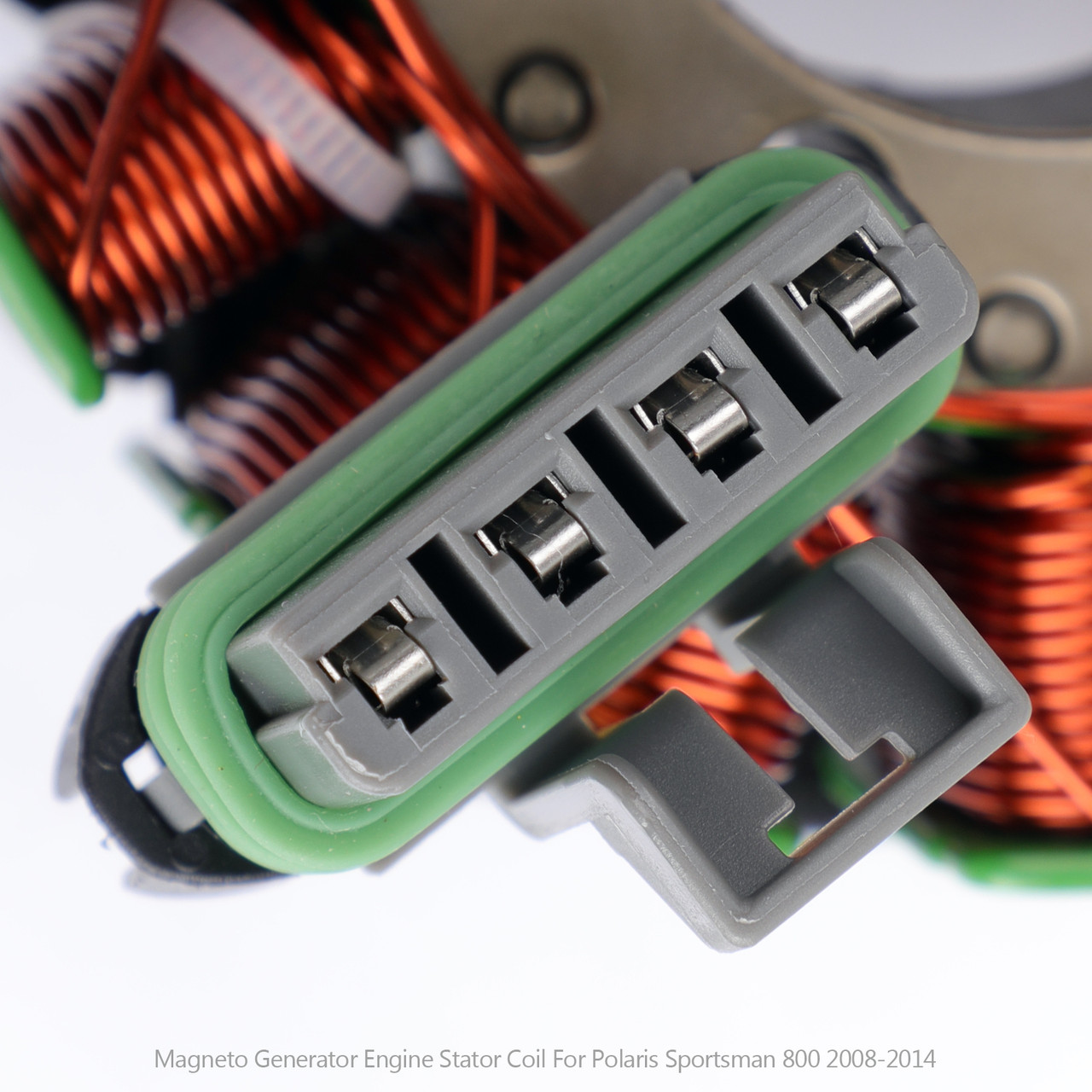

Number of wires : 4
Number of pins : 4
Number of plug : 1
Number of fixation holes: 5 (+2)
Replacement Part Number:
4011982
4014034
4011399
Fitments:
Fit for Polaris Sportsman 800 2008-2014
Fit for Polaris Sportsman X2 800 2008-2009
Fit for Polaris Sportsman 800 6x6 EFI 2012/2014
Fit for Polaris Sportsman 800 Big Boss 2010-2011
Fit for Polaris Sportsman 800 HO 2008-2009
Fit for Polaris Sportsman 800 Touring 2008-2009
Fit for Polaris Ranger 800 2010-2017
Fit for Polaris Ranger 800 XP 2012
Fit for Polaris Ranger Crew 800 2010-2014
Fit for Polaris RZR 800 2008-2014
Fit for Polaris RZR 800 S 2009-2014
Fit for Polaris RZR 4 800 2010-2014
Fit for Polaris Sportsman X2 700 2008
Fit for Polaris Ranger 700 2006-2009
Fit for Polaris Ranger 700 XP 2006-2007
Fit for Polaris Ranger 700 6x6 EFI 2007-2008
Fit for Polaris Ranger Crew 700 2008-2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Includes:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
