Product Description

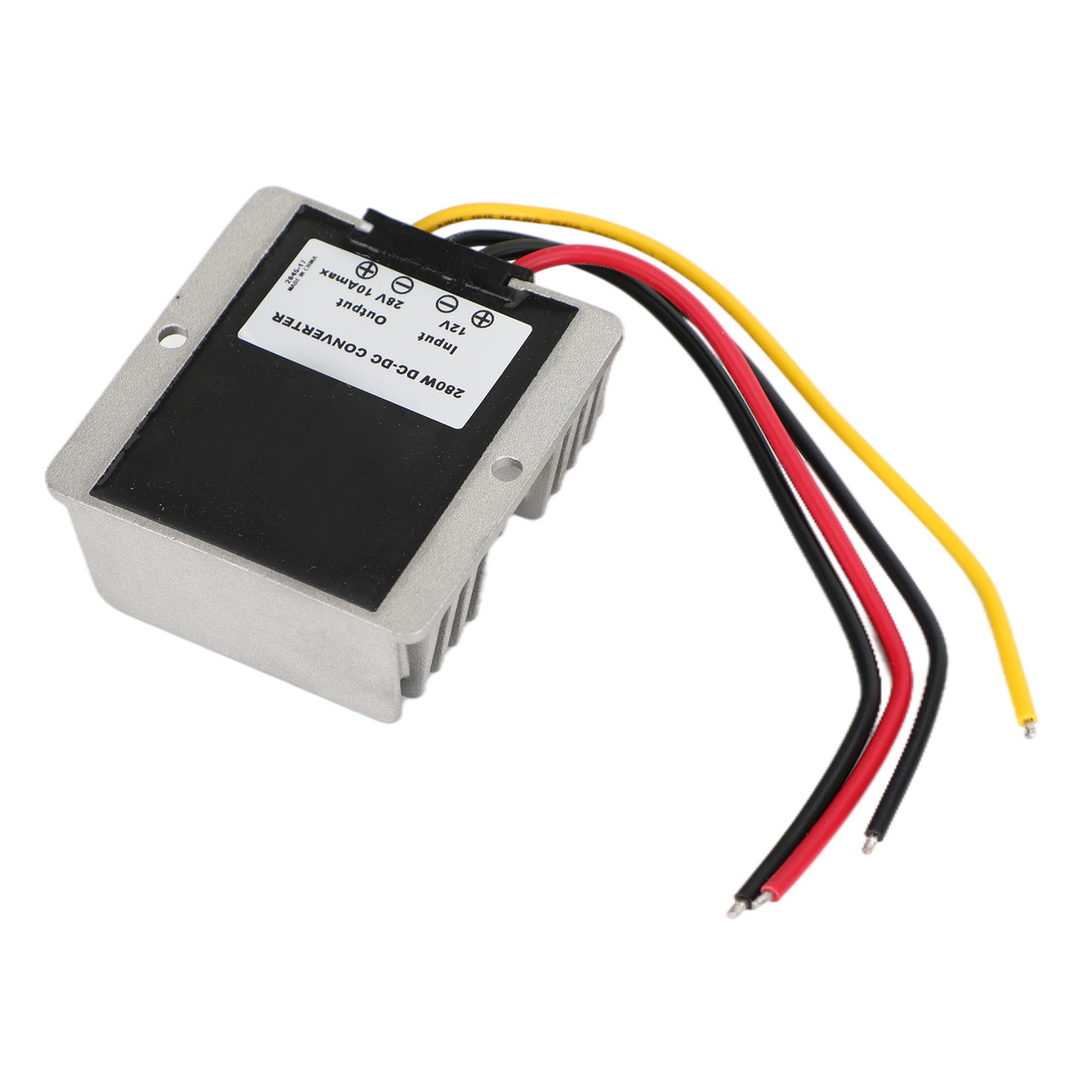

10A DC-DC 12V Step Up to 28V Power Converter Regulator
Feature:
1:High quality thermal silica potting, waterproof, dust-proof, shockproof effect
2:Aluminum Outer Case material, long term stable and reliable.
3:With overvoltage,overcurrent overheating protection
4:Waterproof, Shockproof Design.
5:Easy to install.
Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Type: DC switching regulator
Input voltage: DC 12V (9-28V)
Output parameter: 28V 10A 280W
Output ripple: 40mV(MAX)
Working temperature: (-40℃～ 85â„?
Load regulation: ± 1%
Voltage regulation rate: ± 2%

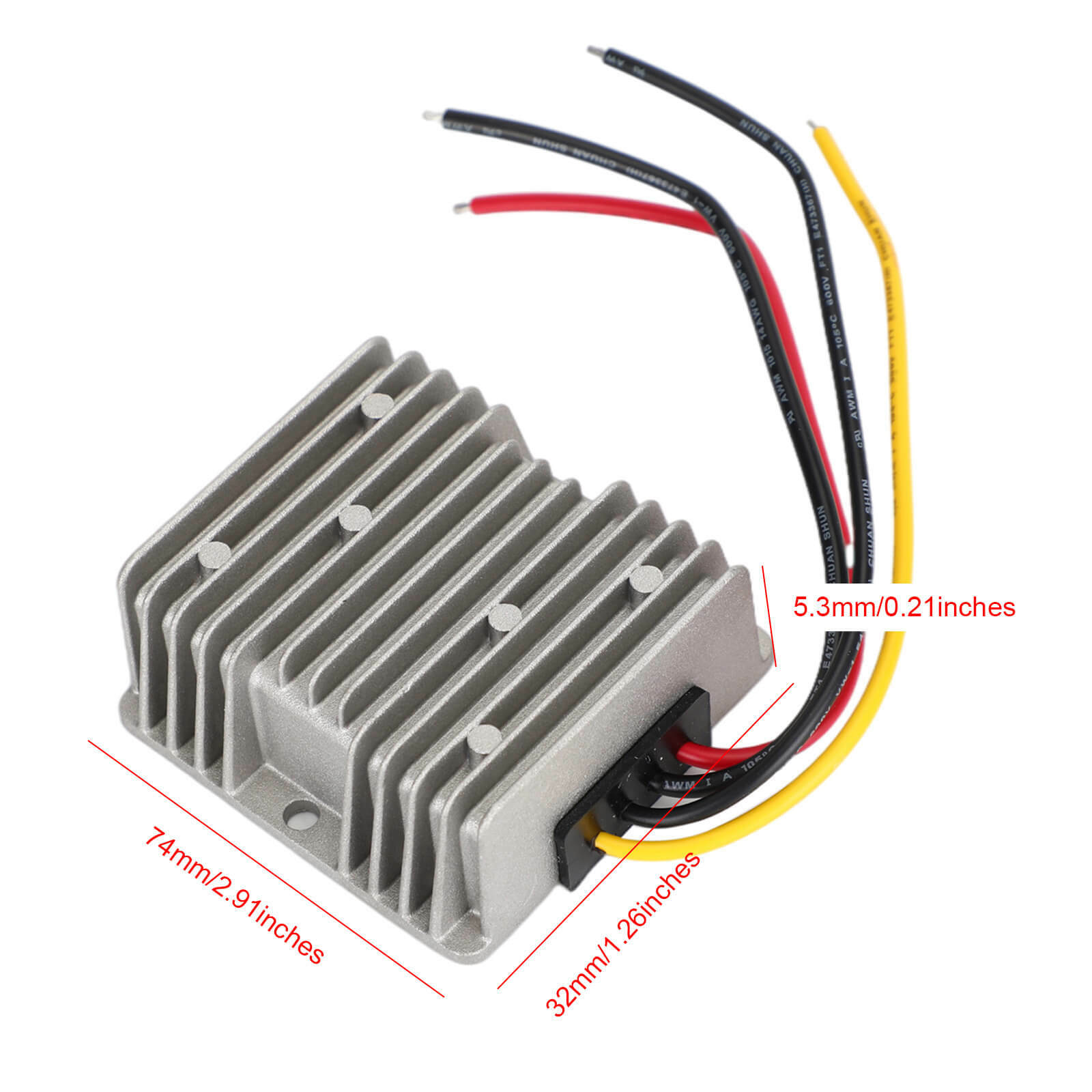

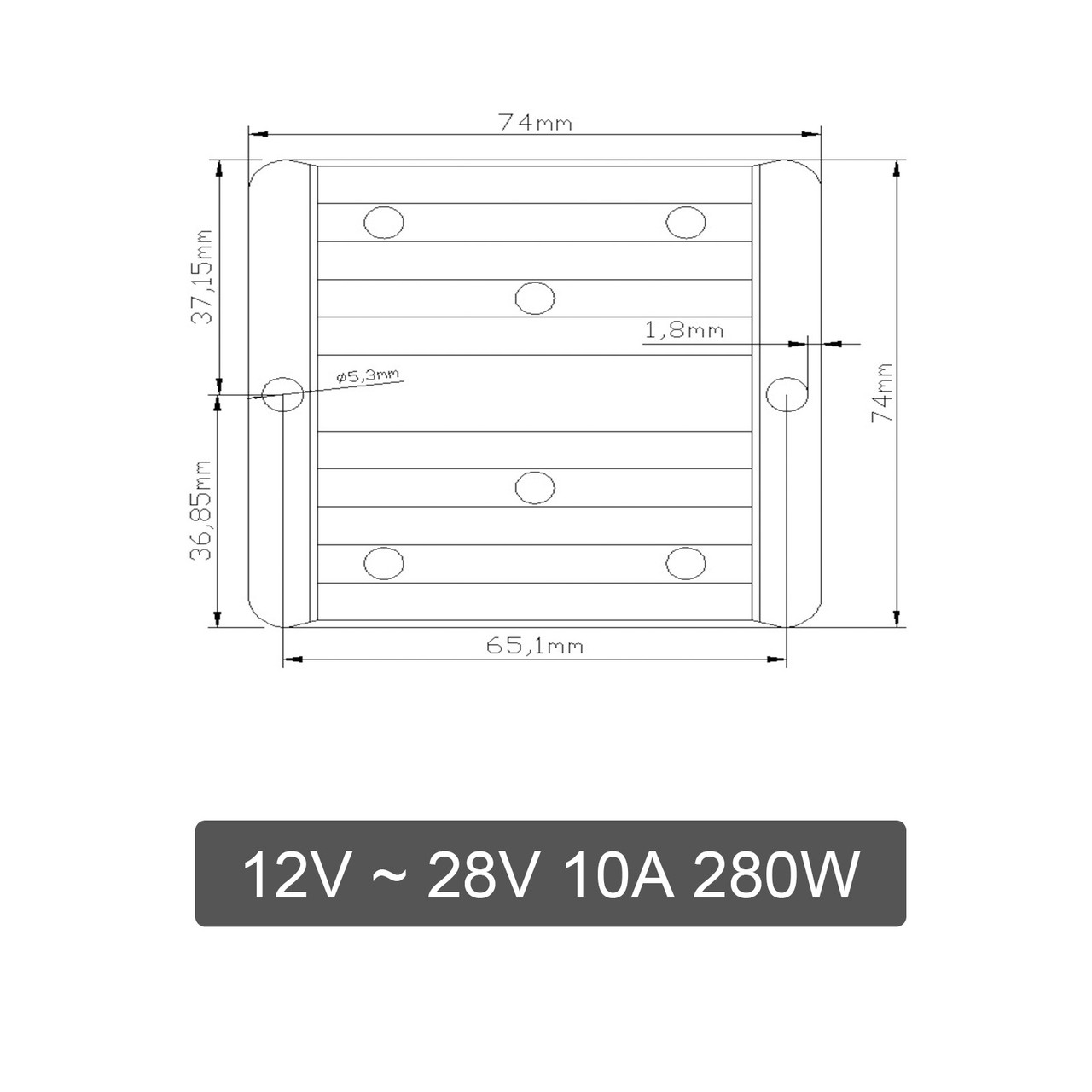

Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Weight:approx.280g
Diameterï¼?.3mm/0.21inches
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
Shipping
1. Free shipping
2. Parcel will be delivered 2-6 working day
3. Parcel will via USPS or FedEx from USA warehouse
Warranty:
Guarantee Period: 1 Years
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
