Product Description
Stock Standard Bore Cylinder Piston Rebuild Kit For Honda CB300R CBR300R & CMX300 Rebel 300 2015-2022
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

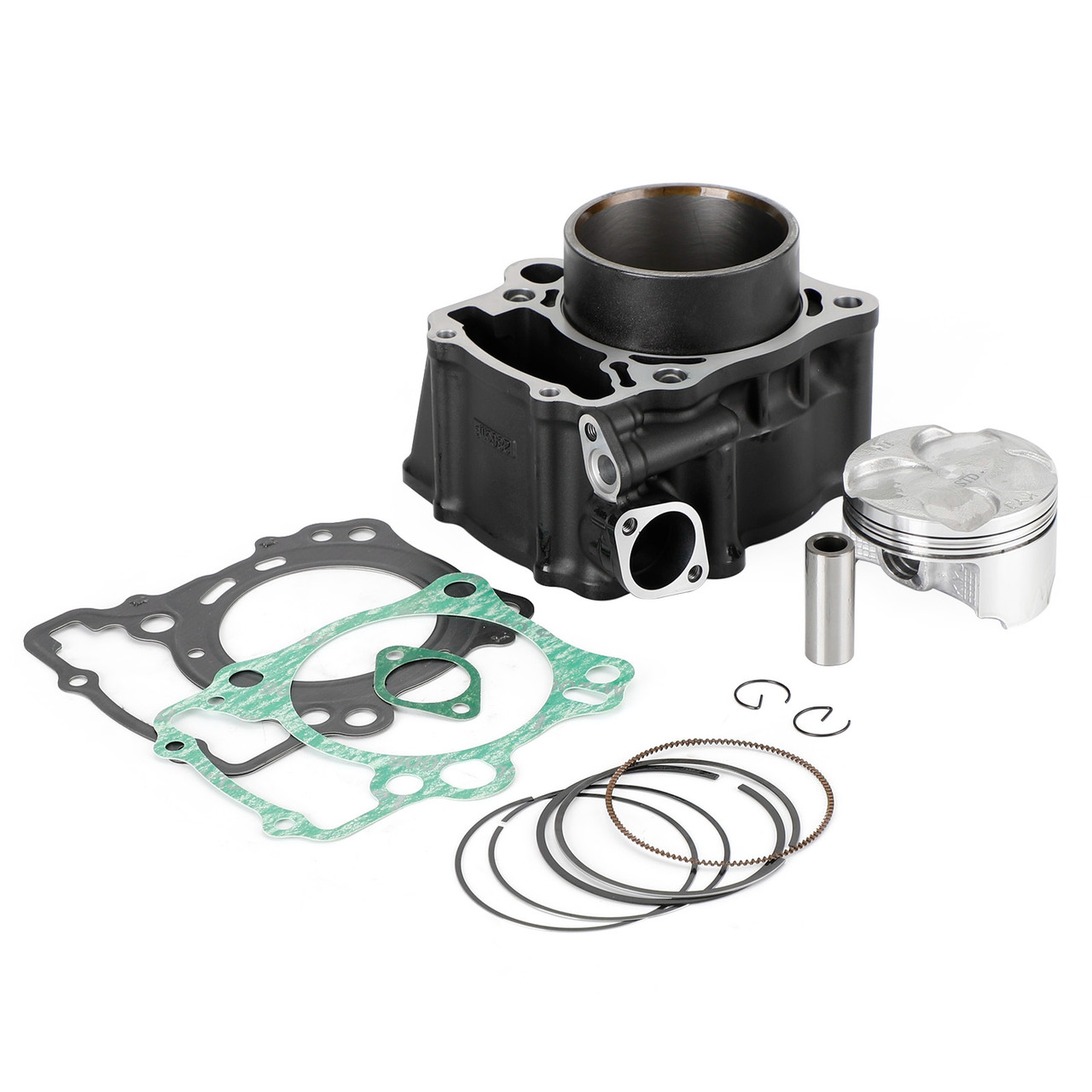

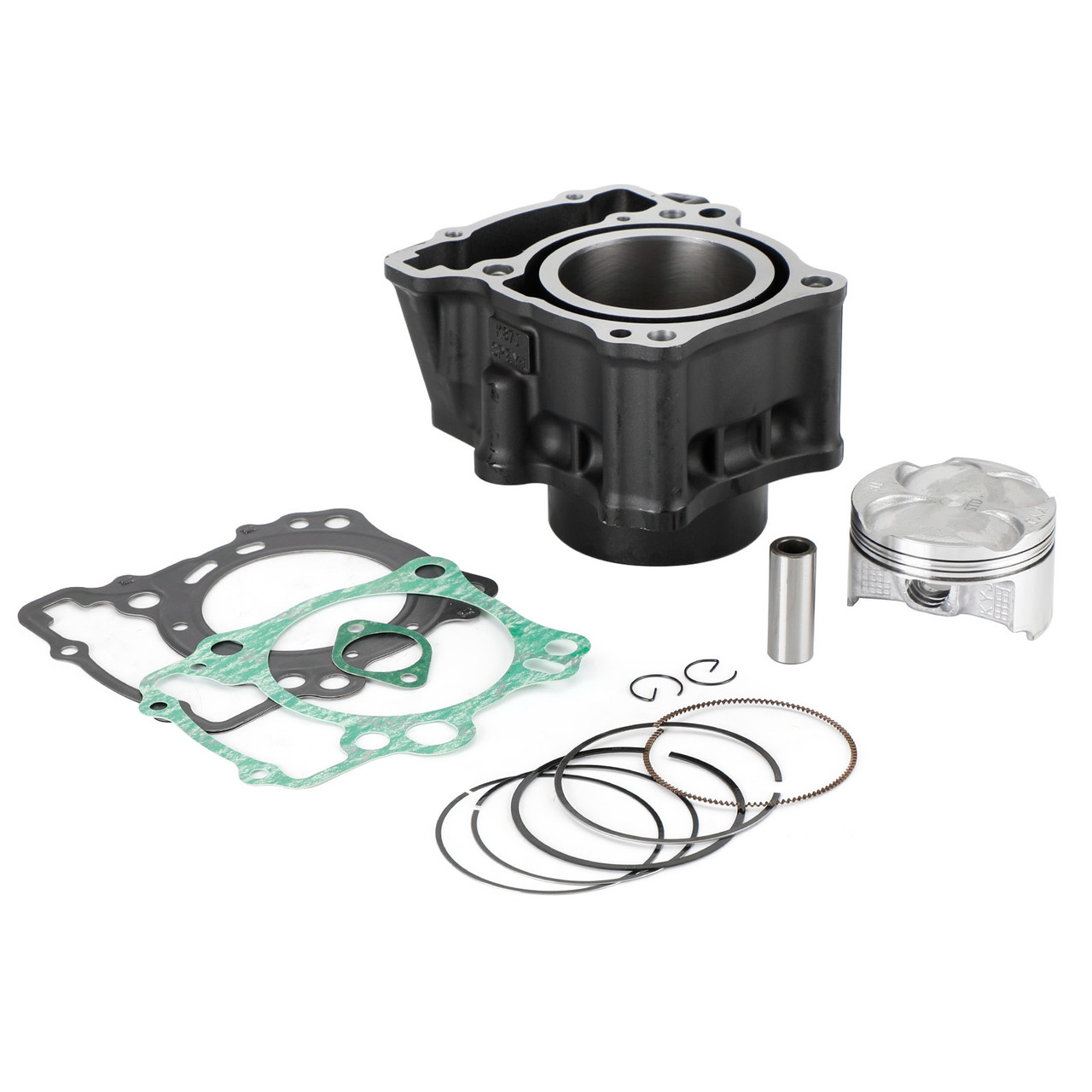

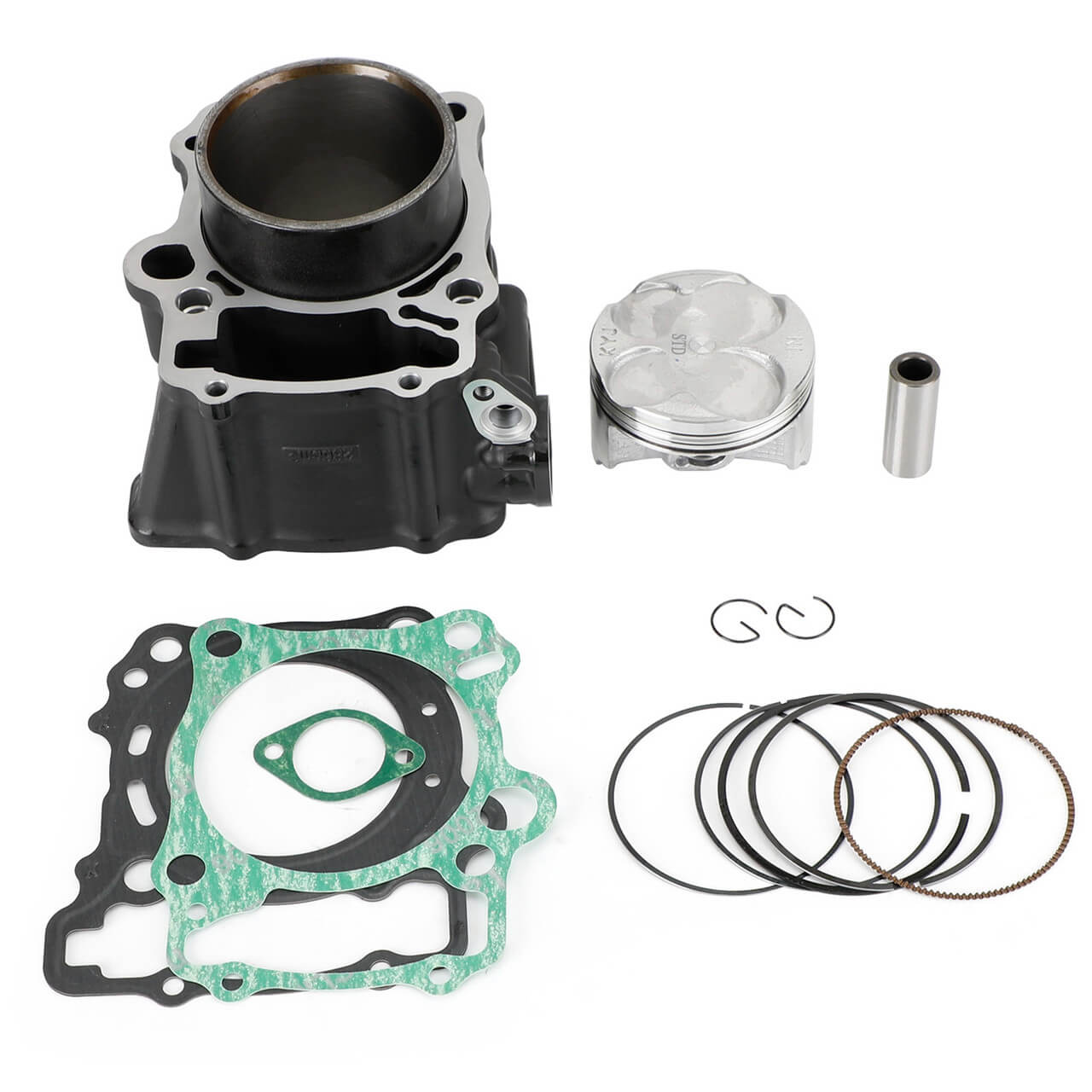

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 76mm, 17mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 286cc
Bore Type: Standard Bore
Bore Size: STD 76mm
Stroke: 63mm
Pin Diameter: 17mm
Replacement Part Number:
Cylinder: 12100-K33-D00
Cylinder Base Gasket: 12191-KYJ-900
Cylinder Head Gasket: 12251-KYJ-901
Piston (Std): 13101-K33-D00
Pin, Piston: 13111-MEL-000
Piston Ring Set (Std): 13010-KYJ-305
Circlips, piston: 13112-K33-D00
Tensioner Gasket: 14560-KGH-900
Fits Models:
Fit for Honda CBR300R 2015-2022
Fit for Honda CBR300RA ABS 2015-2022
Fit for Honda CB300F 2017-2018
Fit for Honda CB300FA 2017-2018
Fit for Honda CB300R (CBF300N) 2019-2022
Fit for Honda CMX300 Rebel 300 2017-2022
Fit for Honda CMX300A Rebel 300 ABS 2017-2022
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:

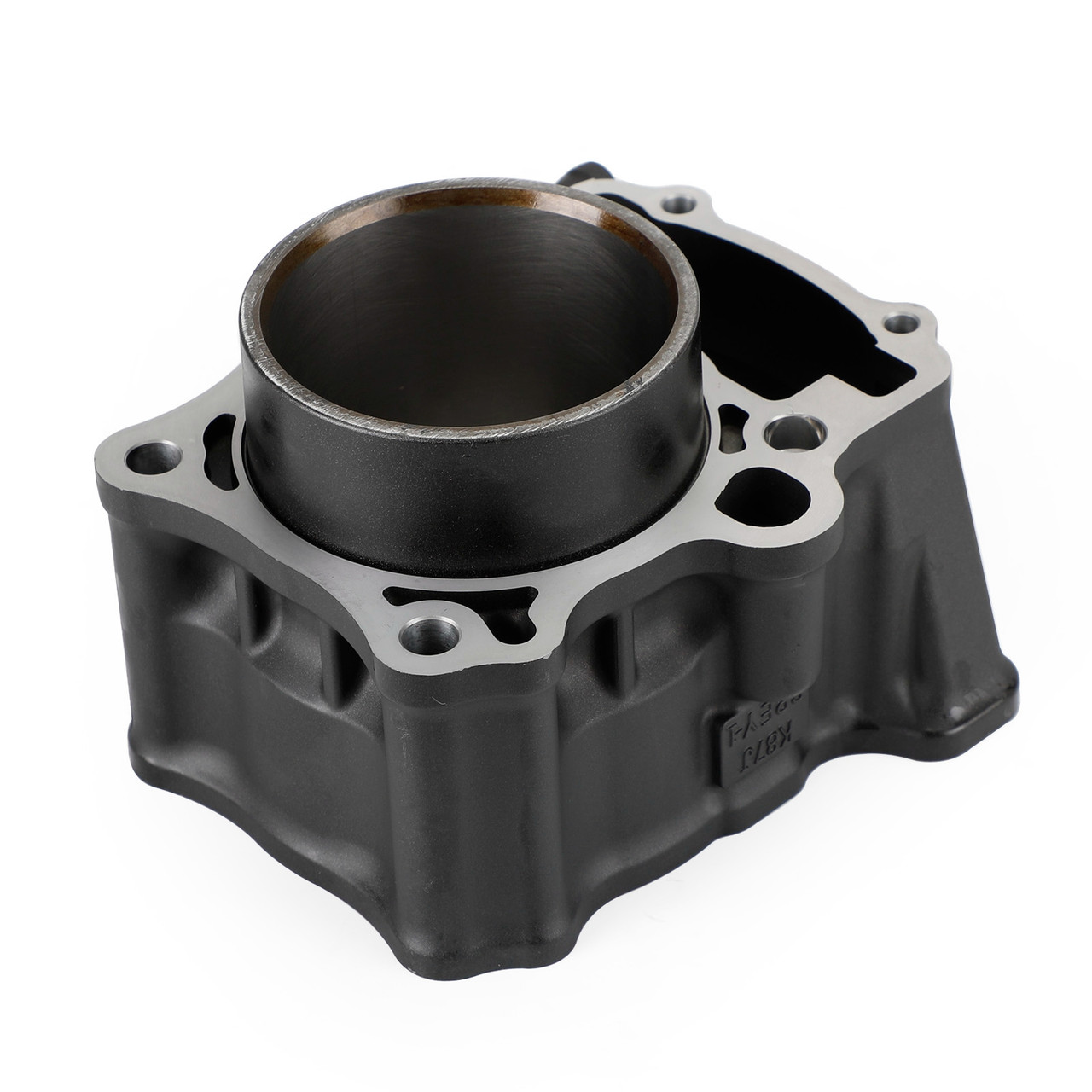

1x Cylinder
1x Piston(STD)

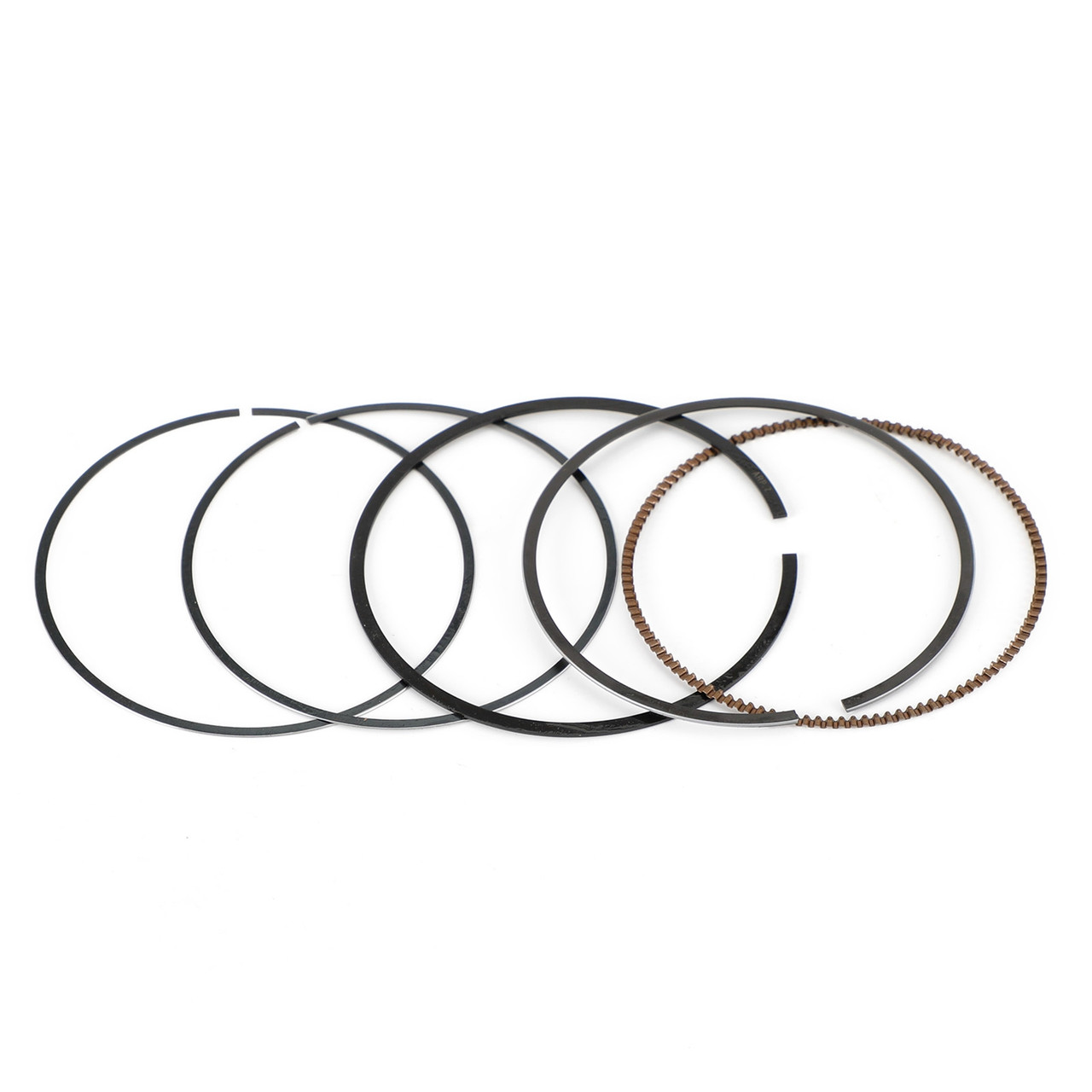

1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Shipping:
1. Free shipping
2. Parcel will be delivered 3-8 working day
3. Parcel will arrive via Fedex or USPS
Warranty:
Guarantee Period: 1 Year
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
