Product Description

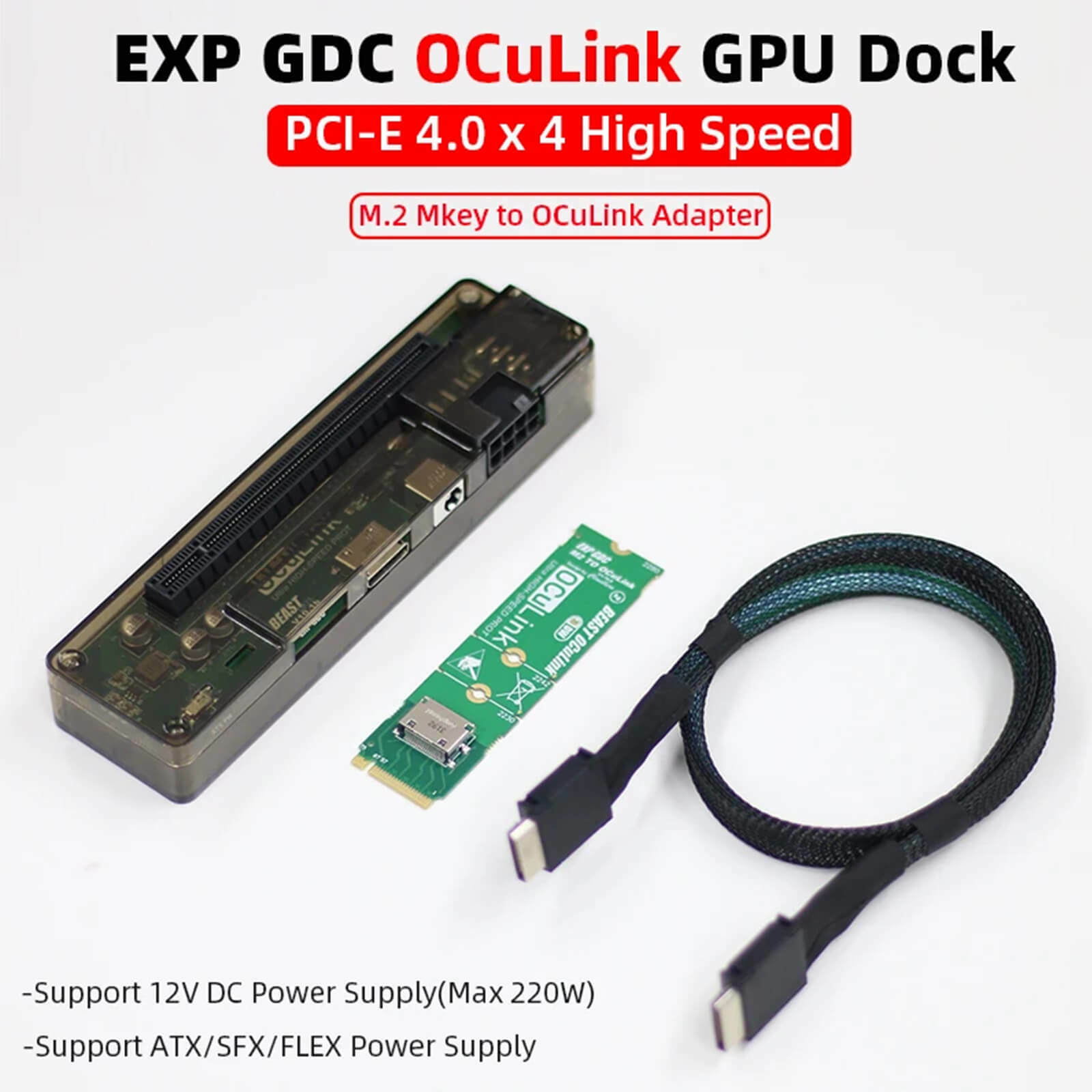

EXP GDC OCuLink High Speed GPU Dock PCIe 4.0 x4 Mini PC Notebook Laptop to External Graphic Card Adapter M.2 Mkey to OCuLink
Description:

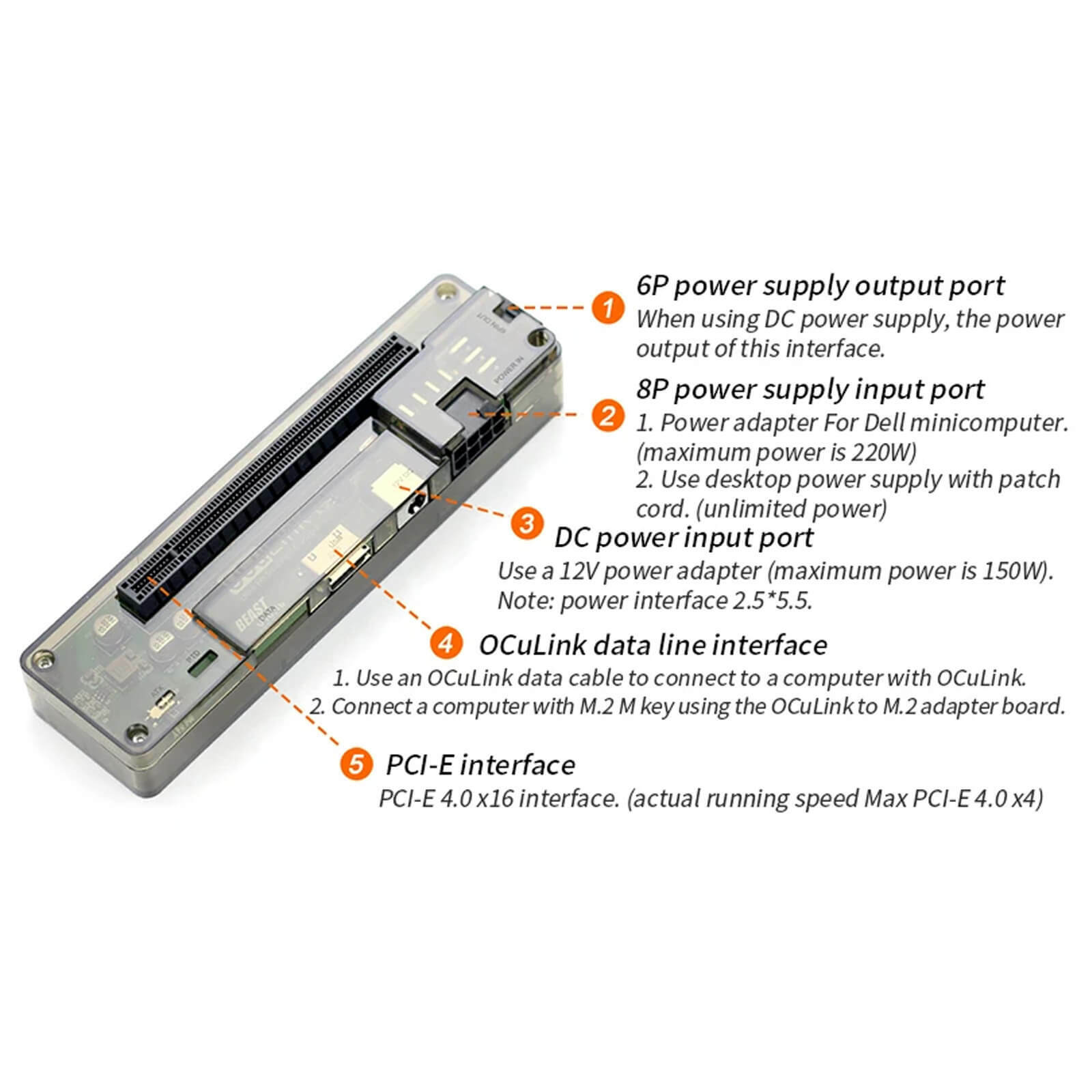

6P power output:The maximum provides the interface output 6PIN+8PIN, maximum support 12A, maximum support 18A output with the motherboard and the.
If more than 220W using power card please with ATX cable, ATX power supply used for the graphics.
8P power supply interface:The main board and the equipment of the power supply interface, support soft switch function (notebook starting power starting, notebook shut down
power off).
The power of this interface, you can use 1 specialDELL 220W, 2, can be matched with ATX cable using the ATX power to support external graphics power, soft switching
function.
DC power supply interface:Support DC 12 volt power supply input interface type outer diameter 5.5MM, inner diameter 2.1MM, maximum power 150W, support the soft switch
function.Answer: If you use the AMD series card,it must to connect with the external monitor to use.
Specification:
Model Number: EXP GDCV8.5 adapter.
Products: Notebook PCI-E expansion device.
Operating system: replacement for Windows XP/7/8/8.1, Linux etc.
(Remind: replacement for Win XP, Win8/8.1 is only compatible with the laptop with external screen)
Extended support:
PCI-E X16:DMI GT/s (X1) 5
Power support:
8P interface: 220W max.
DC interface: 150W max.
Colour: black.
Material: PCB.

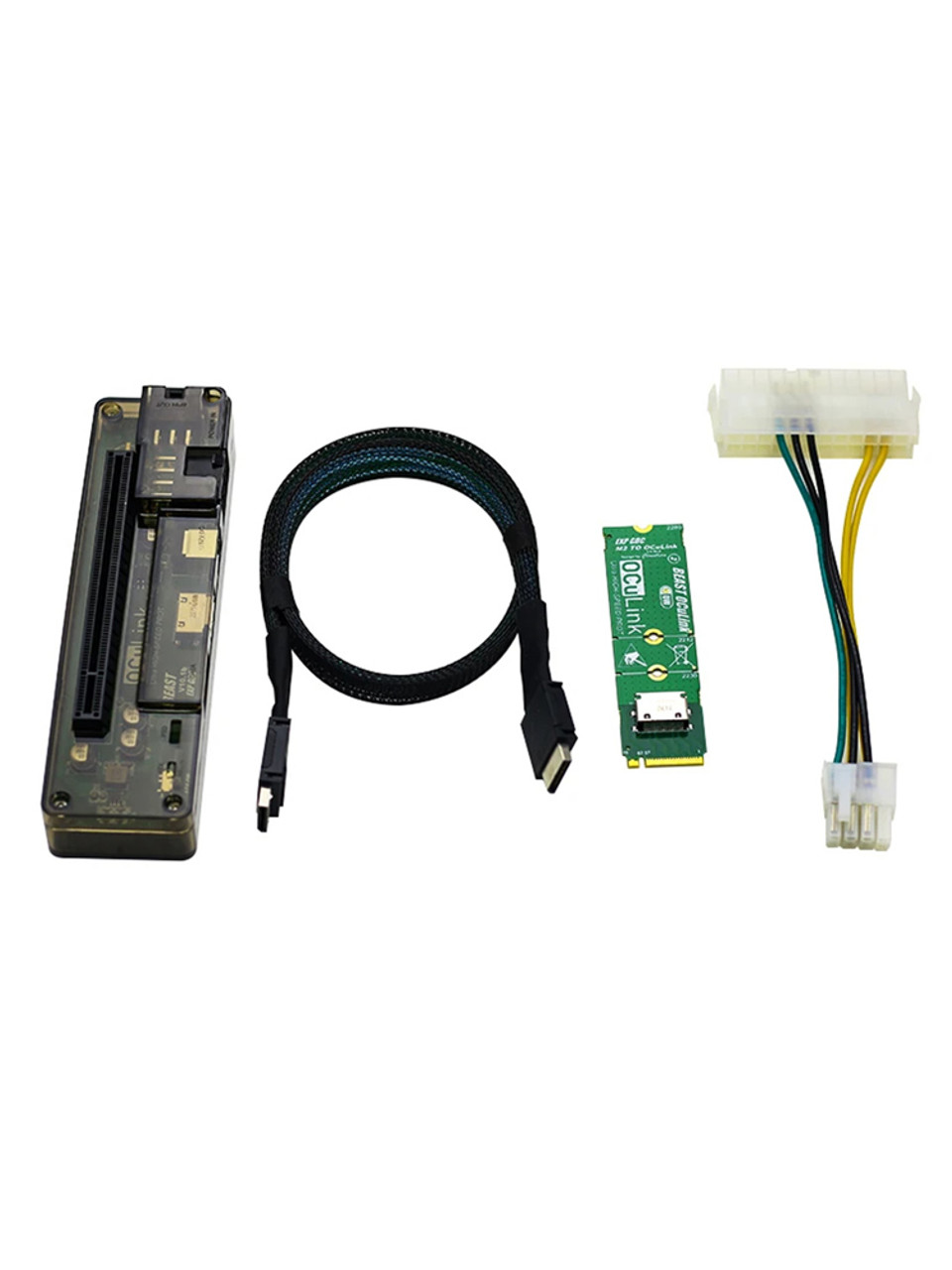

Package Included:
1 x Beast Oculink docking station
1 xOculingk data cable(50cm)
1 xM.2 to OCulink adapter board
1 xATX24P to 8P power cord
Shipping:
1. Free shipping
2. Parcel will be delivered 3-8 working day
3. Parcel will delivered via Fedex or USPS
Warranty:
Guarantee Period: 1 Years
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day.
