Product Description

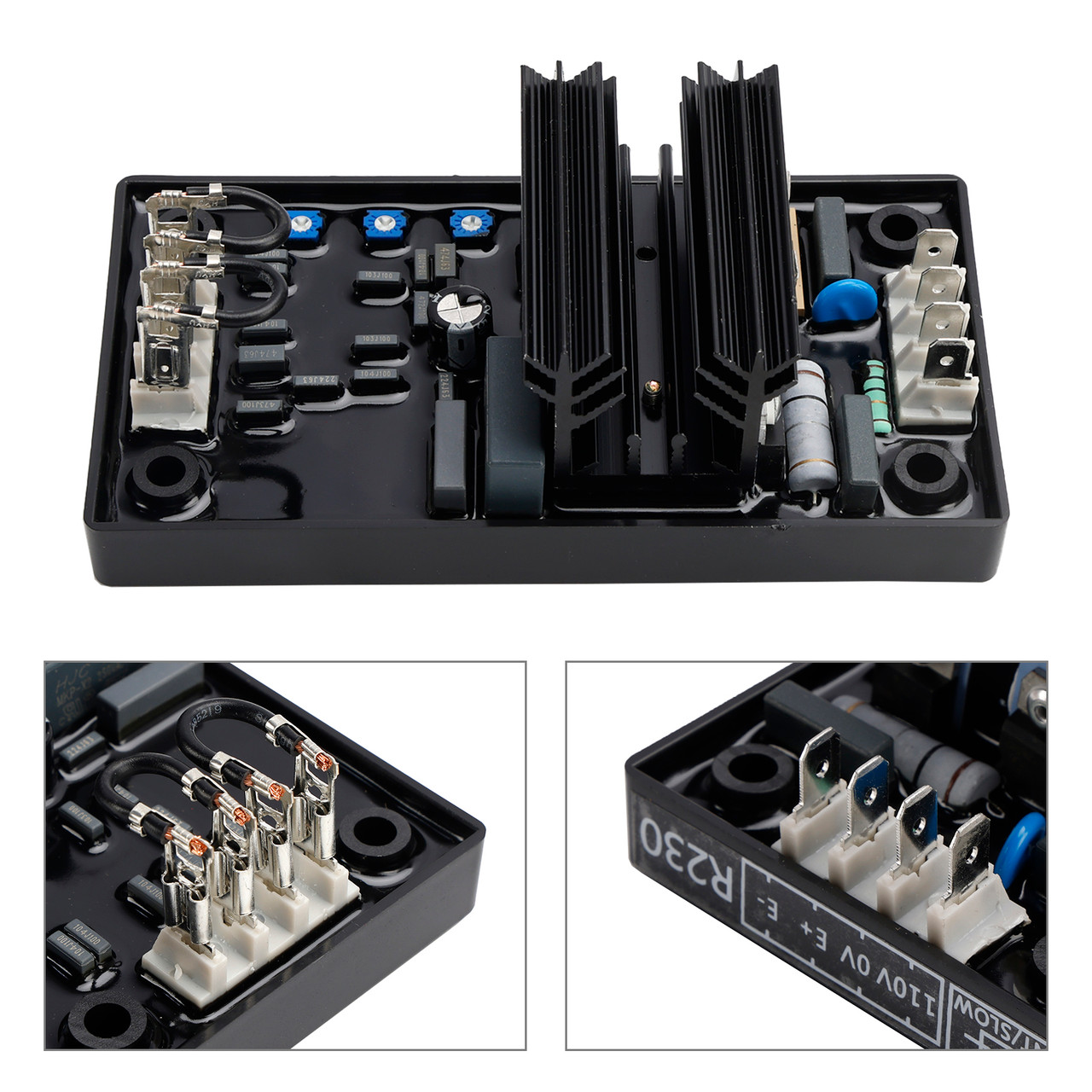

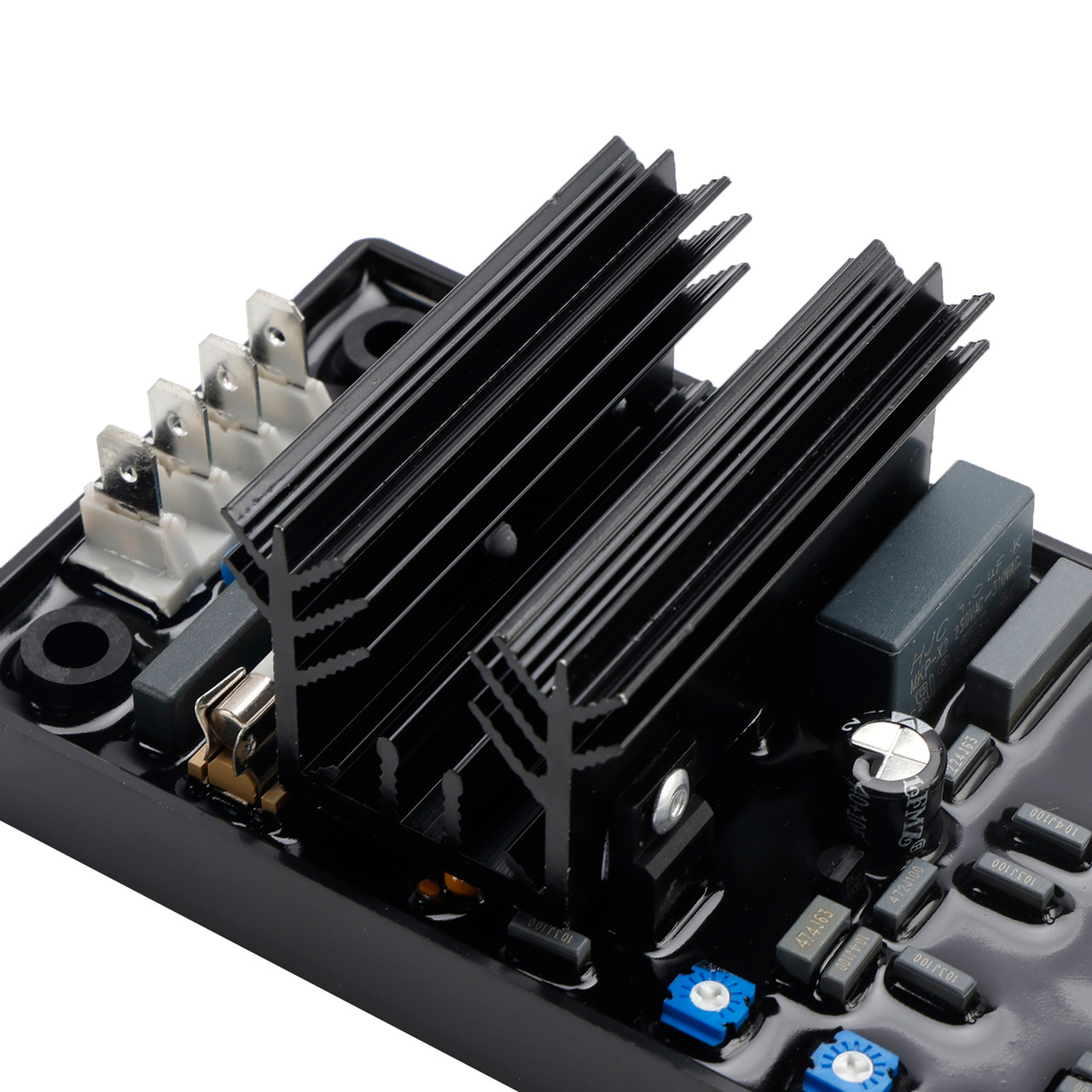

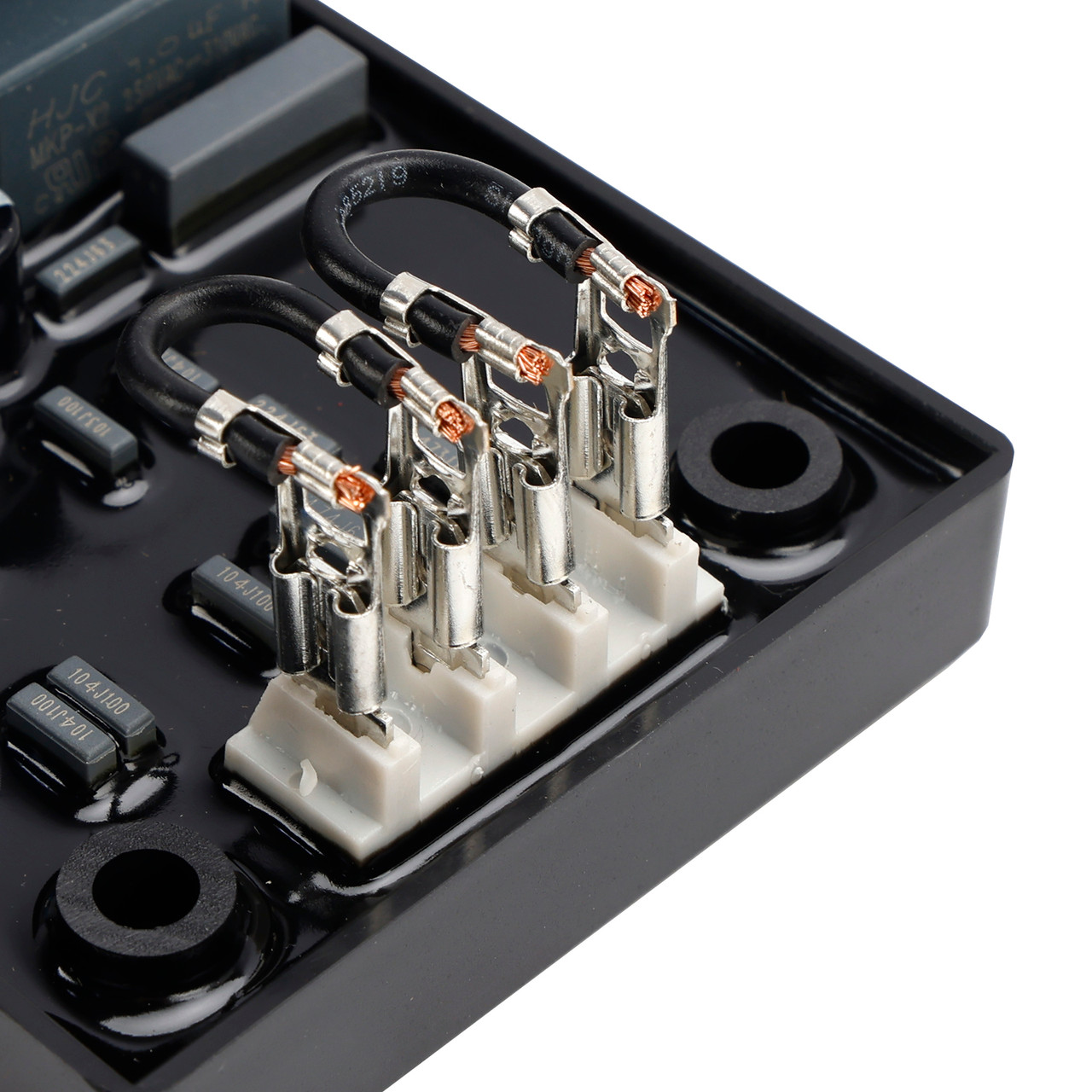

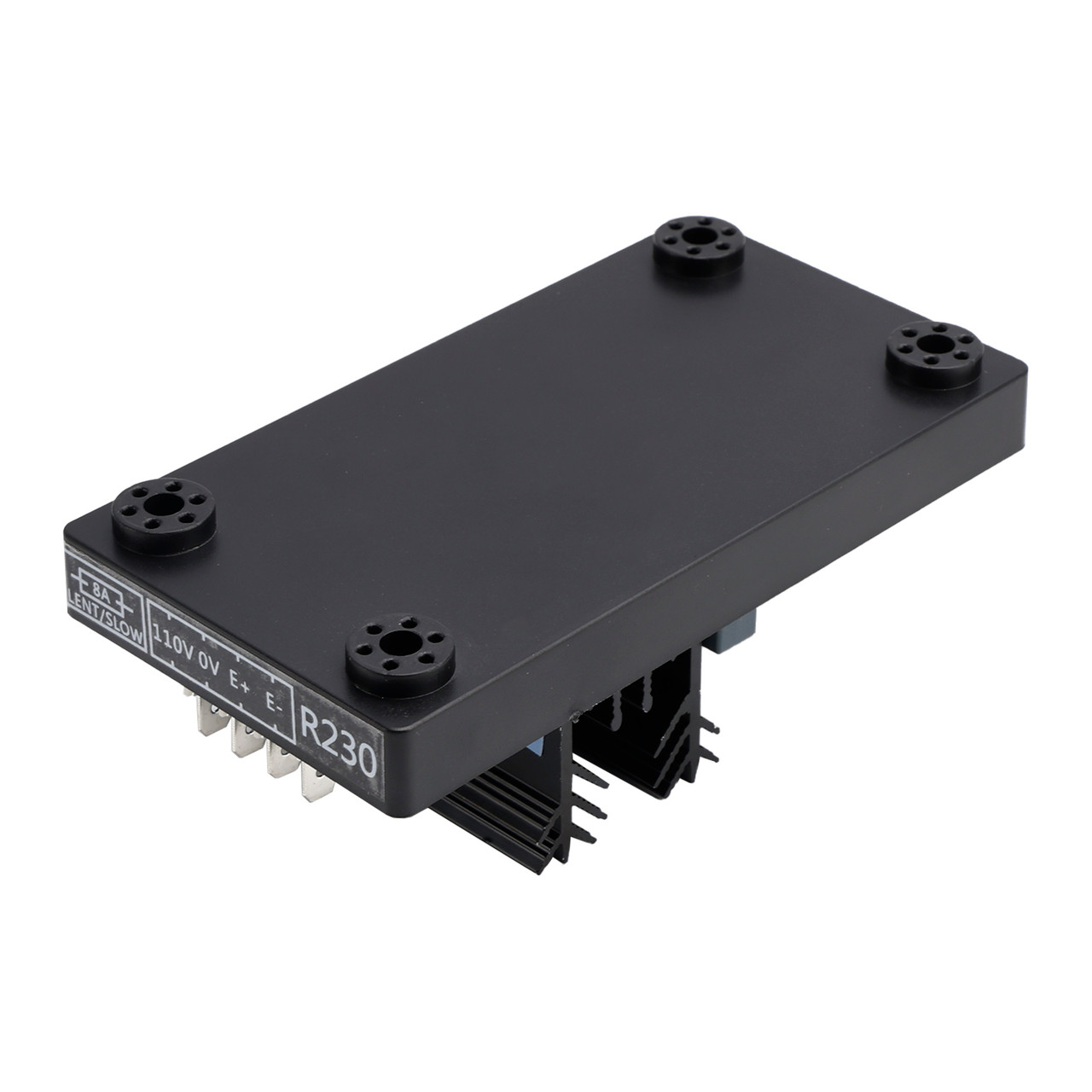

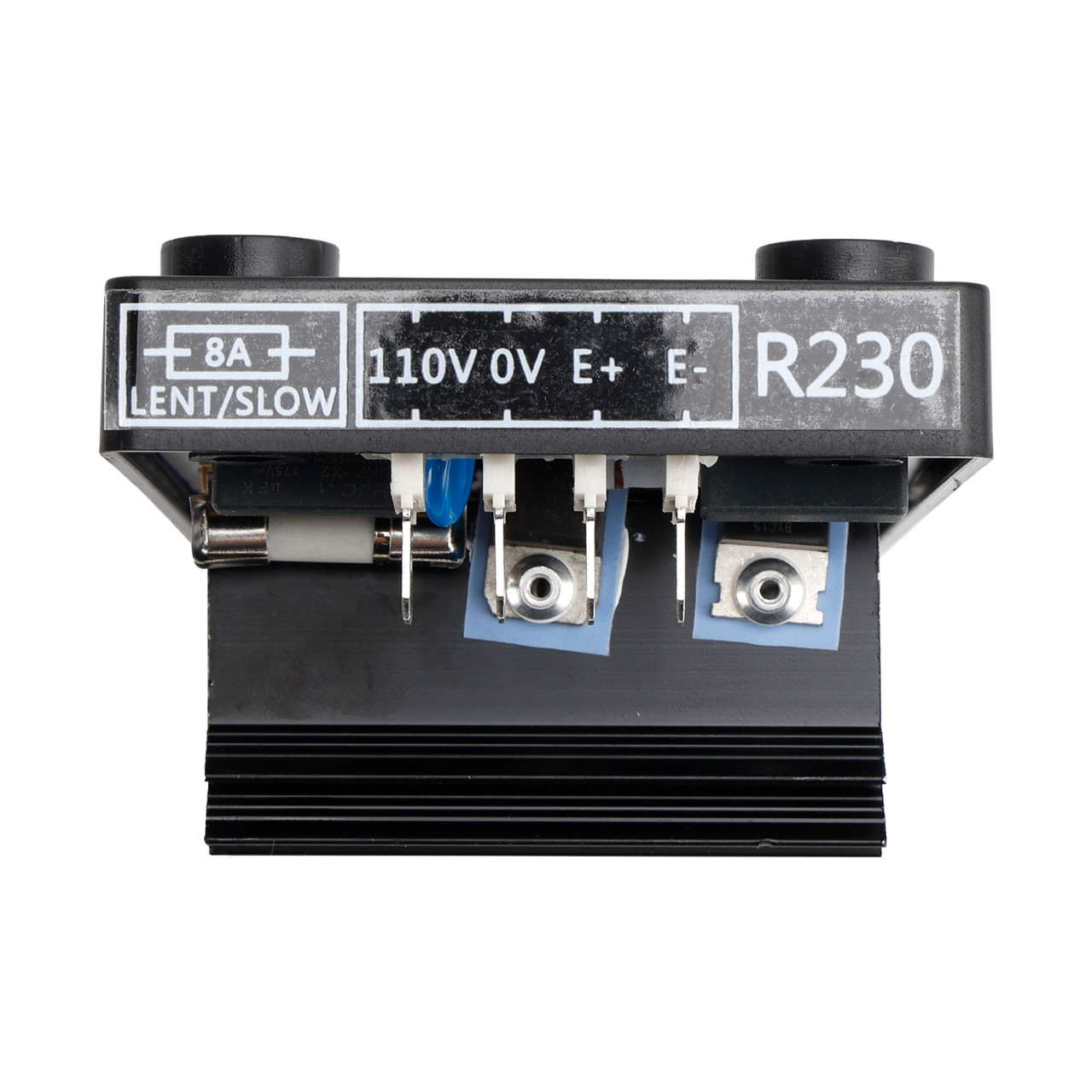

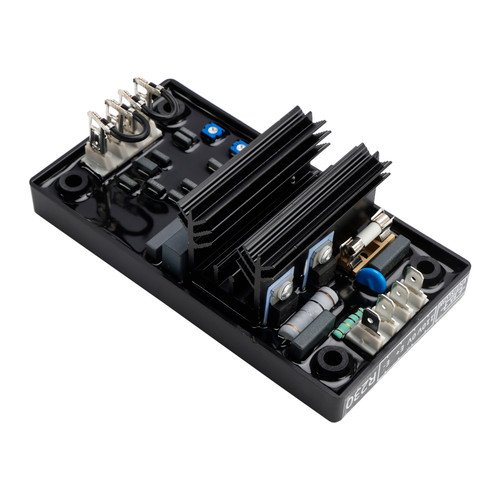

Automatic Voltage Regulator AVR R230 Compatible With Leroy Somer Generator
Feature:
1: Made of high quality material, durable and practical to use.
2: High temperature resistance, anti-aging, anti-corrosion and anti-mildew, safer.
3: Low frequency protection and EMI suppression circuit function.
4: Excitation current over-high protection function, low frequency protection, external voltage adjustment.
5: For use in 50/60 Hz Brushless Generators.
Specifics:
Condition: 100% Brand New
Power input: 0-140VAC 50/60HZ
Maximum excitation output: DC, 90V/6A/10S
Detection voltage input: 115VAC
Minimum residual excitation voltage: ¡Ý6V/25HZ
Voltage adjustment rate: ¡Ü¡À1%
Applicable voltage: 120VAC
¡À10% when external voltage trimming 1K/2W potentiometer
Working temperature: -40¡æ-65¡æ
Short circuit overcurrent capacity: 200%
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
3.If magnetization is required when the generator set is turned on, please remove the AVR voltage regulator and then magnetize it! In order to
prevent the AVR board from blowing up the tube and burning the board due to improper super-operation during the magnetization process.
Package Included:
1 X AVR R230
