Product Description
Featuresï¼?/span>
1.Direct replacement to your original unit
2.Plug-and-play, direct fit, easy installation.
3.Highest grade lamination materials.
4.Highest grade copper windings, resistant to 200 degrees Celsius.
5.Pick up pulsar coil included.
6.Connector included.
7.All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-05G00

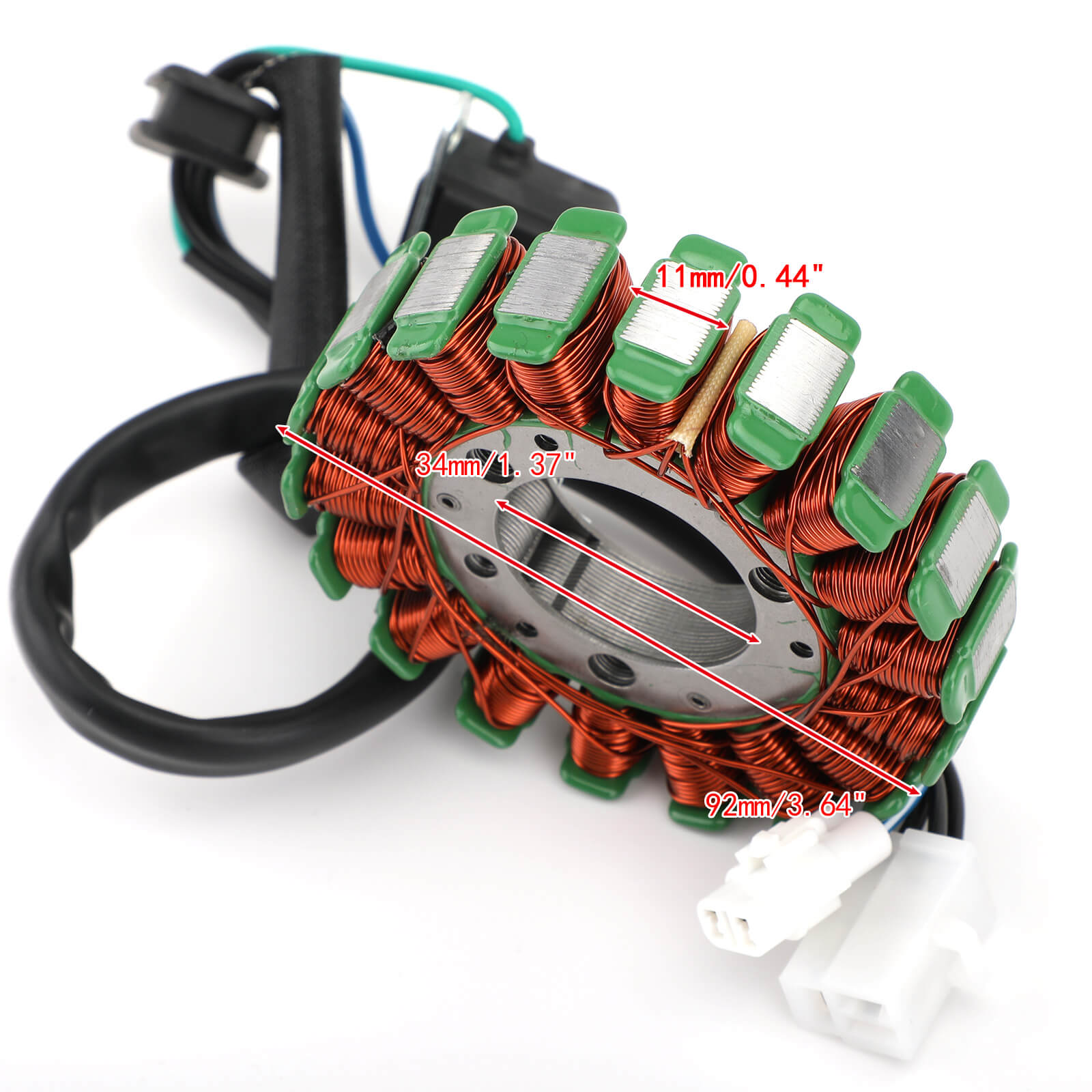

Dimensions :
Interior diameter : 34mm / 1.37"
Exterior diameter : 92mm / 3.64"
Thickness : 11mm / 0.44"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3+2
Fixation holes length: 33mm/1.30"
FITMENT:
For Suzuki LTF250 Ozark 2002-2014
For Suzuki LTZ250 Quadsport Z250 2004-2009
For Suzuki LTZ250 Quadsport 2004-2012
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
1.Before installing your new stator
2.Check the AC output of the stator.
3.Replace any burned or corroded connectors on stator and regulator/rectifier.
4.Check and repair any melted wiring.
5.Use hi-temp dielectric grease on all connectors
6.Our stator may use a different wire color code than your original.
7.All of the wires are installed in the correct order; please do not change any of the wiring configurations.
8.This stator is designed as a direct plug-in replacement and should be used as such.
9.When bolting stator in, always use locking compound.
10.If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
11.All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
