Product Description
FREE fast shipping for USA. International delivery may take longer.

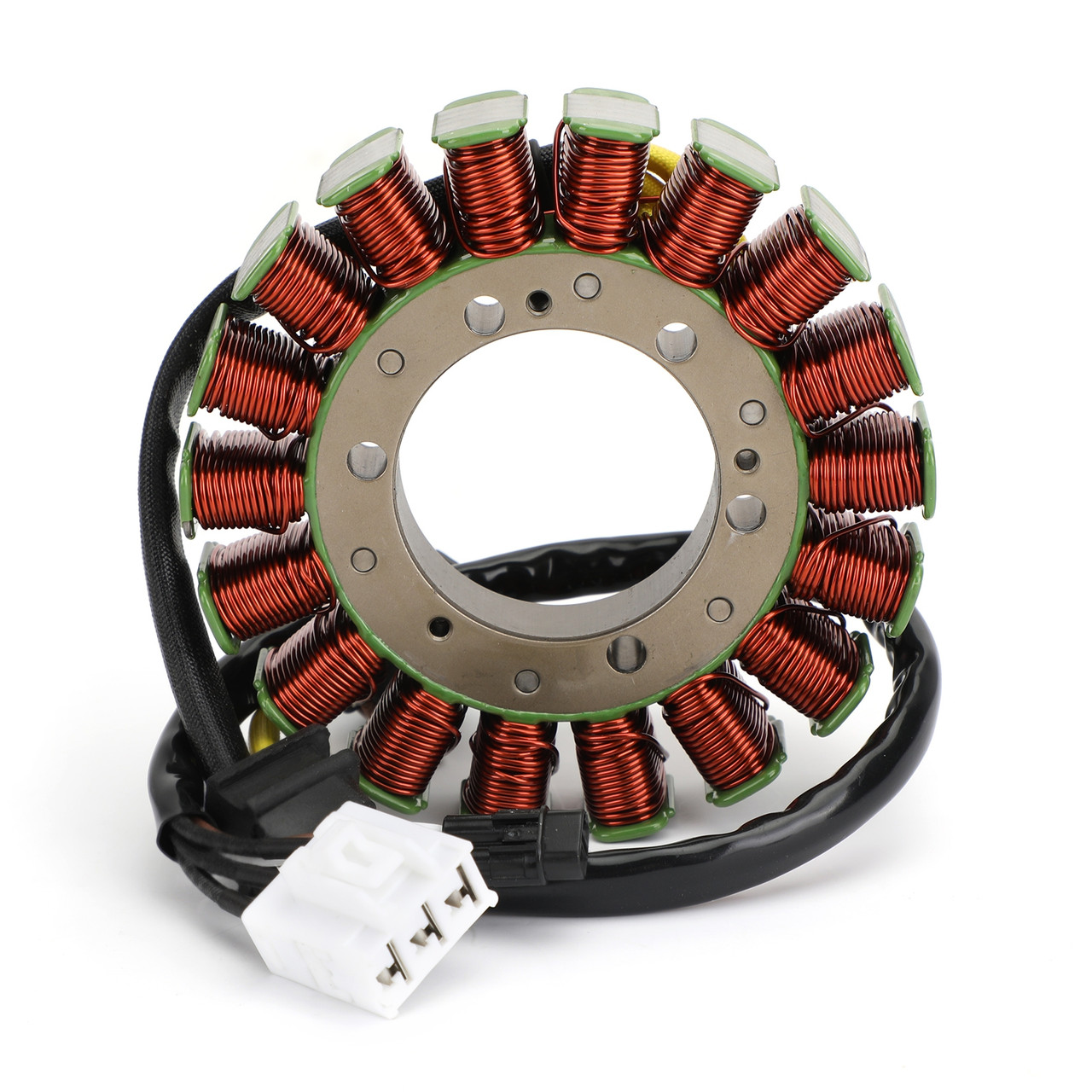

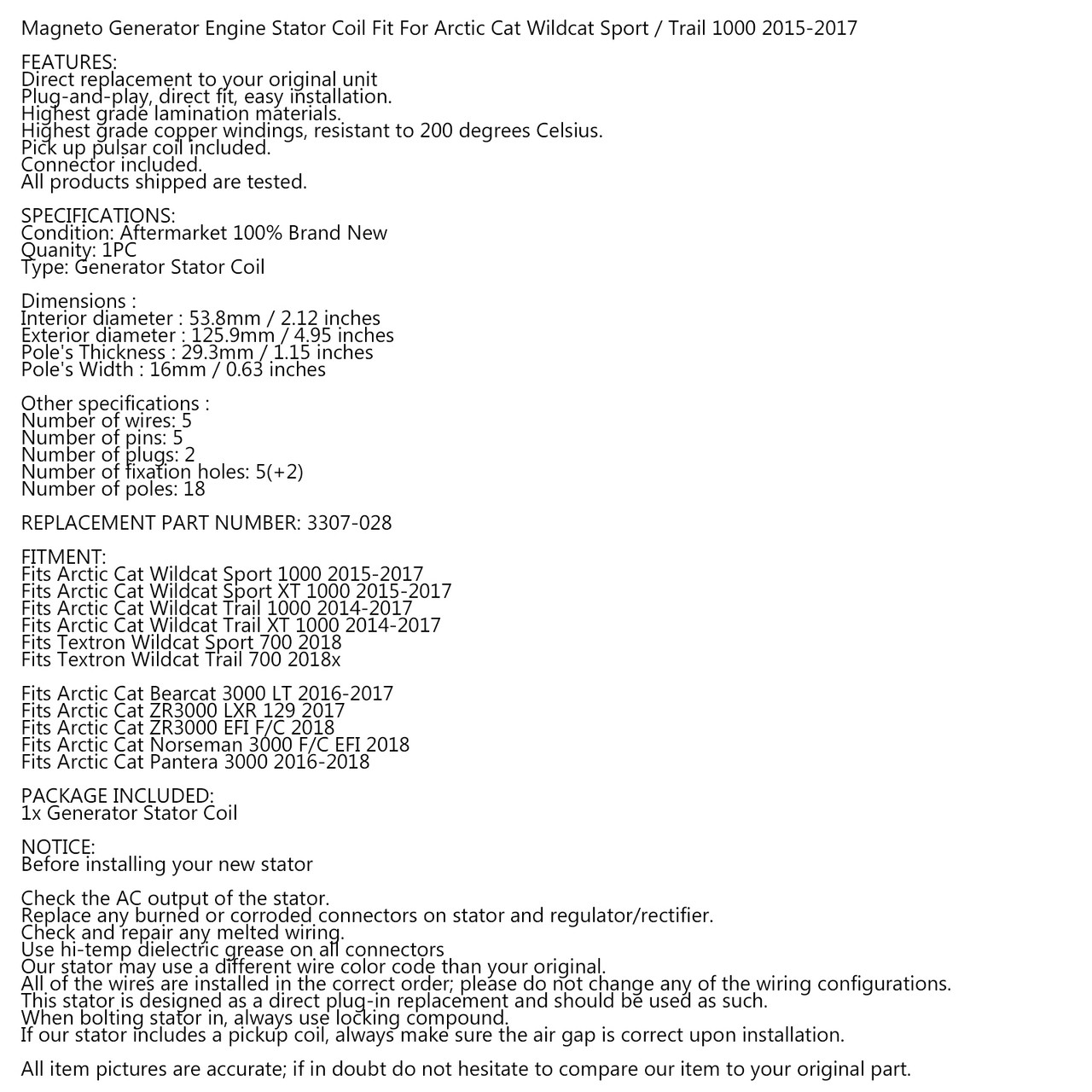

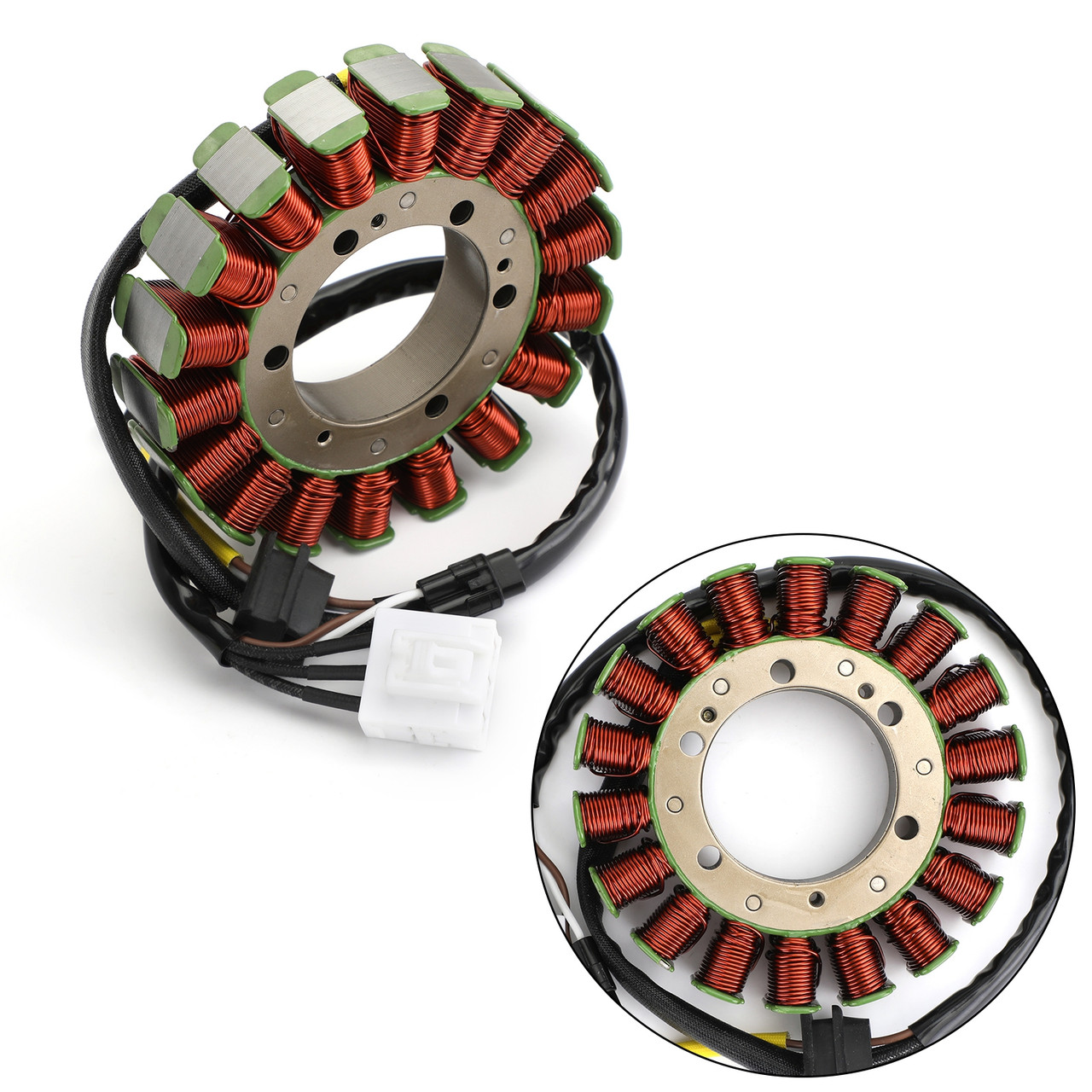

Magneto Generator Engine Stator Coil Fit For Arctic Cat Wildcat Sport / Trail 1000 2015-2017FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

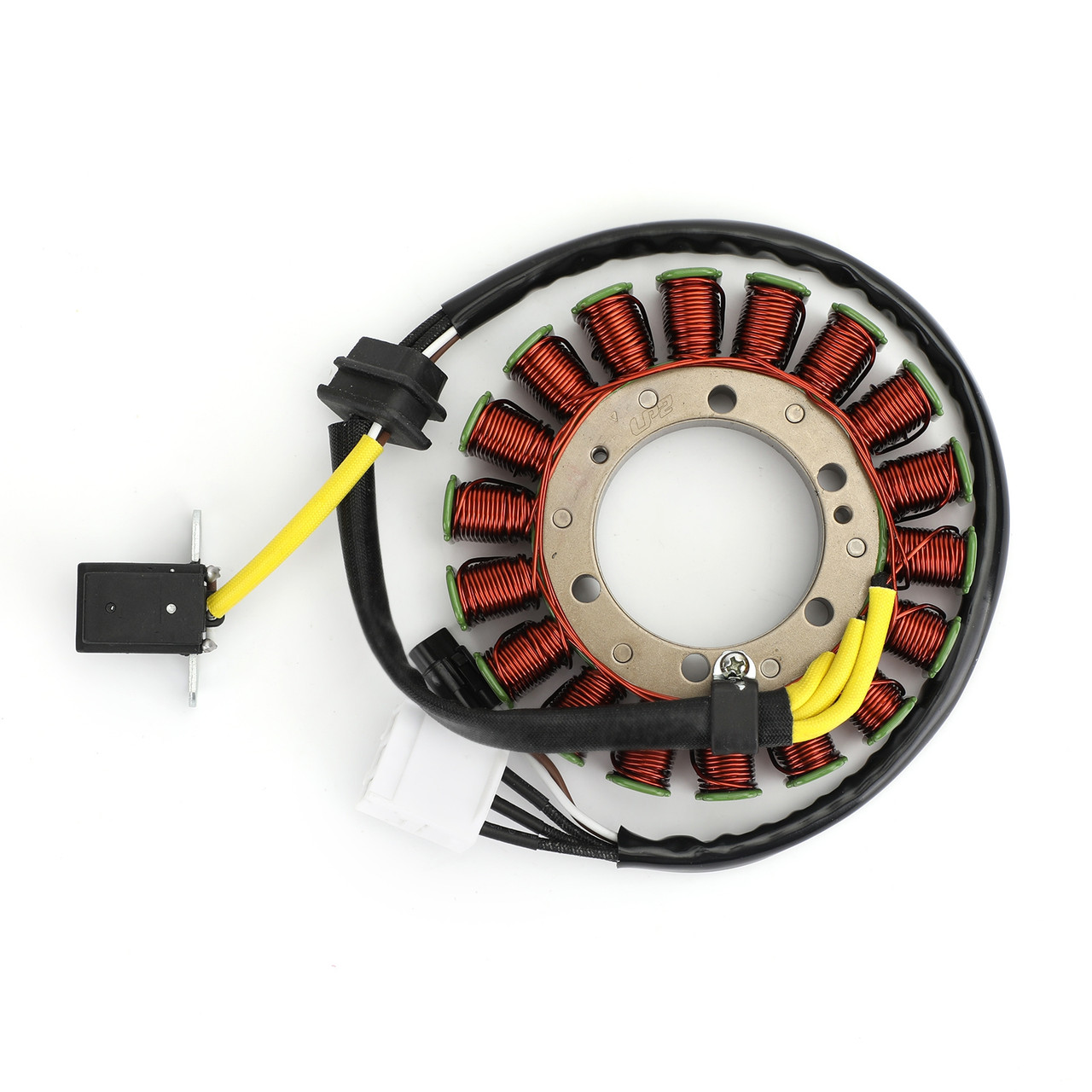

Pick up pulsar coil included.

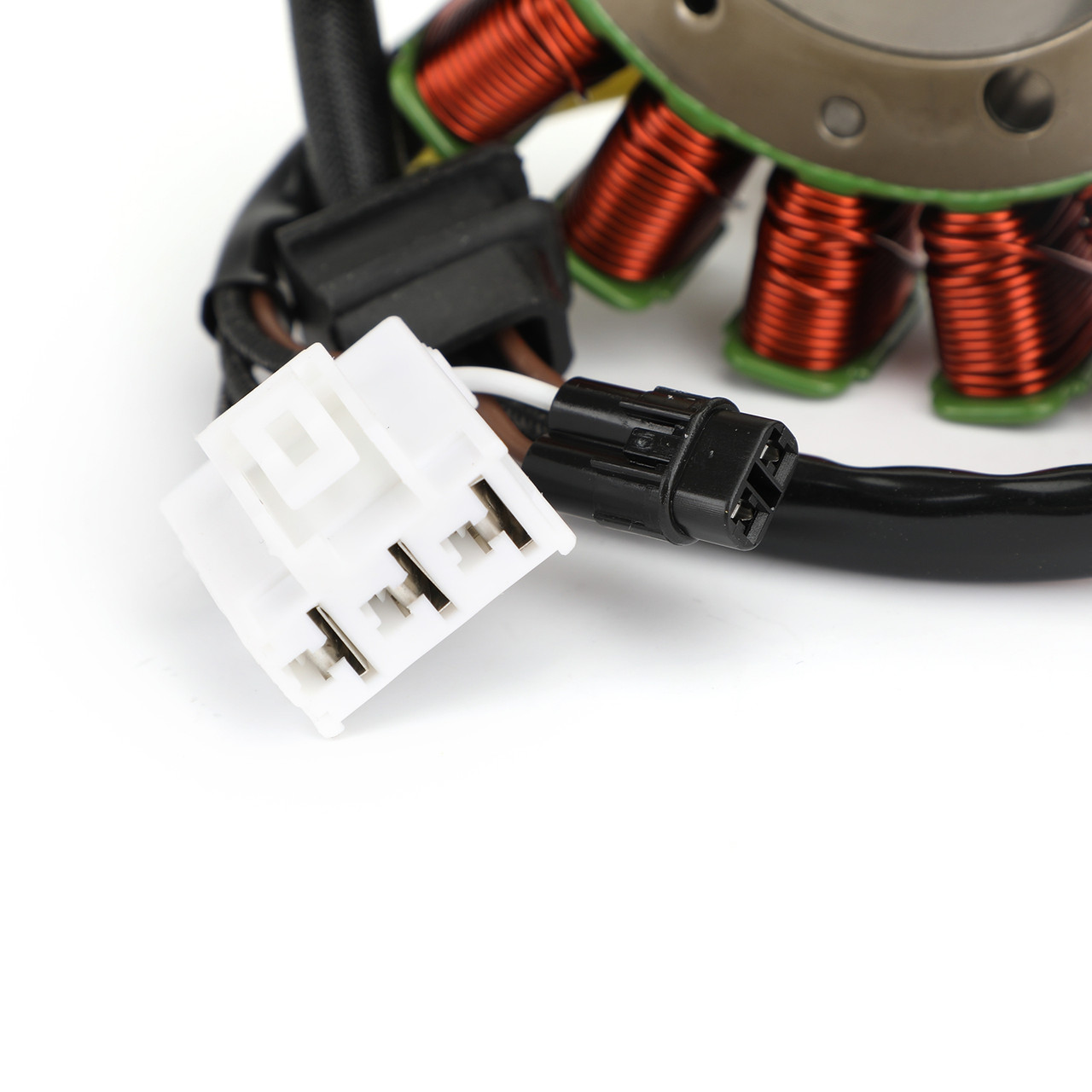

Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 53.8mm / 2.12 inches
Exterior diameter : 125.9mm / 4.95 inches
Pole's Thickness : 29.3mm / 1.15 inches
Pole's Width : 16mm / 0.63 inches
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 5(+2)
Number of poles: 18
REPLACEMENT PART NUMBER: 3307-028
FITMENT:
Fits Arctic Cat Wildcat Sport 1000 2015-2017
Fits Arctic Cat Wildcat Sport XT 1000 2015-2017
Fits Arctic Cat Wildcat Trail 1000 2014-2017
Fits Arctic Cat Wildcat Trail XT 1000 2014-2017
Fits Textron Wildcat Sport 700 2018
Fits Textron Wildcat Trail 700 2018x
Fits Arctic Cat Bearcat 3000 LT 2016-2017
Fits Arctic Cat ZR3000 LXR 129 2017
Fits Arctic Cat ZR3000 EFI F/C 2018
Fits Arctic Cat Norseman 3000 F/C EFI 2018
Fits Arctic Cat Pantera 3000 2016-2018
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
