Product Description
47mm Cylinder Piston Gasket Top End Rebuild Kit For Polaris Outlaw 90, Sportsman 90 2007-2016Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

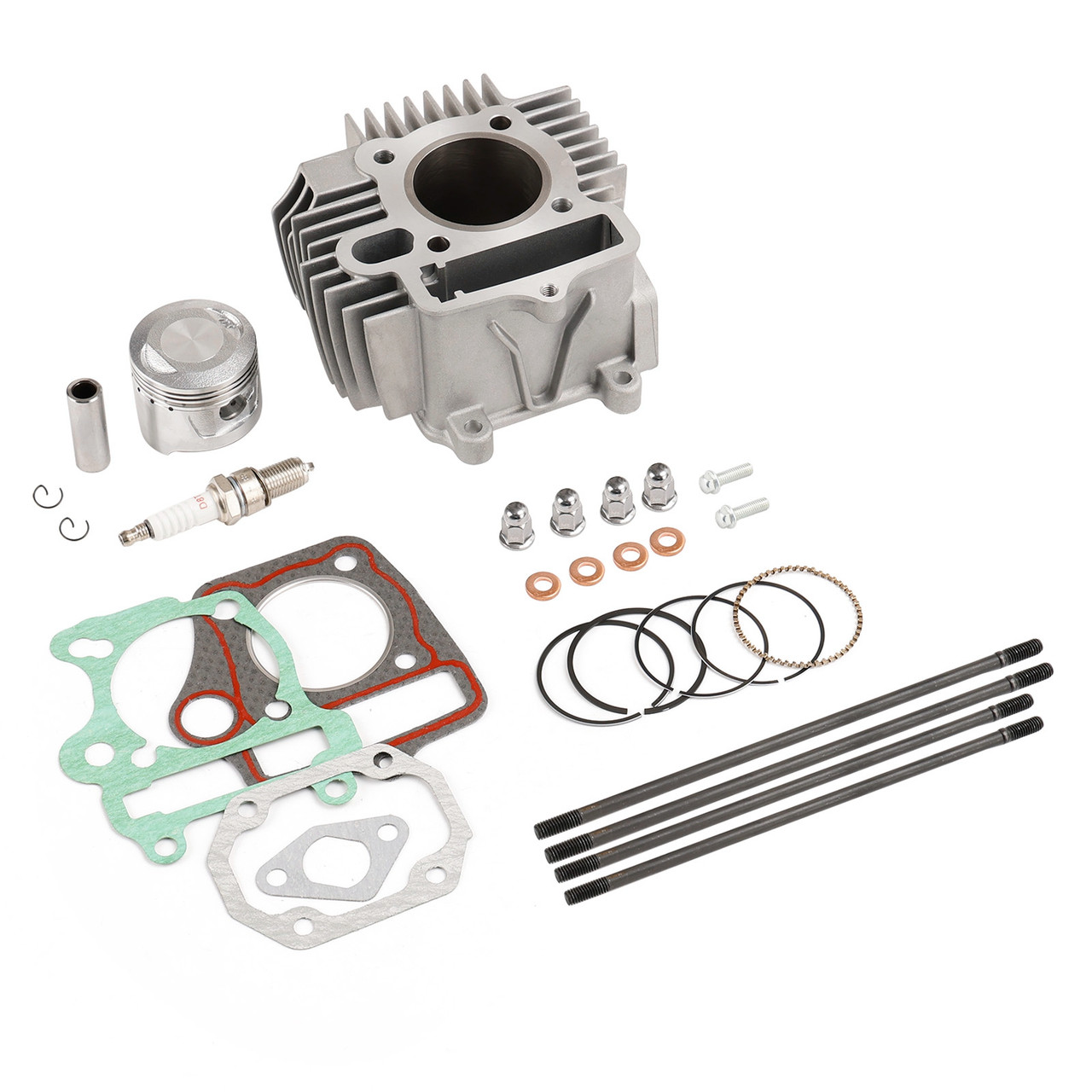

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 47mm x 51.8mm stroke, 13mm steel piston pin.
Compression Ratio: 9.2:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 89cc
Bore Type: Standard Bore
Bore diameter: STD 47mm
Stroke: 51.8mm
Pin diameter: 13mm
Replacement Part Number:
Cylinder: 0454934, 0453533
Cylinder Base Gasket: 0453418, 0455335
Cylinder Head Gasket: 0453427, 0455389, 0455391
Piston (Std): 0453430
Pin, Piston: 0453431
Piston Ring Set (Std): 0453429
Circlips, piston: 0453432
Chain Tensioner Gasket: 0453438
Cylinder Head Cover Gasket: 0455434, 0453578
Cylinder Stud Bolt: 0453613
Cylinder Stud Bolt: 0453616
Round Head Nut (Zinc): 0453553, 0450717
Cylinder Head Washer: 0453510
Screw(2): 0453520
Spark Plug: 0453034
Fits Models:
Fit for Polaris Outlaw 90 2007-2016
Fit for Polaris Sportsman 90 2007-2016
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1x Cylinder
2x Piston
2x Piston Ring Set
2x Wristpin
2x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cylinder Head Cover Gasket
1x Chain Tensioner Gasket
4x Cylinder Studs
4x Cylinder Stud Nuts
4x Cylinder Stud Washers
2x Cylinder Screws
1x Spark plug
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Shipping
1. Free shipping
2. Parcel will be delivered 2-6 working day
3. Parcel will via USPS or FedEx from USA warehouse
Warranty:
Guarantee Period: 1 Years
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
