Product Description

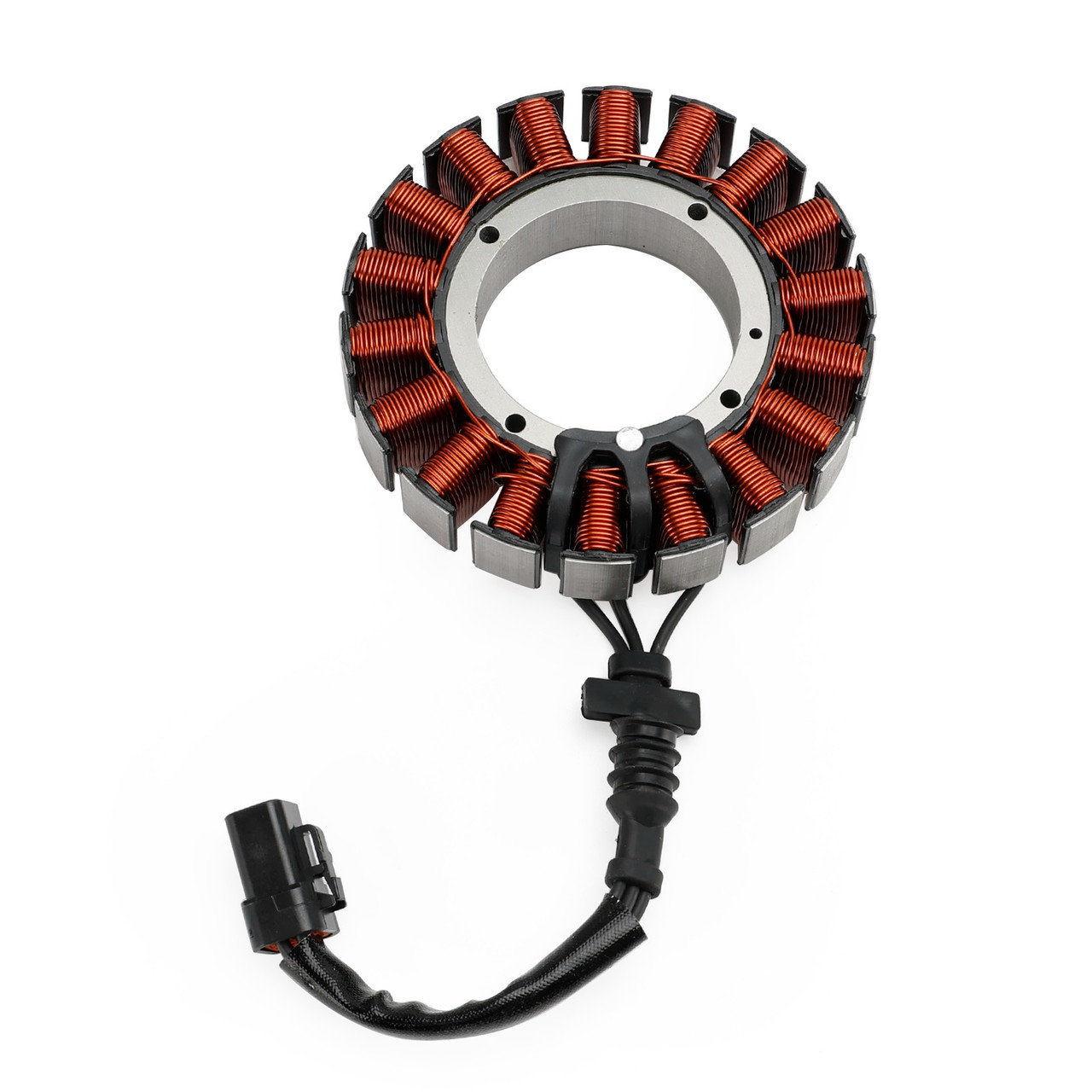

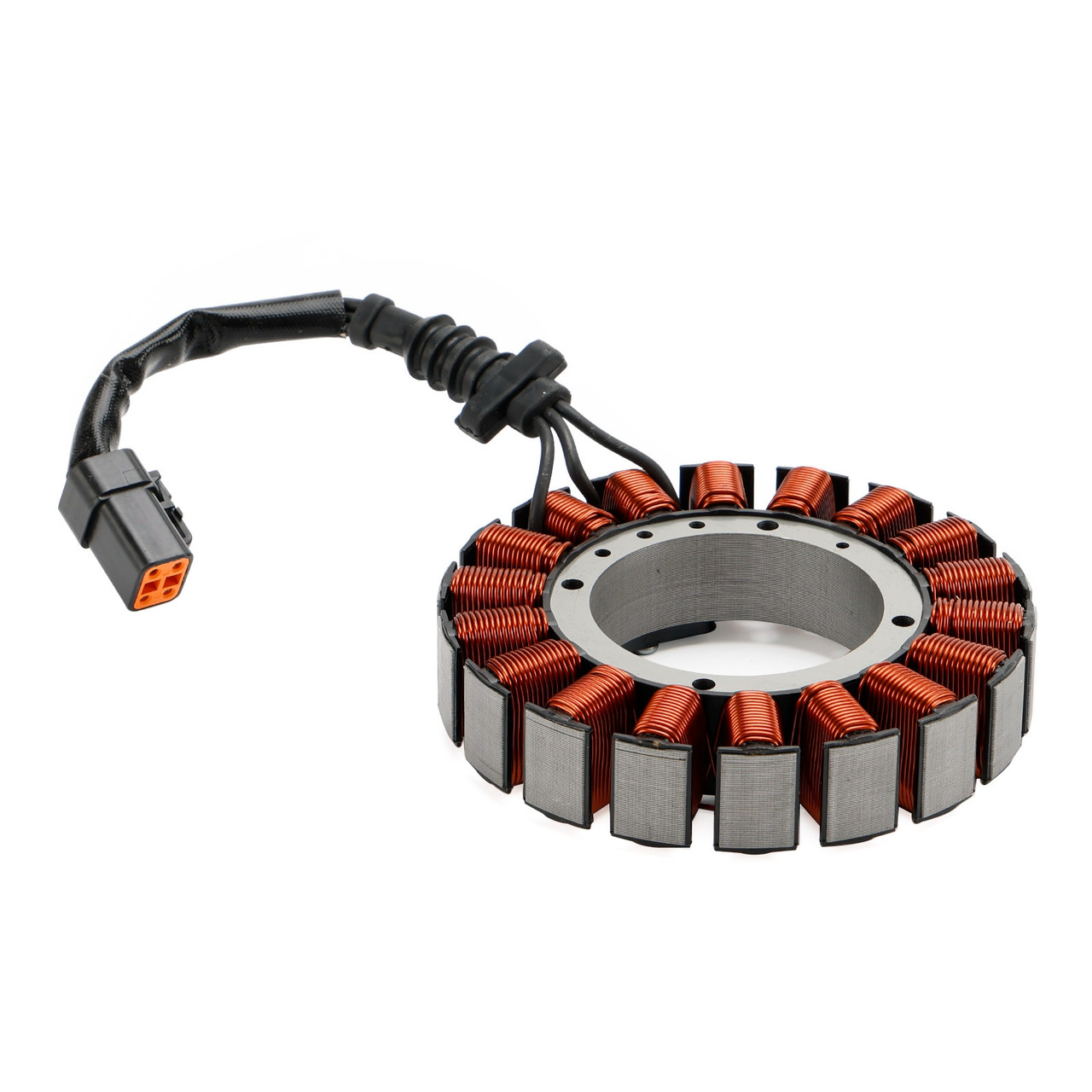

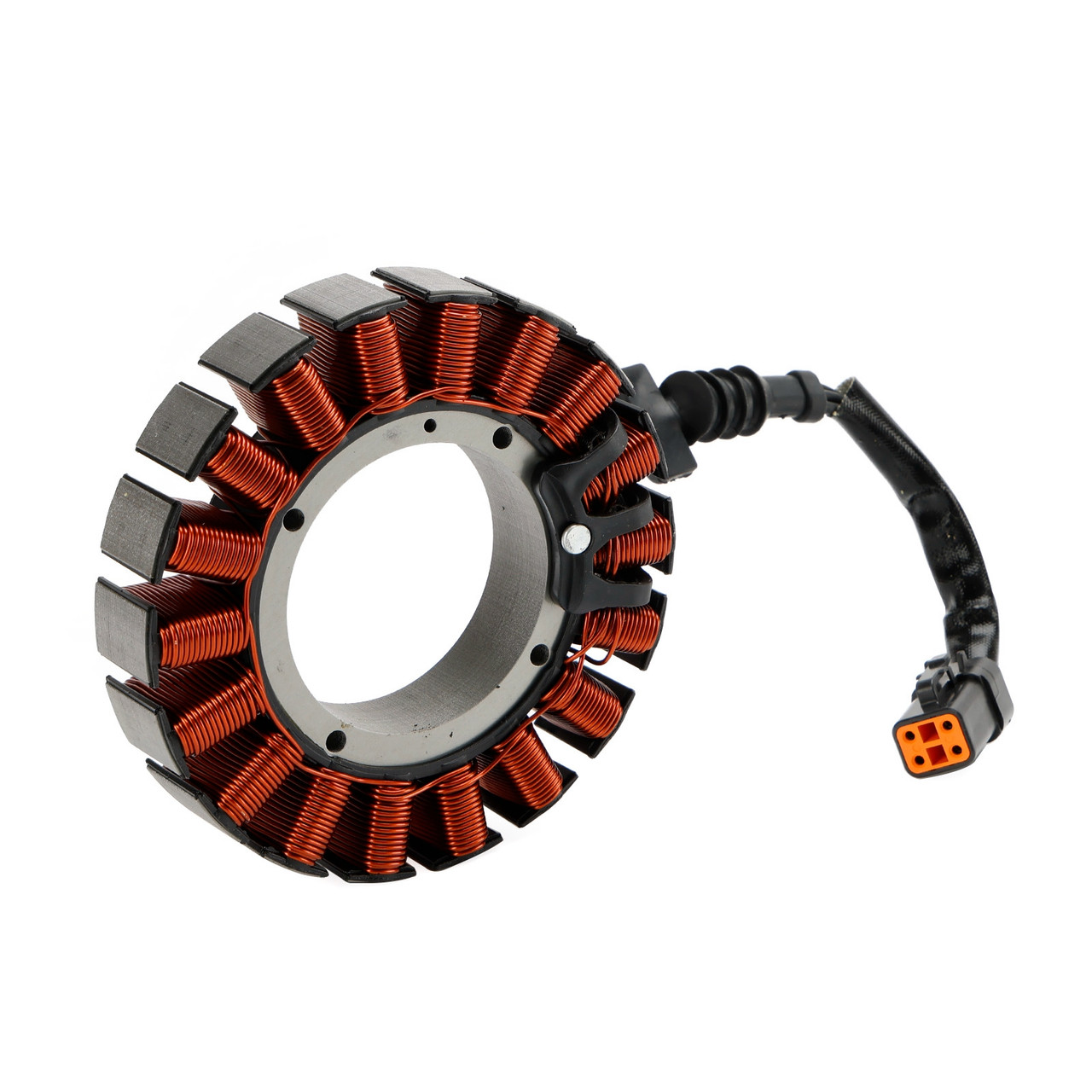

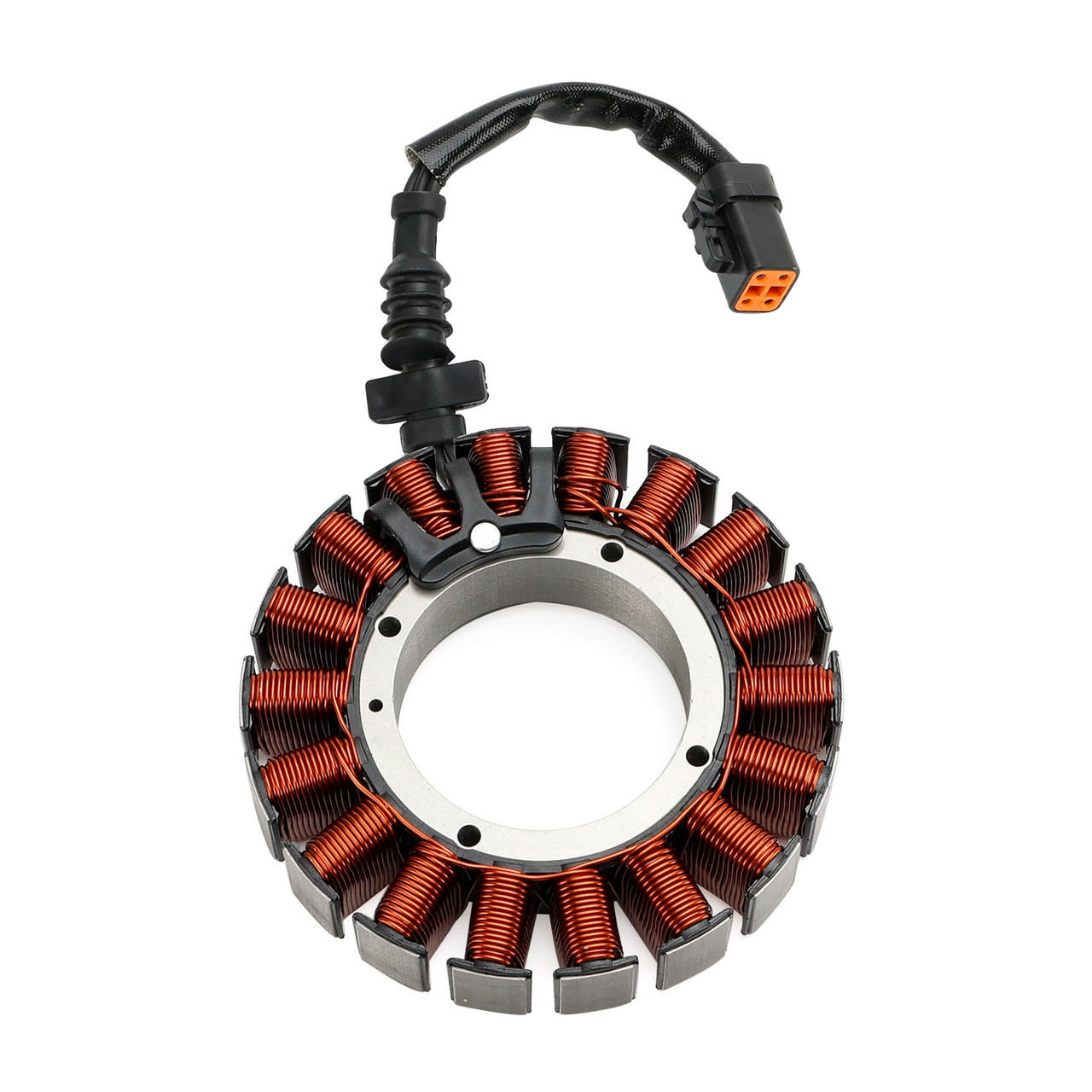

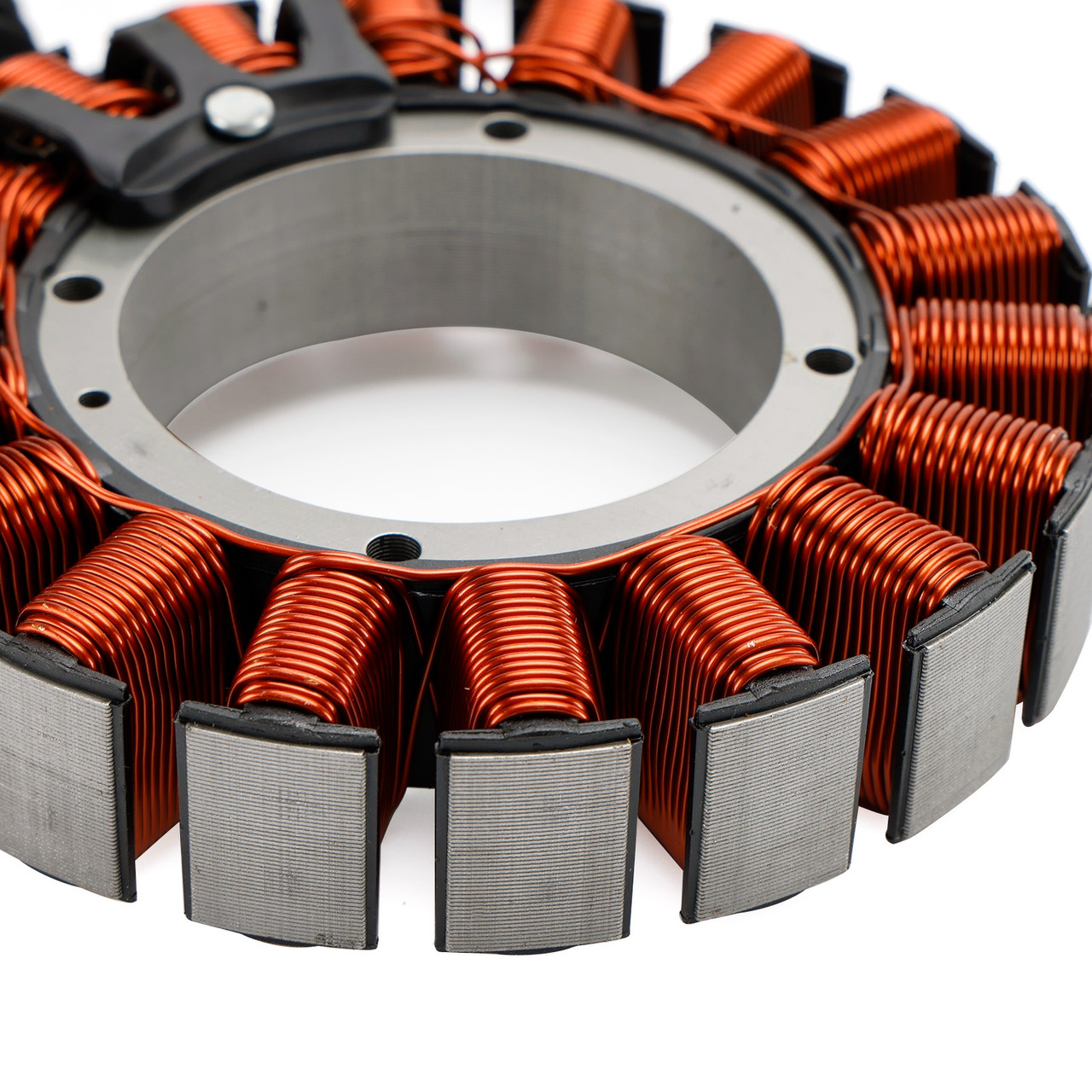

Stator Generator Coil 40Amp 12V 3-Phs Fit for Softail FXST and Dyna FXD 2007 # 30017-07Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Charging Coil
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Replacement Part Number:
30017-07
Fits Models:
Fit for FLSTC 1584 Heritage Softail Classic 2007
Fit for FLSTF 1584 Fat Boy 2007
Fit for FLSTN 1584 Softail Deluxe 2007
Fit for FLSTSC 1584 Softail Springer Classic 2007
Fit for FXST 1584 Softail 2007
Fit for FXSTB 1584 Softail Night Train 2007
Fit for FXSTC 1584 Softail Custom 2007
Fit for FXSTD 1584 Softail Deuce 2007
Fit for FXD 1584 Dyna Super Glide 2007
Fit for FXDB 1584 Dyna Street Bob 2007
Fit for FXDC 1584 Dyna Super Glide Custom 2007
Fit for FXDL 1584 Dyna Low Rider 2007
Fit for FXDSE 1800 Dyna Screamin Eagle 2007
Fit for FXDWG 1584 Dyna Wide Glide 2007
Fit for FXSTSSE 1800 Softail Springer Screamin Eagle 2007
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Shipping
1. Free shipping
2. Parcel will be delivered 3-8 working day
3. Parcel will arrive via Fedex or USPS
Warranty:
Guarantee Period: 1 Year
Guaranteed Fitment: Always the correct part means that you can always order with confidence.
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
