Product Description
12 Coil Magneto Generator Stator Fit for Piaggio Fly ZIP ET4 LX 50 4T Aprilia Sportcity 50 2VFeatures:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil
other specifications:
Number of wires: 2
Number of plugs: 1x 2-Pin female Plug
Number of pins: 2
Number of fixation holes: 2
Number of poles: 12
Please compare the number of pins and plugs with the old part before purchasing.

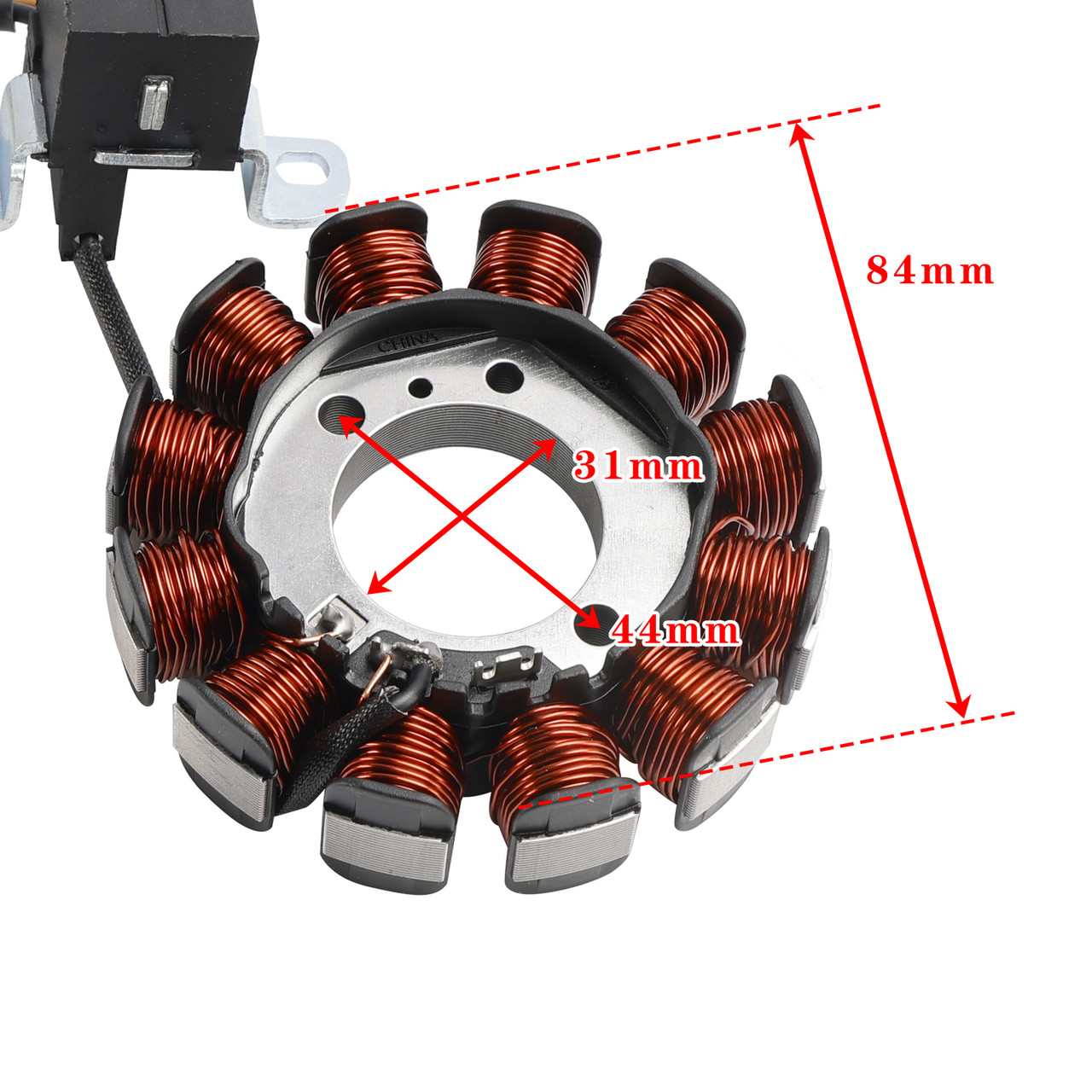

Size:
Inner diameter: 31 mm
Outer diameter: 84 mm
Mount hole spacing center to center: 44 mm
Replacement Part Number:
AP8551076
48201400
969228
(Use the part number to verify fitment to your application. )
Fits Make/Model/Year:
Fit for Aprilia Scarabeo 100 - 2001-2009
Fit for Aprilia Scarabeo 100 E3 - 2010-2014
Fit for Aprilia Scarabeo 100 E3 NET - 2009-2010
Fit for Aprilia Scarabeo 50 4V - 2002-2006
Fit for Aprilia Sportcity 50 4T 2V E2 One - 2008-2010
Fit for Derbi Atlantis 100 AC 4T - 2004-2006
Fit for Derbi Atlantis 50 AC 4T - 2007
Fit for Derbi Boulevard 100 - 2010-2011
Fit for Derbi Boulevard 50 4T - 2009
Fit for Italjet Torpedo 50 4T - 2001-2003
Fit for Malaguti Centro 50 4T - 2008
Fit for Malaguti Ciak 50 Master - 2005-2006
Fit for Piaggio Fly 100 - 2006-2014
Fit for Piaggio Fly 50 2V 4T - 2008-2017
Fit for Piaggio Fly 50 4T - 2005-2010
Fit for Piaggio Free 100 - 2002-2003
Fit for Piaggio Liberty 50 - 2000-2014
Fit for Piaggio Liberty 50 Delivery TNT - 2009
Fit for Piaggio Liberty 50 Moc & Elle - 2009-2011
Fit for Piaggio Liberty 50 PTT - 2004-2005
Fit for Piaggio Liberty 50 PTT - 2009-2010
Fit for Piaggio Liberty 50 RST - 2004-2018
Fit for Piaggio Liberty 50 Sport - 2006-2008
Fit for Piaggio Zip 100 - 2006-2010
Fit for Piaggio Zip 50 4T - 2000-2016
Fit for Piaggio Zip 50 4T Special Edition - 2013-2014
Fit for Vespa ET4 50 - 2000-2005
Fit for Vespa LX 50 4T - 2005-2008
Fit for Vespa LX 50 4V 4T - 2009
Fit for Vespa Primavera 50 4T 3V Touring - 2013-2018
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 12-Pole Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
