Product Description

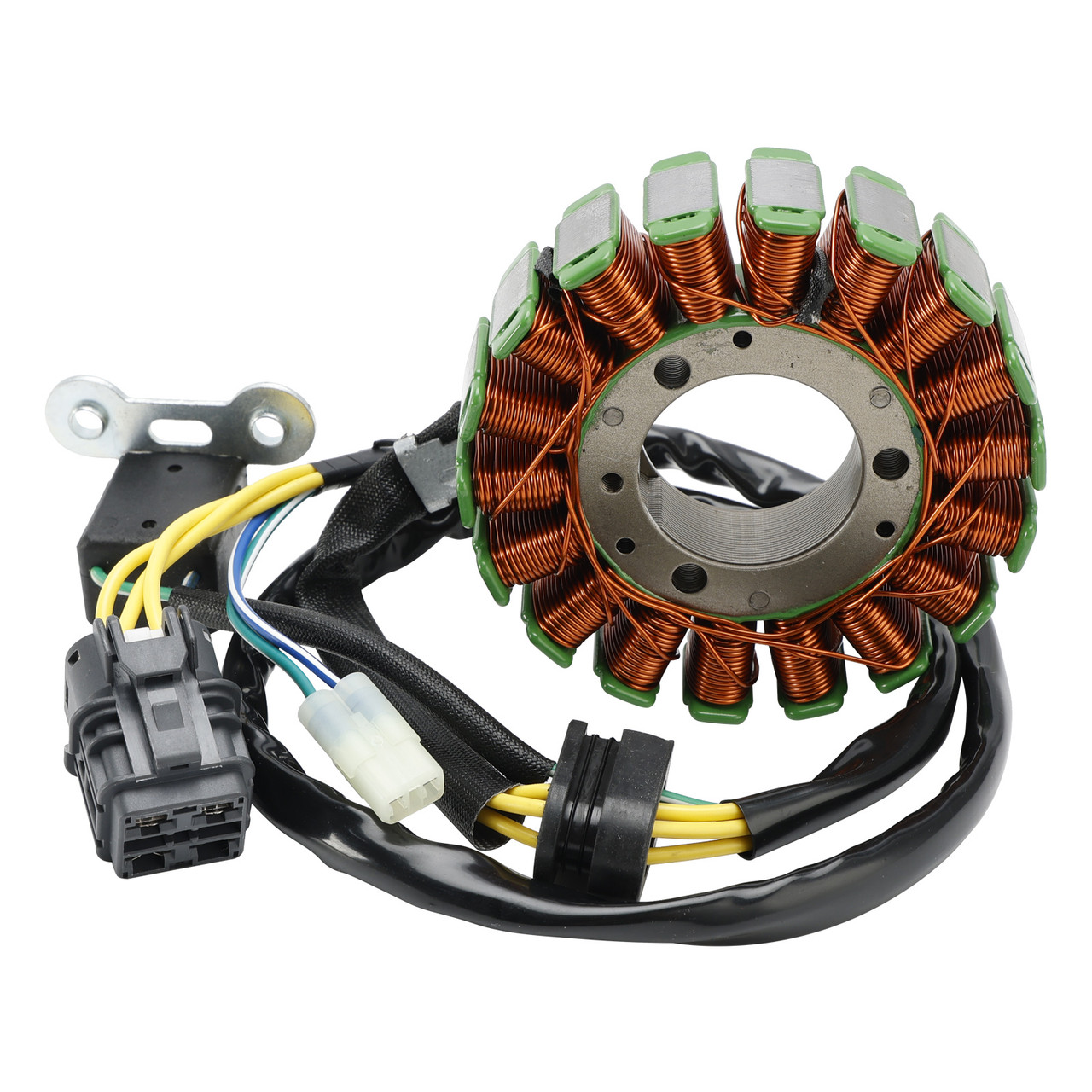

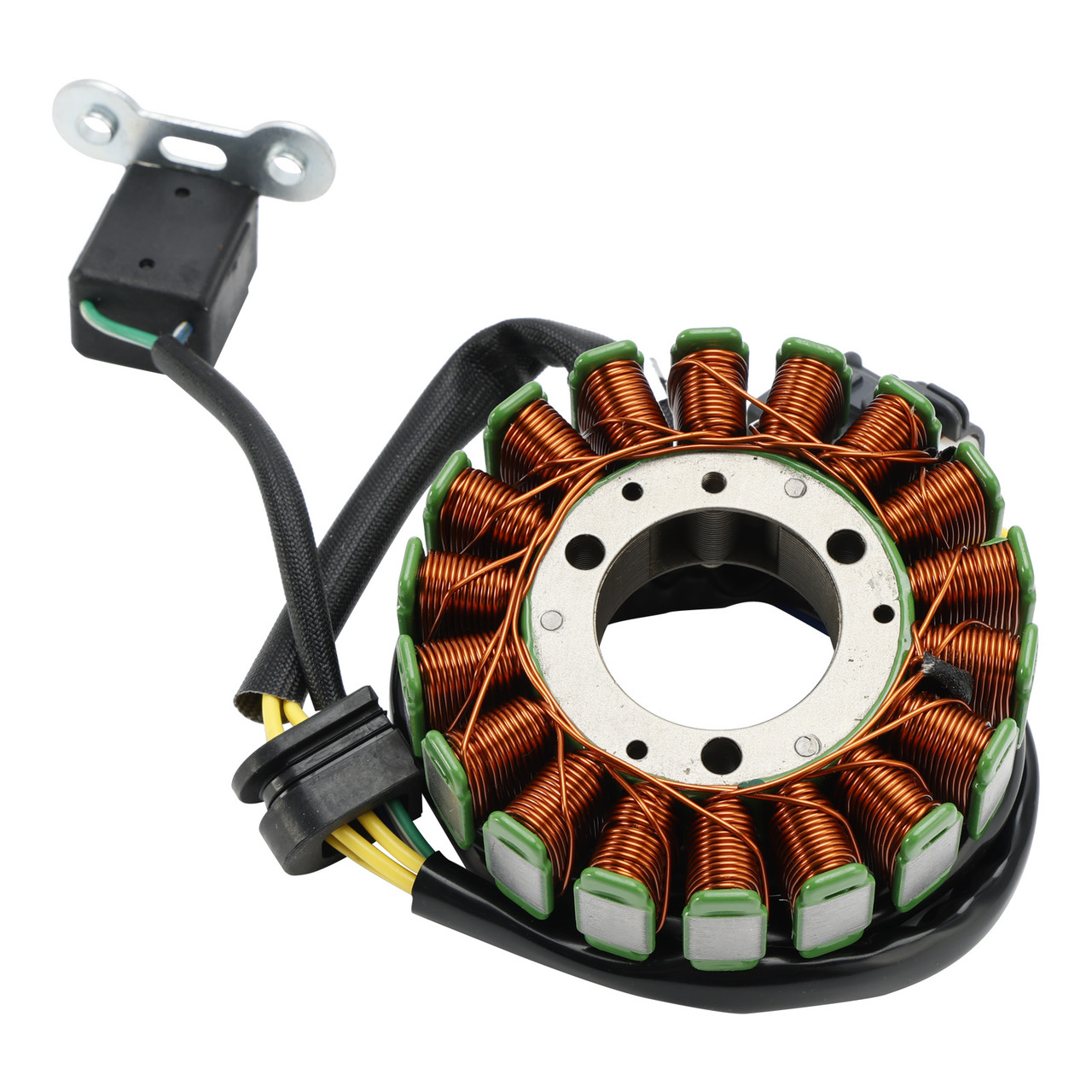

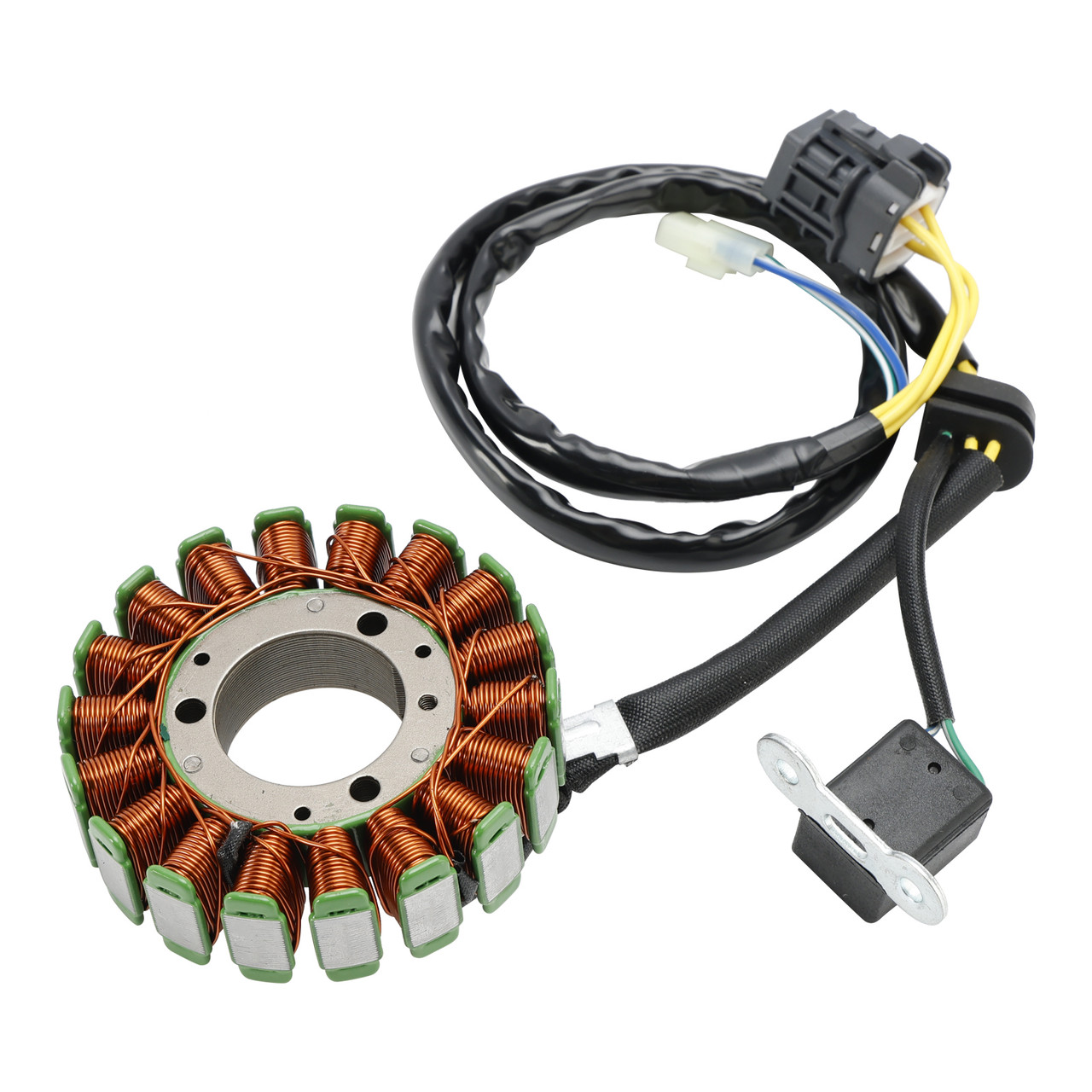

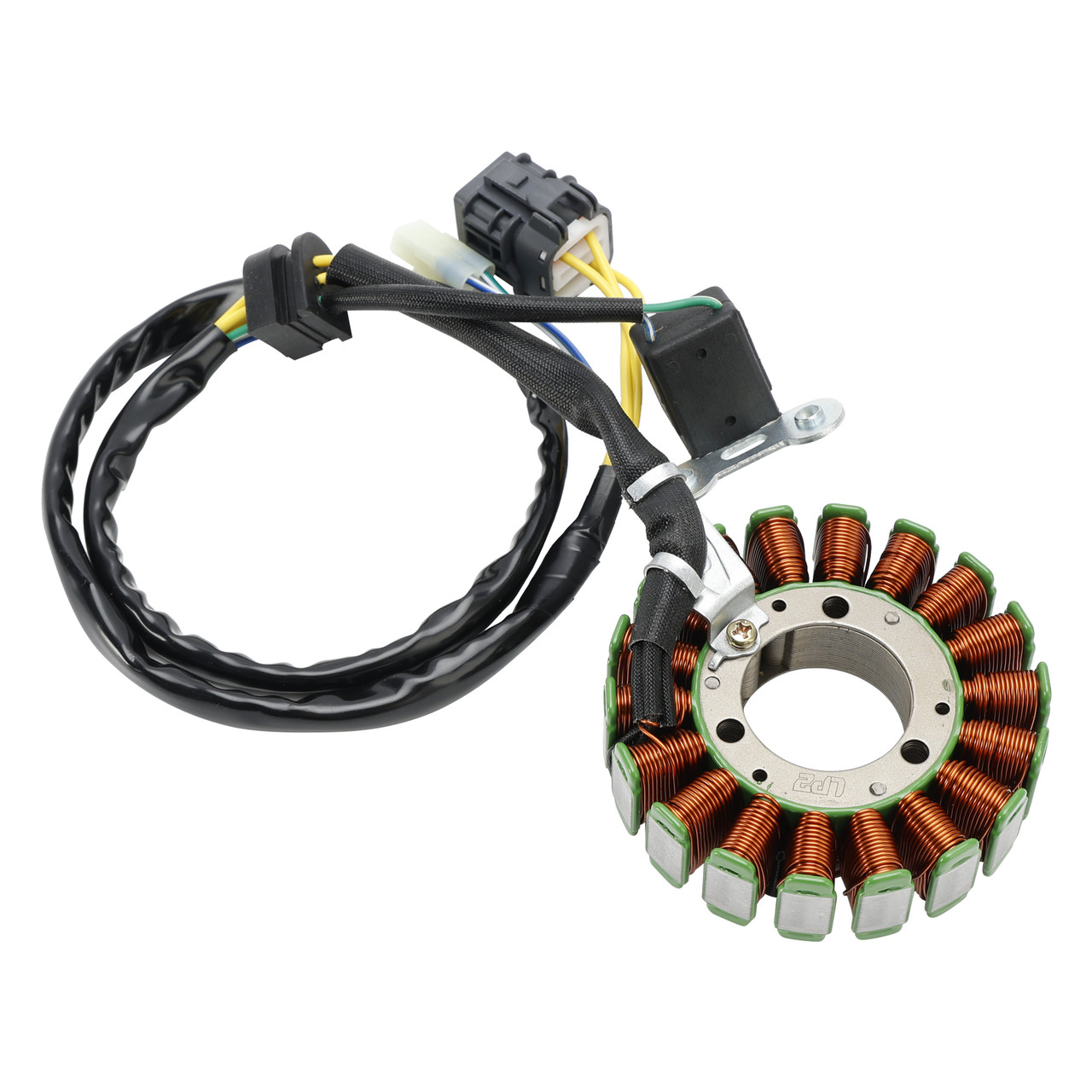

Magneto Generator Stator Fit for Kymco KXR 250 MAXXER 250 MXU 250 (D406)- 31120-LBA7-90AFeatures:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Dimensions:
Exterior diameter: 92mm
Interior diameter: 35mm
Replacement Part Number:
31120-LBA7-90A
31120-LBA7-90B
Fits Make/Model/Year:
31120-LBA7-90A(D406)
Fit for Kymco KXR250 2006-2015
Fit for Kymco Maxxer 250 2010-2016
Fit for Kymco MXU250 2004-2016
Fits Carbureted Model Only (D406)!
31120-LBA7-90B(D414)
Fit for Kymco KXR 250 4T EURO II- MAXXER 250 4T EURO
Fit for Kymco Maxxer 250 SE EURO II
Fit for Kymco MXU 250 4T EUROII- MXU 250 4T EURO II URBAN QUAD
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
