Product Description

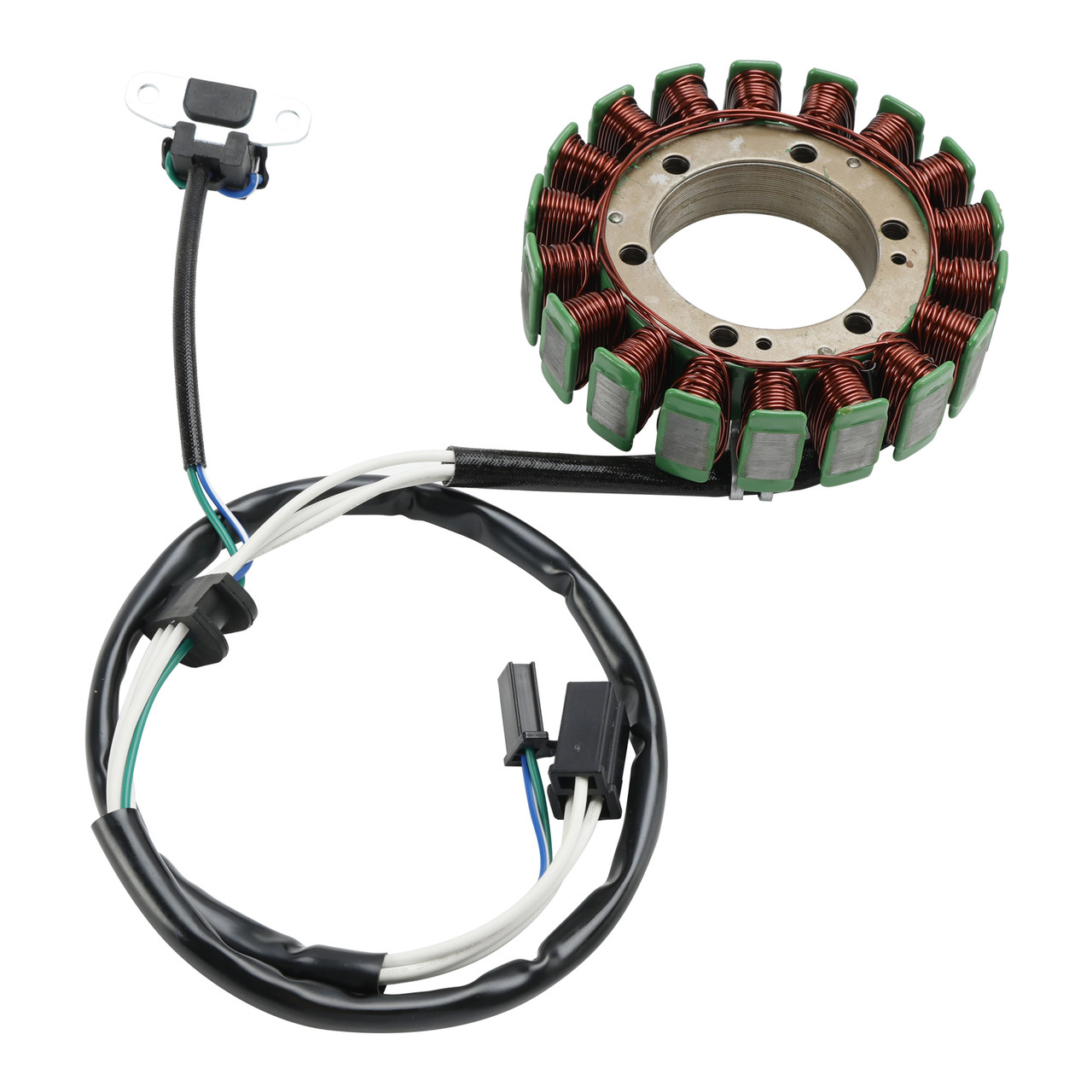

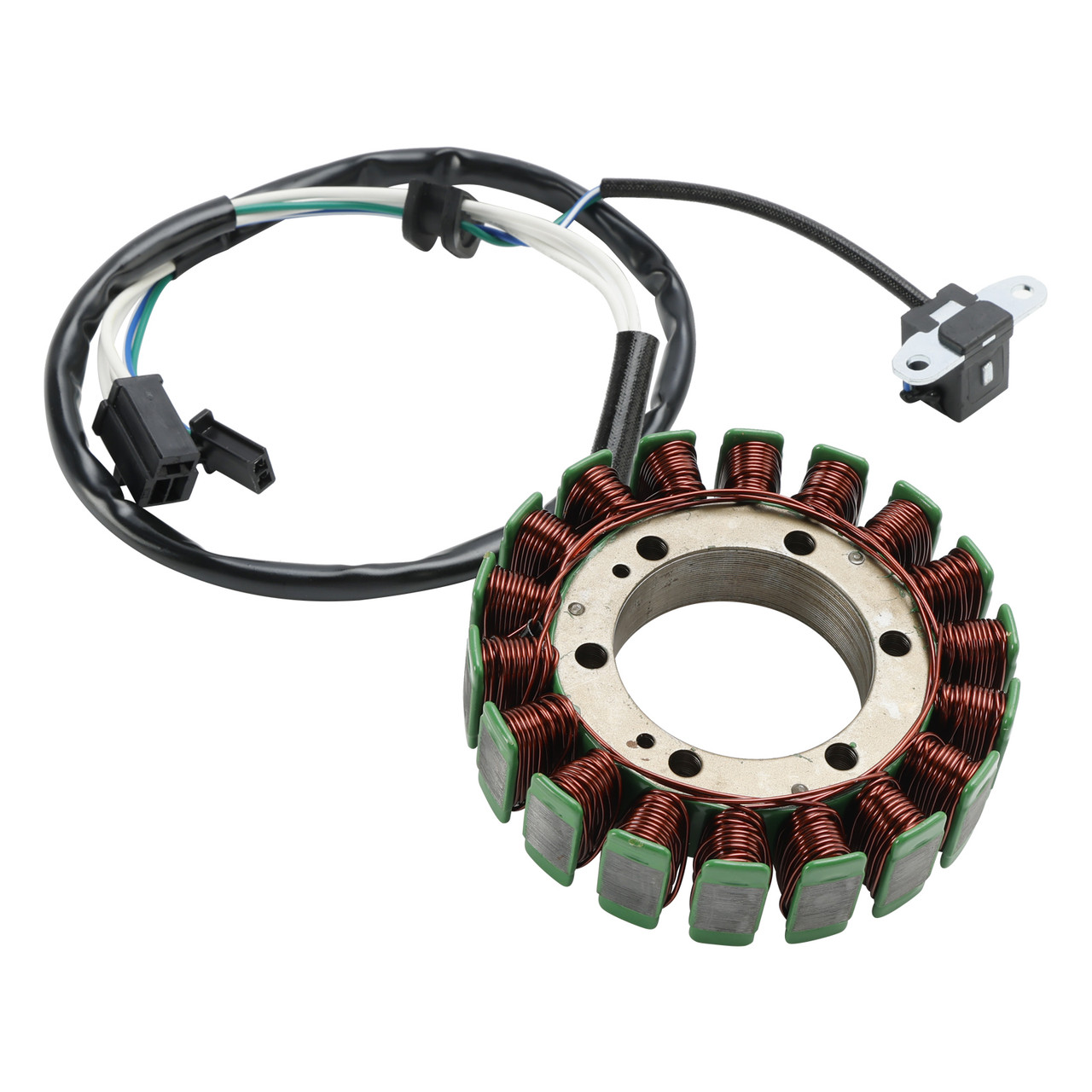

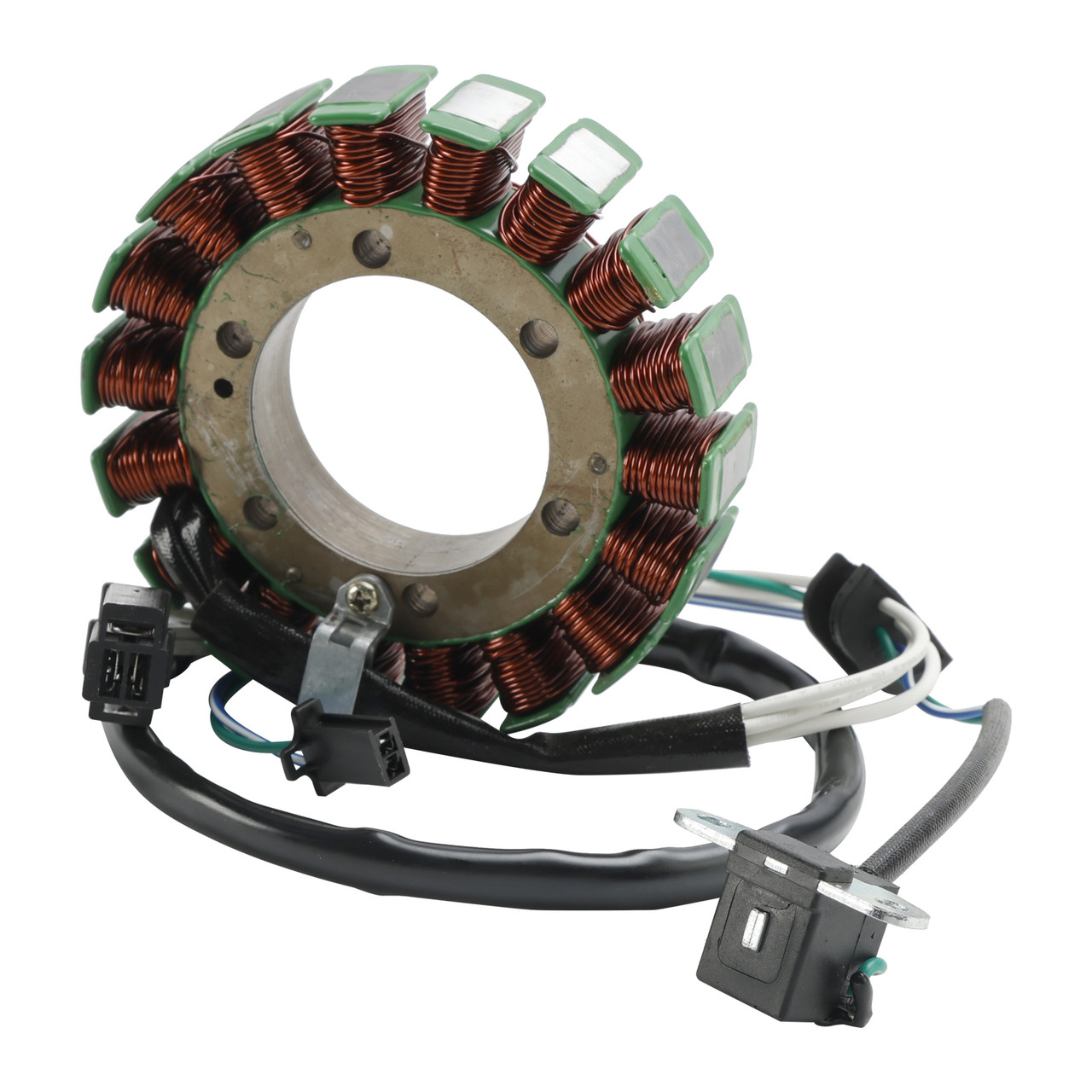

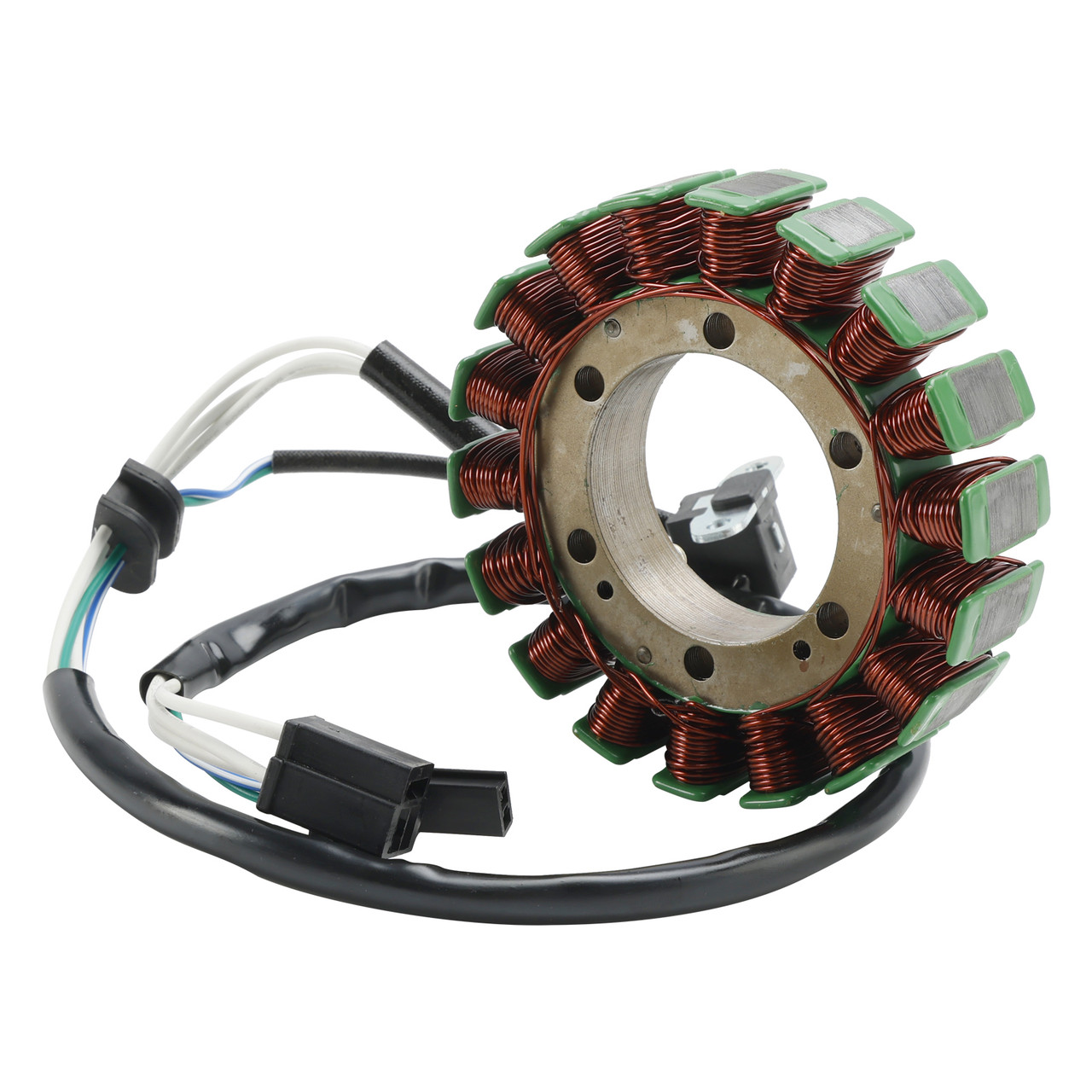

115mm Magneto Generator Stator Fit for Suzuki V-Strom 1000 2002-2010Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Dimensions :
Exterior diameter: 115mm
Interior diameter: 54mm
Pole's height: 30mm
Pole's width: 14.6mm
Replacement Part Number:
32101-06G00
Fits Make/Model/Year:
Fit for Suzuki DL1000 V-Strom 1000 2002-2010
There are two possible stator version of 2002-2012 V Strom 1000
Only for the stator version with an external diameter of 115 mm, not for the stator version with an external diameter of 118 mm.
Please check out your stator dimension before purchasing to avoid the wrong one.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 115mm Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
