Product Description
78.5mm Cylinder Piston Gasket Spark Plug Top End Rebuild Kit For Polaris Magnum 325 2x4 4x4 2000 2001 2002Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 78.5 mm x 68.0 mm stroke, 18mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 325cc
Bore Type: Standard Bore
Bore diameter: STD 78.5mm
Stroke: 68mm
Pin diameter: 18mm
Replacement Part Number:
Cylinder: 3086406, 3086883, 3086795
Cylinder Base Gasket: 3086407
Cylinder Head Gasket: 3086415
Exhaust Gasket: 3086421
Piston (Std): 3086800
Pin, Piston: 3089821
Piston Ring Set (Std): 3085774
Circlips, piston (2): 3084167
Fits Make/Model/Year:
Fit for Polaris Magnum 325 2000-2002
Fit for Polaris Trail Boss 325 2000-2002
Fit for Polaris Xpedition 325 2000-2002
The standard bore size should be 78mm, our cylinder bore size is 78.5mm, would be 0.5mm bigger than original, but the stroke is the same: 68mm, and with matching piston kit.
It should be fit, please don't purchase if you do mind it.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1x 78.5mm Cylinder
1x Piston

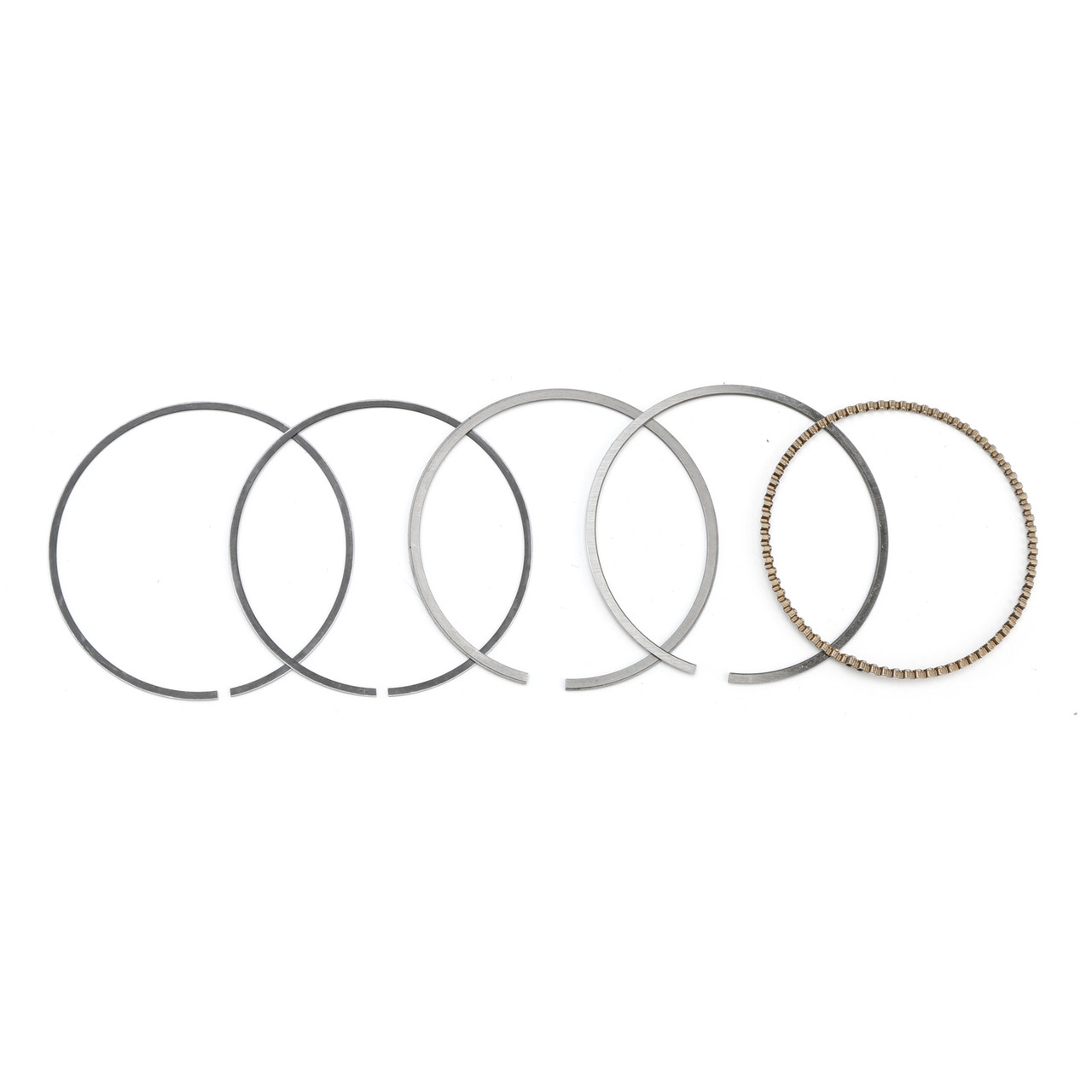

1x Piston Ring Set
1x 18mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust gasket
1x Spark Plug
(Comes exactly as pictured.)
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
