Product Description

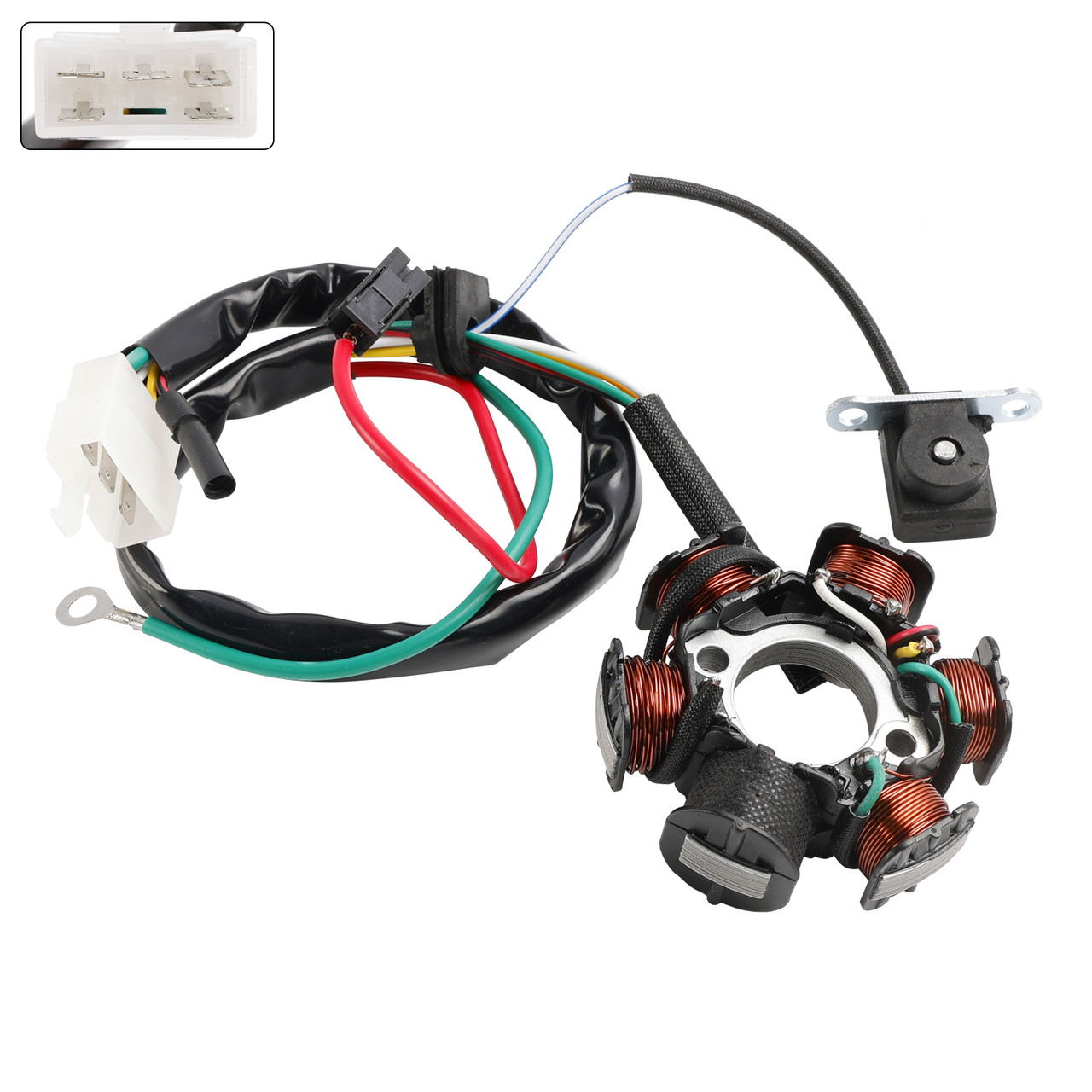

6 Coil Magneto Generator Stator Fit for Honda SJ 50 Bali 1993-2001 Dio 50 AF27 AF28Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
The stator has 6 coils, one of which is insulated.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil
other specifications:
Number of wires: 6
Number of plugs: 1x 5-Pin plug with 2 trailing wire connectors
Number of pins: 5 + 1 + 1 + 1
Number of fixation holes: 2
Number of poles: 6
Please compare the number of pins and plugs with the old part before purchasing.
Size:
Diameter of Central Hole (Smallest): 29 mm
Outer Diameter Of Stator Poles (Greatest): 83 mm
Mount hole spacing center to center: 41 mm
Replacement Part Number:
31120-GAV-702
Fits Make/Model/Year:
Fit for Honda SJ 50 Bali (AF32) 1993-2001
Fit for Honda Dio 50 AF18E AF27 AF28
Some of model notyear can not direct fit ,it will need to rewire, please make sure you can rewire/modify for your scooter,
please attension before you buy this parts.
Fit for Honda Dio 50 SP AF18 AF25 AF27 AF28
Fit for Honda Dio 50 ZX AF34 AF35
Fit for Honda Tact 50
Fit for Honda Vision 50
Fit for Honda Dio 50 1988-1992
Fit for Honda Dio 50 Fit 1990-1993
Fit for Honda Dio 50 G/GP 1989-1990
Fit for Honda Dio 50 SR 1990-1993
Fit for Honda Dio 50 ZX 1990-1993
Fit for Honda SA 50 Vision 1989-1996
Fit for Honda SRX 50 Shadow 1998-2001
Fit for Kymco CX 50 Curio 1995-1997
Fit for Kymco CX 50 Super 1994-1997
Fit for Kymco DJ 50 X
Fit for Kymco DJ 50 1998-2001
Fit for Kymco DJ 50 Refined 1993-2006
Fit for Kymco DJ 50 S 2011
Fit for Kymco K12 50 1995-2000
Fit for Kymco Scout 50 1995-1998
Fit for Kymco ZX 50 Fever 1995-1998
Fit for Kymco ZX 50 II Super Fever 1999-2003
Fit for Kymco ZX 50 Super Fever 2005-2007
Fit for Peugeot Buxy 50 1994-1997
Fit for Peugeot Buxy 50 RS 1996-1997
Fit for Peugeot Speedake 50 1995-1997
Fit for Peugeot Speedfight 1 50 AC 1997-1998
Fit for Peugeot Speedfight 1 50 AC 1999-2000
Fit for Peugeot Squab 50 1996-1997
Fit for Peugeot Trekker 50 Off Road 1998-2000
Fit for Peugeot Trekker 50 Road 1998-2000
Fit for Peugeot Trekker 50 Streetboard 1999-2000
Fit for SYM DD 50 2003-2008/ 2010
Fit for SYM Flash 50 1996-2000
Fit for SYM Free 50 1996-2000
Fit for SYM Pure 50 2003-2008
Fit for SYM Super Fancy 50 2T 1996-2006
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 6-Pole Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
