Product Description
10.1 inch 1024*600IPS Touch Version 1 channel with ADAS 5 Channels with BSD Function Support 1 Channel Sound and Light AlarmNote:
This product is PAL system. Before purchasing, please check whether the TV system of your country is PAL system in the following TV system. If you do not find your country in the following list, you can ask our customer service.
TV system:
PAL system: Indonesia, India, Jordan, Malaysia, Pakistan, Qatar, Singapore, Thailand, Turkey, Yemen, Austria, Belgium, Denmark, Finland, Greece, Iceland, Ireland, Italy, Malta, Netherlands, Germany, Norway, Portugal Romania, Spain, Sweden, United Kingdom, Switzerland, Algeria, Argentina, South Africa, Brazil, Jamaica, Australia, New Zealand, Iran, China (Hong Kong, Macau)
NTSC system: Israel, Japan, Korea, Philippines, Bolivia, Venezuela, Chile, Colombia, Mexico, Peru, Canada, United States, Ukraine, France, Russia, China (Taiwan)
Description:
1. Screen size: 10.1 inches 2.5D touch screen
2. Resolution: 1024*600
3. Power input: 9-36V wide voltage
4. Standard 1080P starlight night vision camera, Angle 170 degrees, waterproof
5. Operation mode, touch operation
6. 1 channel provides the ADAS function and 5 ch provide the BSD function
7. Supports 1ch audible and visual alarm
8. Storage format: H.265, operation mode
9. Loop recording: Supported
10.TF card: 16-256G(Class10) U1 high-speed card
11. Working temperature: -20¡æ to+70¡æ
12. Host size: 270*128*33mm Host weight: 752g
13. Main functions: six full HD images, full real-time monitoring, 1ch ADAS function, 5ch BSD function, 1ch sound and light alarm£¬loop video, easy installation, a variety of segmentation modes, aviation head interface, safe and reliable, wide range of application

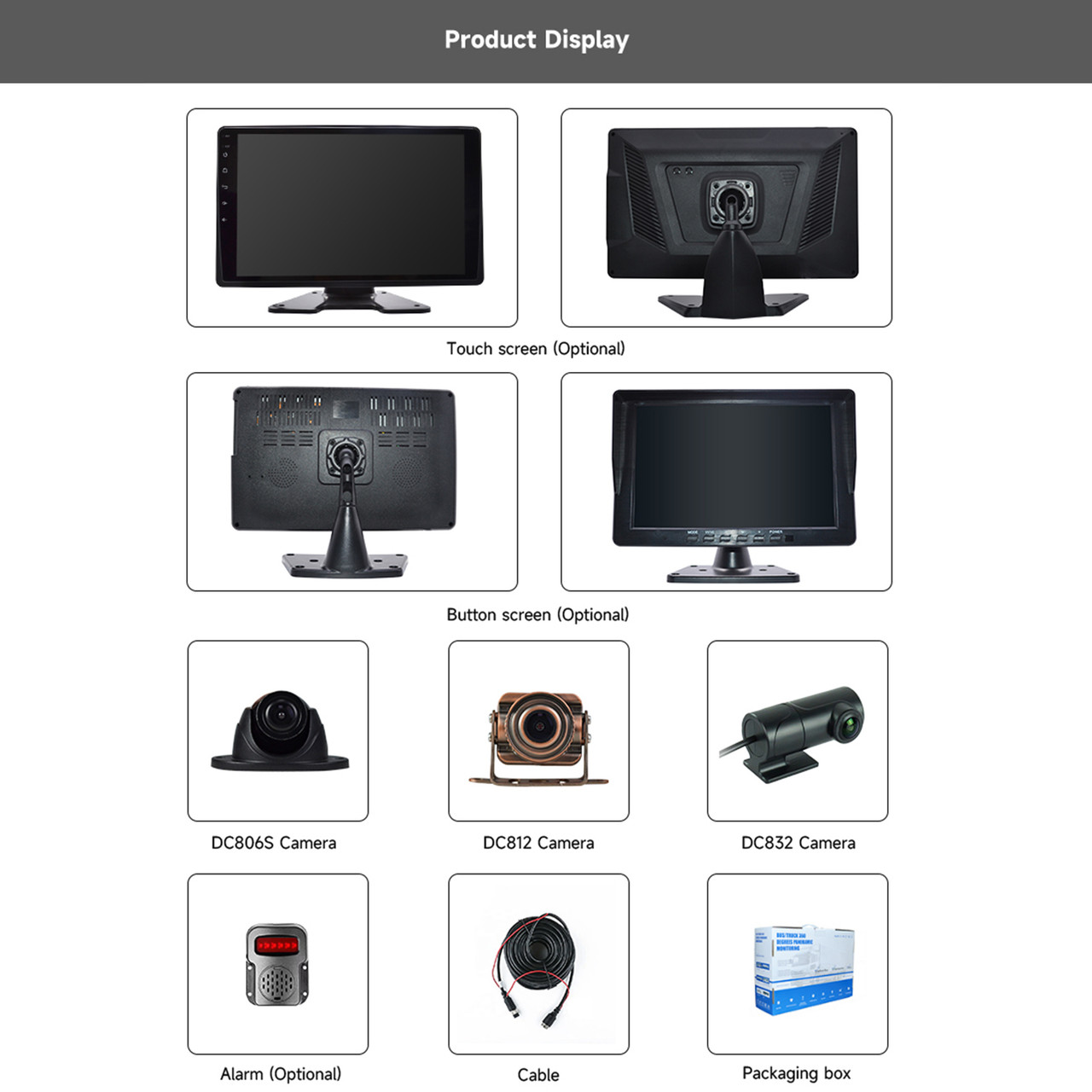

Package Included:
1 x 10.1 Inch Monitor
1 x DC832 HD Camera
2 x DC806S HD Camera
3 x DC812 HD Camera
1 x Sound and light alarm
5 x 5m Cable
1 x 15m Cable
1 x Power Harness
1 x Bracket & Screws
1 x 3M Sticker
1 x ManualDescription:
1. Screen size: 10.1 inches 2.5D touch screen
2. Resolution: 1024*600
3. Power input: 9-36V wide voltage
4. Standard 1080P starlight night vision camera, Angle 170 degrees, waterproof
5. Operation mode, touch operation
6. 1 channel provides the ADAS function and 5 ch provide the BSD function
7. Supports 1ch audible and visual alarm
8. Storage format: H.265, operation mode
9. Loop recording: Supported
10.TF card: 16-256G(Class10) U1 high-speed card
11. Working temperature: -20¡æ to+70¡æ
12. Host size: 270*128*33mm Host weight: 752g
13. Main functions: six full HD images, full real-time monitoring, 1ch ADAS function, 5ch BSD function, 1ch sound and light alarm£¬loop video, easy installation, a variety of segmentation modes, aviation head interface, safe and reliable, wide range of application
Package Included:
1 x 10.1 Inch Monitor
1 x DC832 HD Camera
2 x DC806S HD Camera
3 x DC812 HD Camera
1 x Sound and light alarm
5 x 5m Cable
1 x 15m Cable
1 x Power Harness
1 x Bracket & Screws
1 x 3M Sticker
1 x Manual
